478

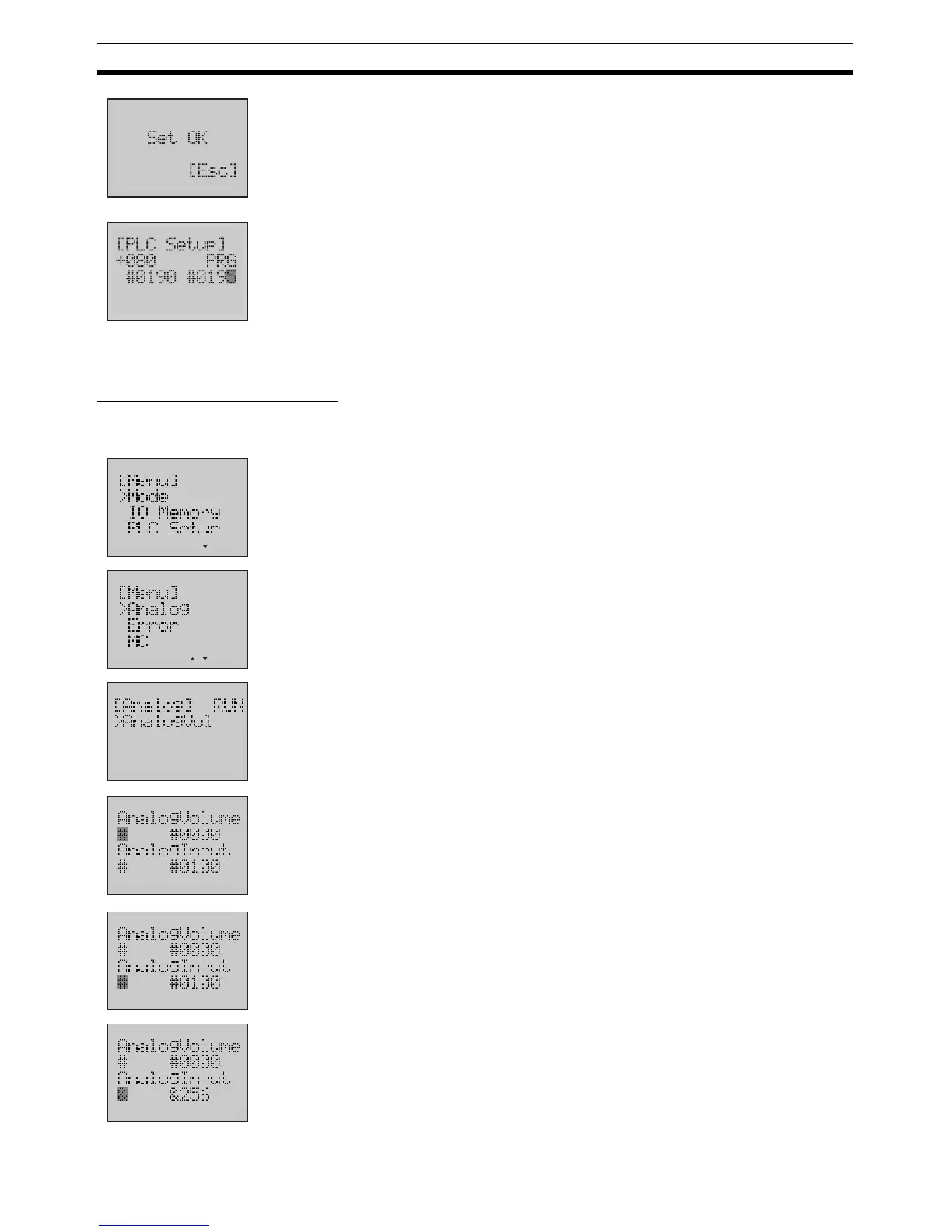

LCD Option Board Function Section 8-6
8. Press the OK button to save the setting.
9. Press the ESC or OK button to return to the PLC Setup Screen.
8-6-5 Analog
Displaying Analog Settings
Example Monitor the external analog setting input with unsigned decimal number.
1,2,3...
1. Switch to the Setup Mode.
2. Press the Down button to select Analog.
3. Press the OK button to enter the Analog menu.
4. Press the OK button to enter the Monitor Screen of analog setting.
Line 2 will display the value from the analog adjuster.
Line 4 will display the external analog setting input value.
The display format on line 2 will be flashing.
5. Use the Forward button to move the column cursor to the display format
position on line 4.
6. Press the Down or Up button to change the display format to &.
To Next Page
