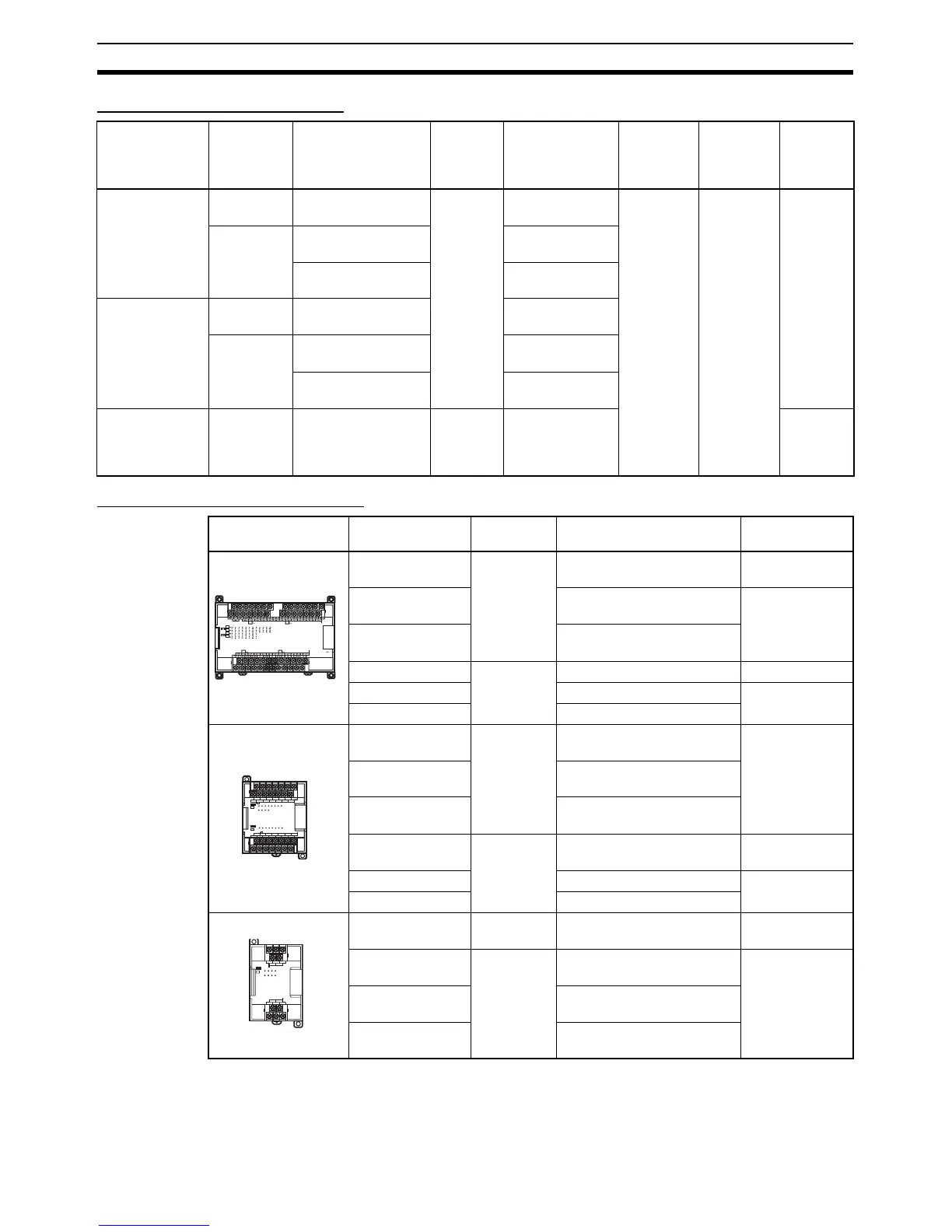

System Configuration Section 1-2
Maximum Normal I/O Points
CP-series Expansion I/O Units
Type Power
supply
voltage
Model Built-in
normal
inputs
Built-in normal
outputs
Max.
number of
Expansion
I/O Units
Max.
number of
expansion
points
Max. total
I/O points
X
(Basic CPU
Units)
100 to
240 VAC
CP1H-X40DR-A 24 DC
inputs
16 relay outputs 7 280
(7 Units ×
40 points)
320
24 VDC CP1H-X40DT-D 16 transistor out-
puts (sinking)
CP1H-X40DT1-D 16 transistor out-
puts (sourcing)
XA
(CPU Units with
built-in analog
I/O terminals)
100 to
240 VAC
CP1H-XA40DR-A 16 relay outputs
24 VDC CP1H-XA40DT-D 16 transistor out-
puts (sinking)
CP1H-XA40DT1-D 16 transistor out-
puts (sourcing)
Y
(CPU Unit with
dedicated pulse
I/O terminals)
24 VDC CP1H-Y20DT-D 12 DC
inputs
8 transistor out-
puts (sinking)
300
Appearance Model Normal
inputs
Normal outputs Weight
CP1W-40EDR
CPM1A-40EDR
24 VDC:
24 inputs
16 relay outputs 380 g max.
CP1W-40EDT
CPM1A-40EDT
16 transistor outputs (sinking)
320 g max.
CP1W-40EDT1
CPM1A-40EDT1
16 transistor outputs (sourcing)
CP1W-32ER None 32 relay outputs 465 g max.
CP1W-32ET
32 transistor outputs (sinking)
325 g max.
CP1W-32ET1
32 transistor outputs (sourcing)
CP1W-20EDR1
CPM1A-20EDR1
24 VDC:
12 inputs
8 relay outputs 300 g max.
CP1W-20EDT
CPM1A-20EDT
8 transistor outputs (sinking)
CP1W-20EDT1
CPM1A-20EDT1
8 transistor outputs (sourcing)
CP1W-16ER
CPM1A-16ER
None 16 relay outputs 280 g max.
CP1W-16ET
16 transistor outputs (sinking)
225 g max.
CP1W-16ET1
16 transistor outputs (sourcing)
CP1W-8ED
CPM1A-8ED
24 VDC:
8 inputs
None 200 g max.
CP1W-8ER
CPM1A-8ER
None 8 relay outputs 250 g max.
CP1W-8ET
CPM1A-8ET
8 transistor outputs (sinking)
CP1W-8ET1
CPM1A-8ET1
8 transistor outputs (sinking)
IN
CH
CH
OUT
00 01 02 03
08 09 10 11
04 05 06 07
00 01 02 03 04 05 06 07
CH
CH
EXP
COM 01 03 05 07 09 11
NC 00 02 04 06 08 10
NC 00 01 02 04 05 07
NC COM COM COM 03 COM 06
IN
00 02
01COM 03
COM 05 07
04 06
CH
00 01 02 03
08 09 10 11
EXP
To Next Page
