493
LCD Option Board Function Section 8-6

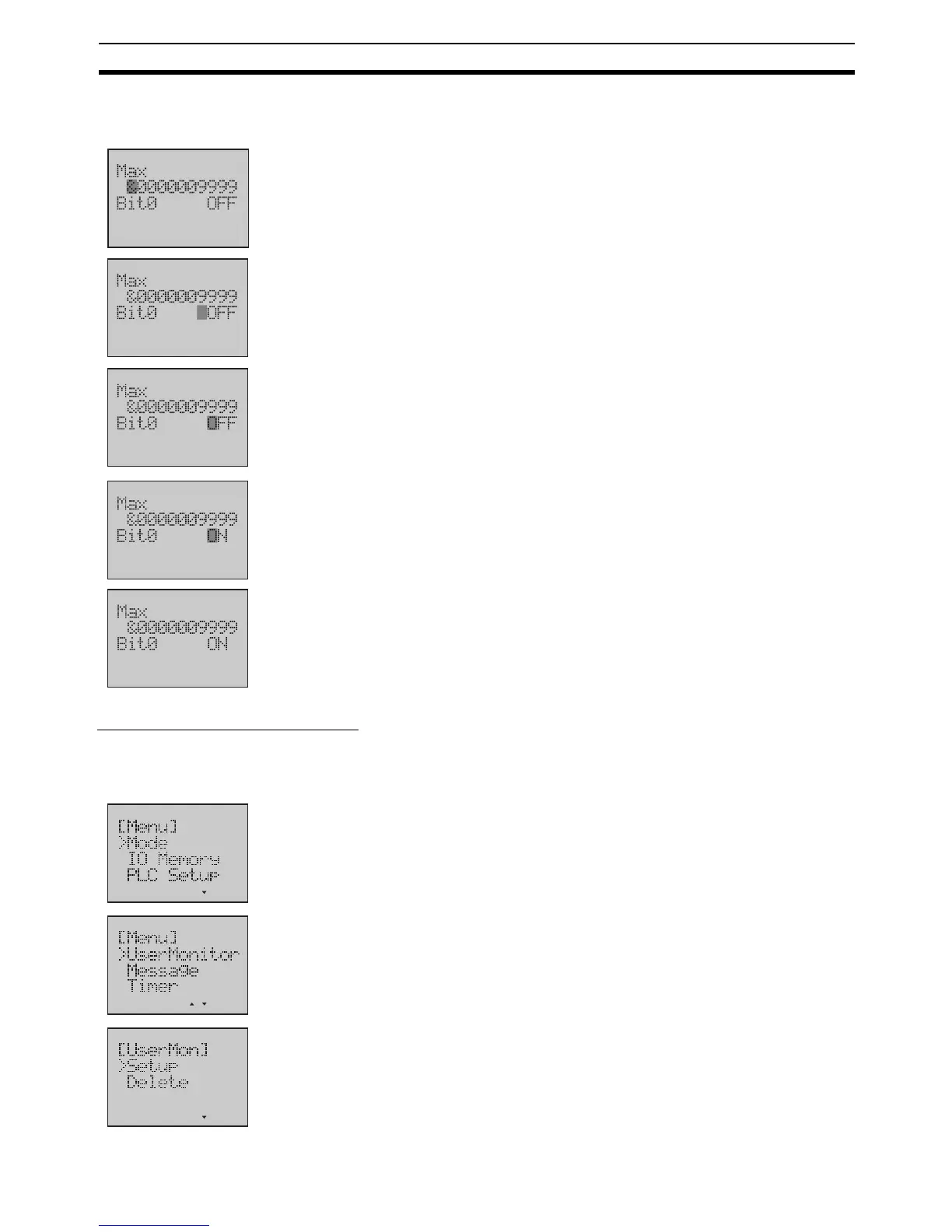

Example 2 Change bit0 from OFF to ON.
1,2,3...
1. Press the Forward + OK button simultaneously to enter the Data Change
Screen.
2. Use the Down button to move the cursor to line 2.
3. Use the Forward button to move the column cursor to the bit state position.
4. Press the Down or Up button to change the bit state to ON.
5. Press the OK button to save the setting.
Press the ESC button to return to the User Monitor Screen.
Deleting User Monitor Screen
Example Delete the User Monitor Screen 2.
1,2,3...
1. Switch to the Setup Mode.
2. Press the Down button to select UserMonitor.
3. Press the OK button to enter the User Monitor menu.
To Next Page
