Omron CP1H CPU User Manual

496
LCD Option Board Function Section 8-6

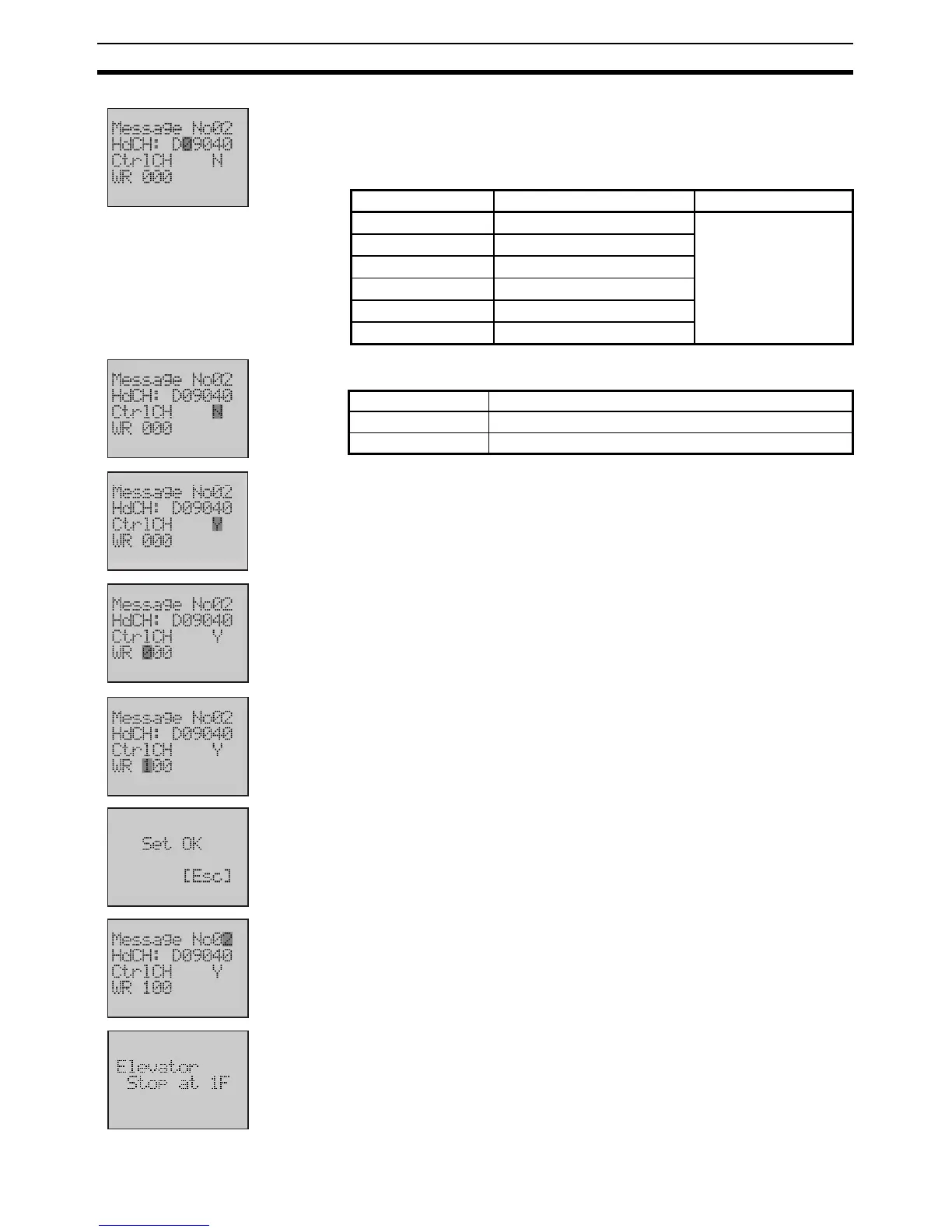

6. Use the Forward button to move the column cursor to the position of lead-
ing word address.
The present setting is the default address.
The following table shows the default address and the setting range for
each screen when the leading word address is D09000.
7.
Use the Forward button to move the column cursor to the message flag position.
Select the message flag in the following table.
8. Press the Up button to select the message flag Y.
The setting is available for all the screens.
9. Use the Forward button to move the column cursor to the position of word
address.
The present setting is the default address. The range of the address is 000
to 511.
10. Use the Up button to change the word address to 100.
11. Press the OK button to save the setting.
12. Press the ESC or OK button to return to the Message Setup Screen.
13. Press the ESC button three times to return to the Monitor Mode.
Switch to the Message Screen 2 when control bit W100.01 is ON.
Screen No. Default address Range
01 09000 to 09035
00000 to 32732
02 09040 to 09075
03 09080 to 09115
04 09120 to 09155
……
16 09600 to 09635
Message flag Meaning
Y Message Screen in use
N Message Screen not in use
