LCD Option Board Function Section 8-6

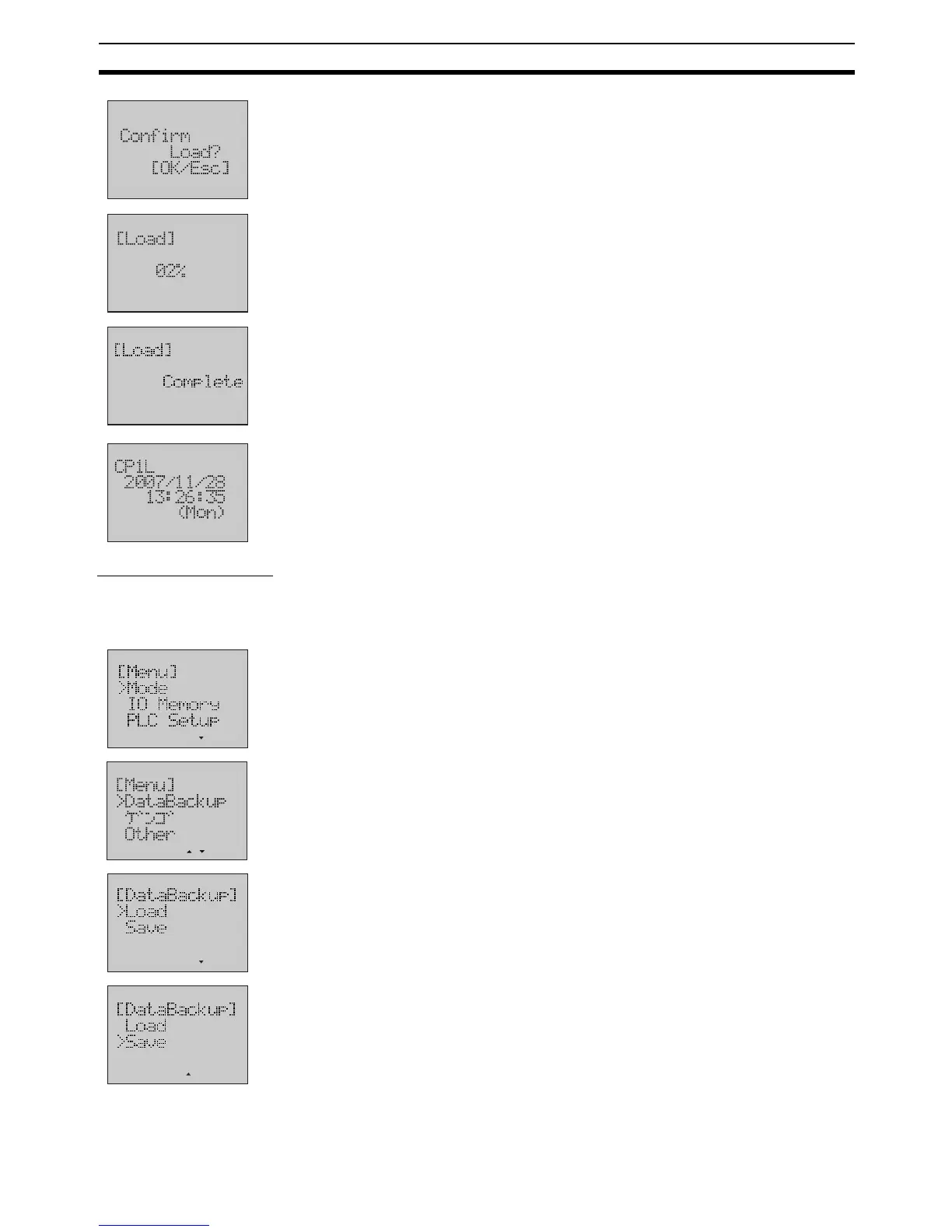

6. Press the OK button to display a load confirming screen.
7. Press the OK button to start loading.
A rate of loading will be displayed in the screen.
8. When the rate comes up to 100%, the loading is finished. Then it will dis-
play a complete screen.
9. Press the ESC or OK button to restart the LCD Option Board.
Saving User Setting
Example Save user settings to DM memory area.
1,2,3...
1. Switch to the Setup Mode.
2. Press the Down button to select DataBackup.
3. Press the OK button to enter the Data Backup menu.
4. Press the Down button to select Save.
