Sample Application Section 9-12

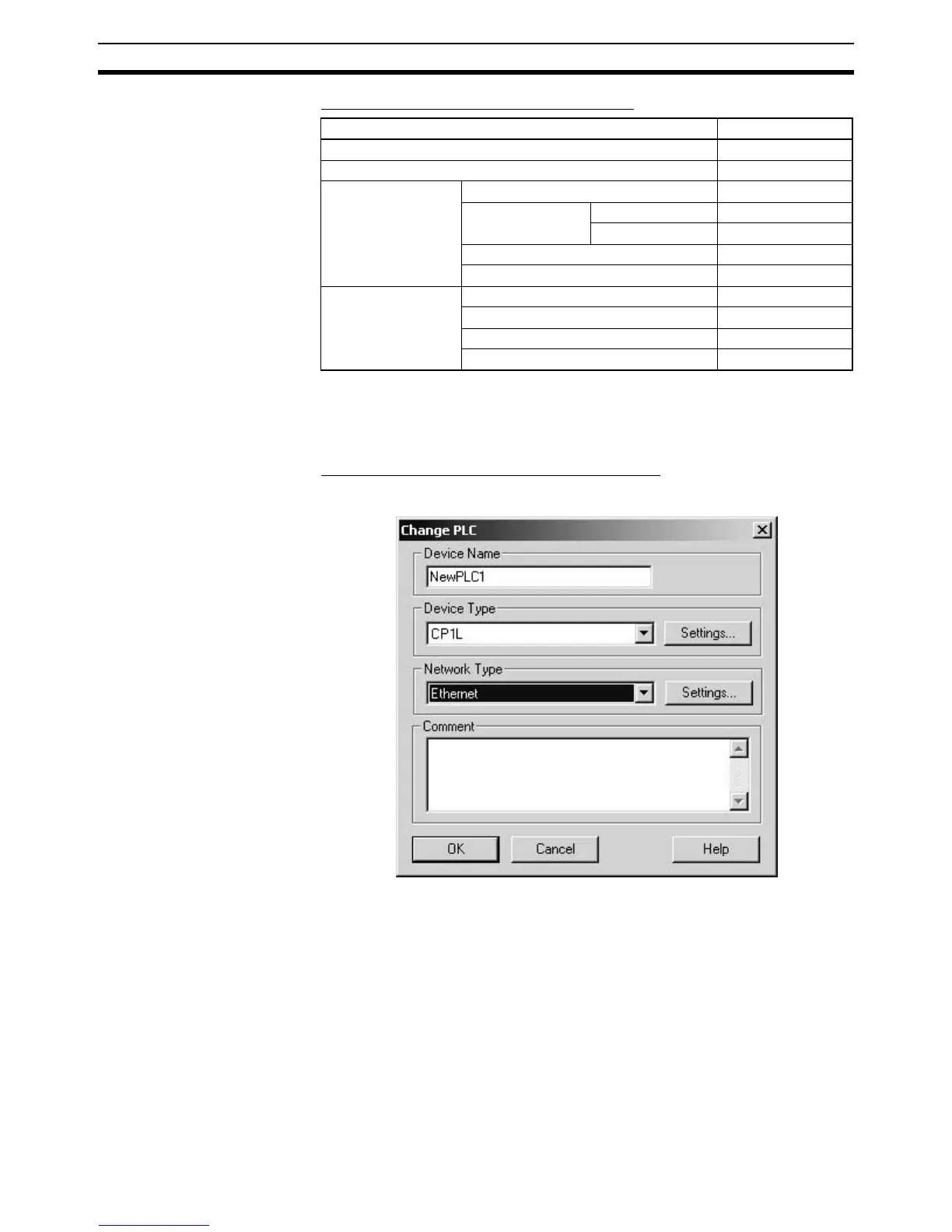

CX-Programmer’s Change PLC Dialog Box
Note Limited by the CP1W-CIF41 inner bus protocol (Toolbus), the frame length
and response monitor time are different from the existing Ethernet unit.
Inputs to the CX-Programmer’s Setup Window
Change PLC Settings
Item Setting
PLC name PLC1
Network classification Ethernet
Network Tab FINS transmission source address 0
FINS destination Network number 0
Node address 2
Frame length 1,004bytes
Response monitor time 5 seconds
Driver Tab Workstation node address 1
Automatic generation method Not selected
Ethernet Option Board IP address 192.168.250.2
Port number 9600
To Next Page
