26
Connecting Programming Devices Section 1-3
USB Connection
Procedure
The procedure for first connecting a computer to the CP1H peripheral USB
port is described below.
It is assumed that the Support Software has already been installed in the
computer.
Installing the USB Driver The installation procedure depends on the OS of the computer. The following
procedures are for Windows XP and Windows 2000.
Windows XP
Turn ON the power supply to the CP1H, and connect USB cable between the
USB port of the computer and the peripheral USB port of the CP1H.

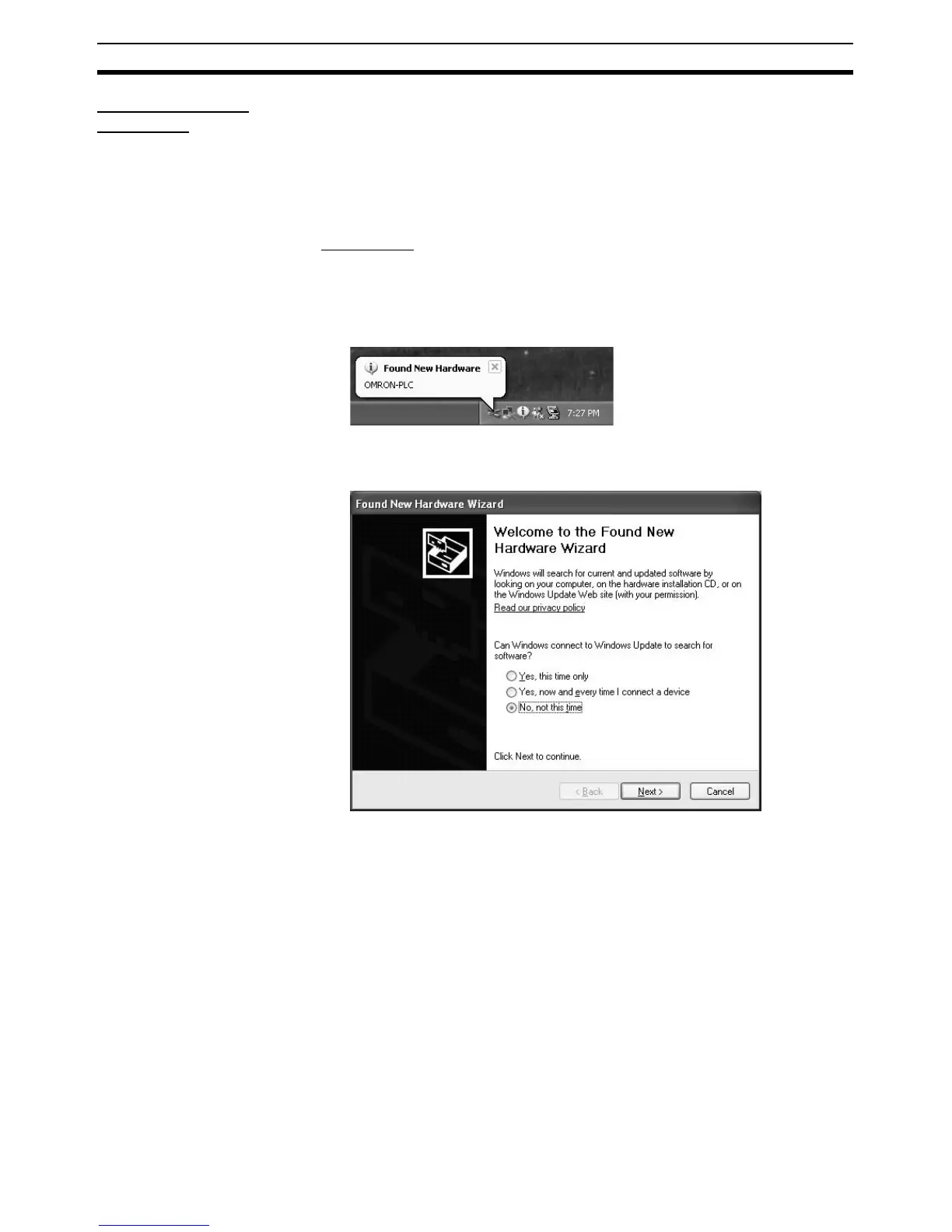

After the cable has been connected, the computer will automatically recognize
the device and the following message will be displayed.
1,2,3... 1. If the following window appears, select the No, not this time Option and
then click the Next Button. This window is not always displayed.
To Next Page
