Omron CX-INTEGRATOR - V1.1 User Manual

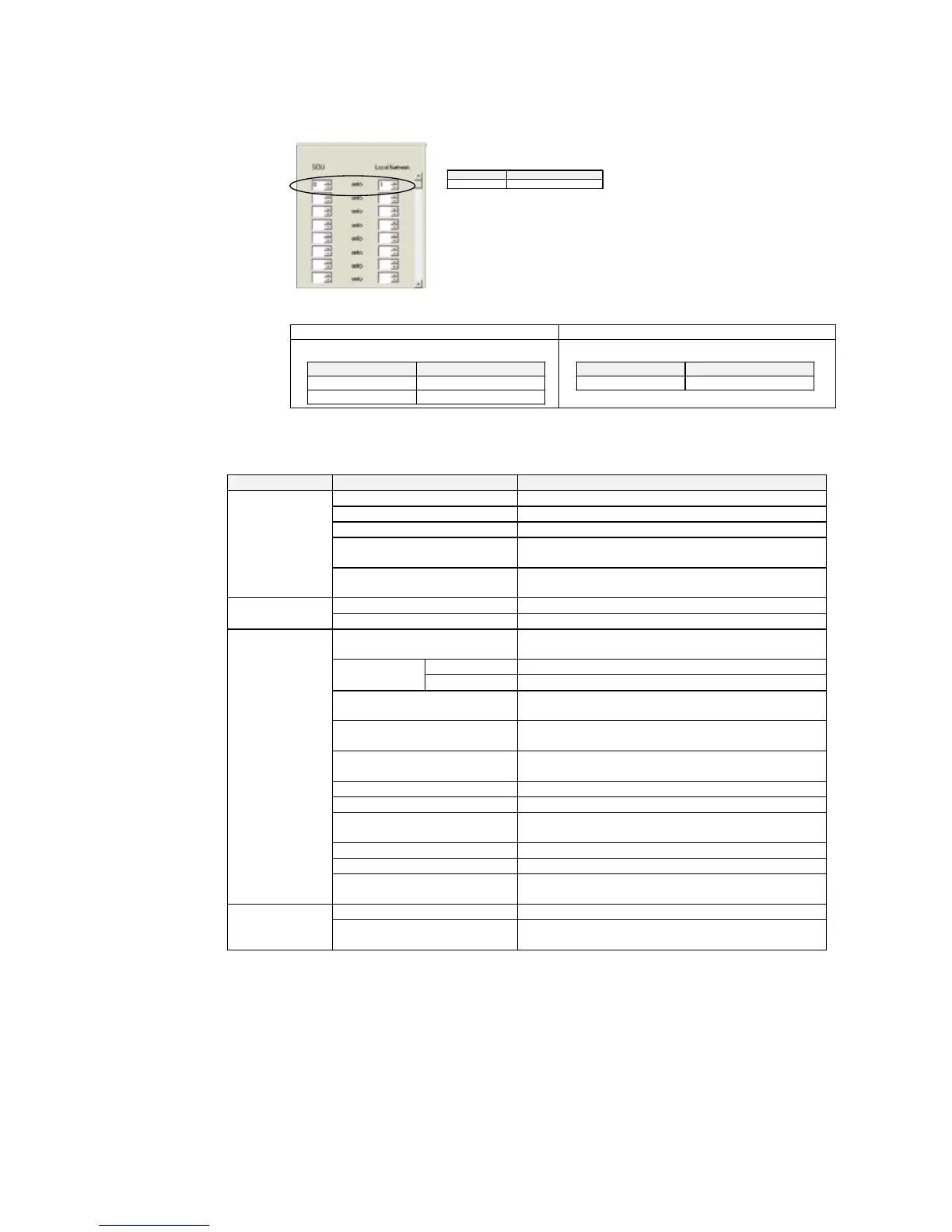

3-2 Setting the Routing Tables
3-2-2 Creating the FINS Local Routing Tables
4. Input the corresponding unit number and network address and click the OK Button.
For PLC1, input unit number 0 and local network address 1.
PLC1 Local Network Table
Unit number Local network address
0 1
Input the appropriate settings in the local network tables for PLC2 and PLC3, as
shown below.
PLC2 PLC3
Local Network Table Local Network Table
Unit number Local network address
0 2
Unit number Local network address
4 1
5 2
Menu Items in the PLC Routing Table Window
Main menu Sub-menu/command Functions
New Initializes (clears) the FINS local routing table.
Open Local Routing Table File Opens a FINS local routing table file (.rtg extension).
Save Local Routing Table File Saves a FINS local routing table file (.rtg extension).
Open Network Routing Table
File
Opens a FINS network routing table file (.rt3
extension).
File
Save Network Routing Table
File
Saves a FINS network routing table file (.rt3
extension).
Add Remote Network Adds a relay network table. Edit
Add SIOU Adds a local network table.
Always On Top The PLC Routing Dialog Box will always be
displayed in the front of the windows.
Zoom Out Reduces the Main View display. Main View
Zoom In Enlarges the Main View display.
Transfer to PLC Transfers the edited routing tables to the PLC that is
directly connected online.
Transfer from PLC Reads the edited routing tables from the PLC that is
directly connected online.
Delete Routing Table Deletes the routing tables in the registered PLC that
is directly connected online.
Active Routing Table Enables the routing tables. (See note.)
Deactive Routing Table Disables the routing tables. (See note.)
Verify Routing Table Compares the edited routing tables to the routing
tables in the PLC that is directly connected online.
Check Routing Table for errors Checks the created routing tables.
Automatic Network Search (Cannot be used.)
Options
Show File Information Inputs the author, title, and comment information to
be saved in the routing table file.
Help Topics Displays help. Help
About Displays the Routing Table Component's version
information.
Note: The Enable/Disable function is supported by C-series PLCs (Controller Link) only.
3-11
