5-2 Ping Test
5-2-1 Overview
5-2 Ping Test
5-2-1 Overview

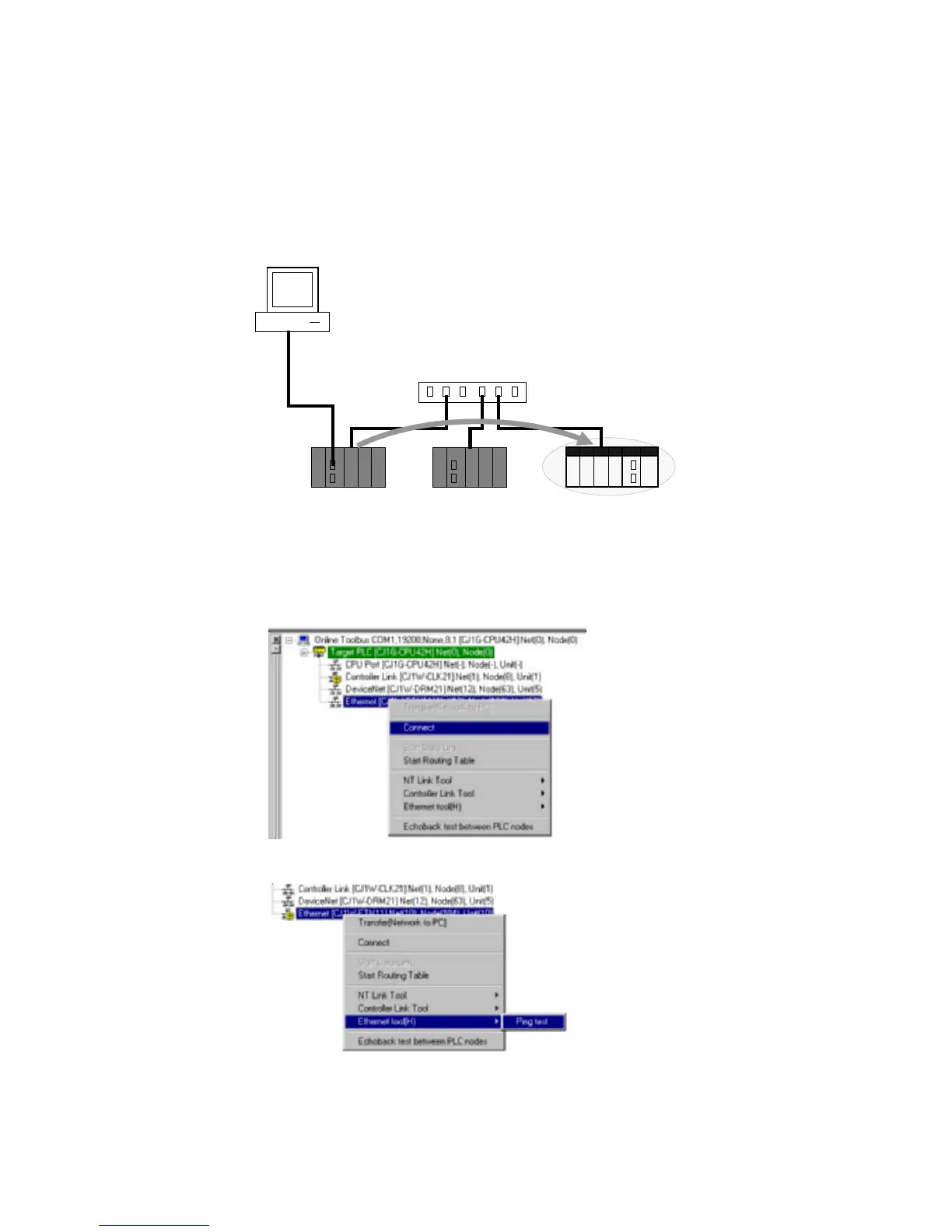

The connection status of a target PLC can be checked by executing a ping test from a
PLC node connected on an Ethernet network. In the example shown here, PLC1 is
serially connected and a ping test is executed to check whether PLC3 is connected to
the Ethernet network.
Computer (CX-Integrator)
CJ-series CJ-series PLC1
IP address: 192.168.200.104
Network address: 10
Node address: 104
CJ-series PLC2
IP address: 192.168.200.105
Network address: 10
Node address: 105
CS-series PLC3
IP address: 192.168.200.185
Network address: 1
Node address: 185
Example:
HUB
Ethernet
PING Test 192.168.200.185
PING
Toolbus
5-2-2 Procedure
1. After PLC1 is serially connected by an automatic online connection, right-click the
Ethernet Unit and select Connect.
2. After connecting to Ethernet, right-click the Ethernet Unit in the Online Connection
Information Window and select Ethernet tool - Ping test.
5-4
