5-2 Ping Test

5-2-2 Procedure

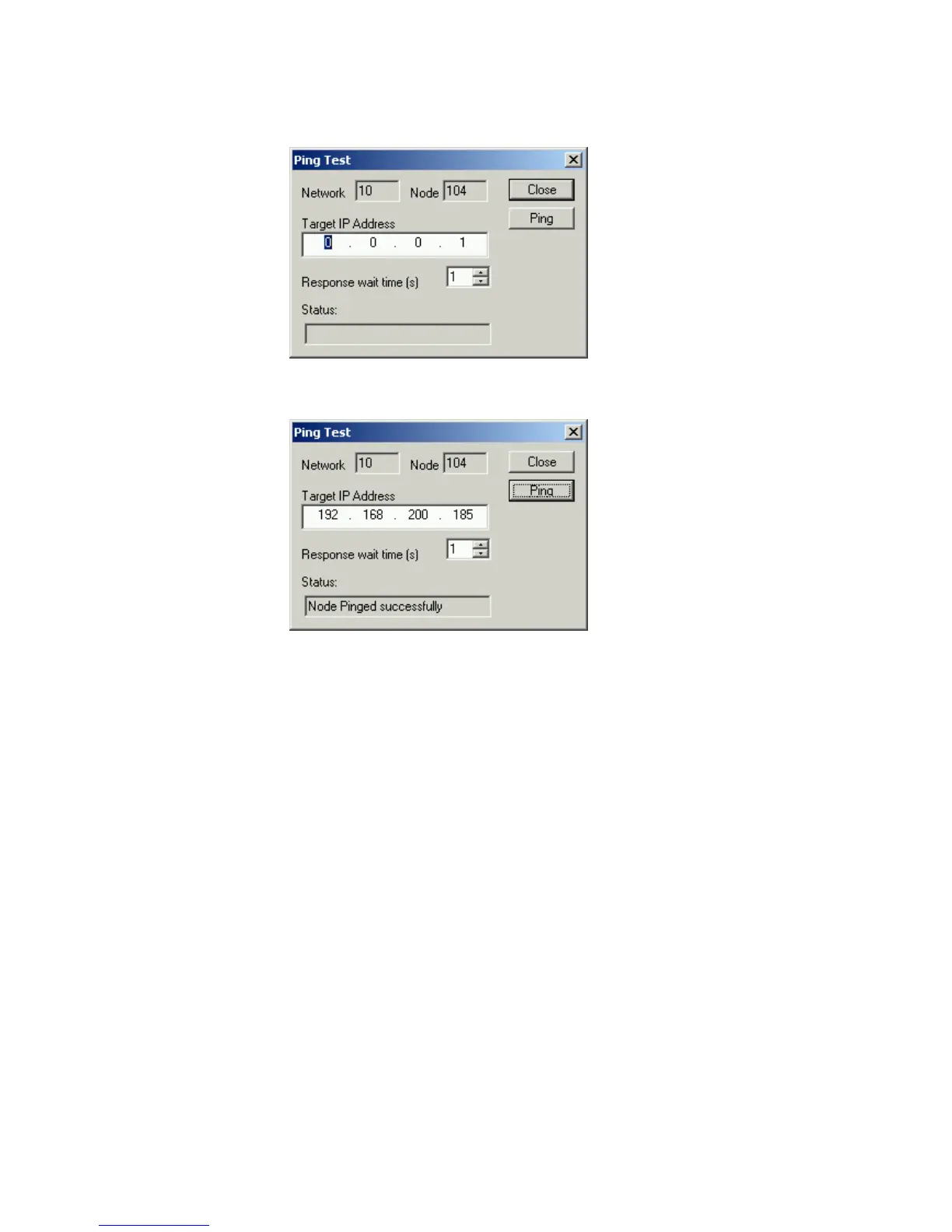

3. The Ping Test Dialog Box will be displayed. Input 192.168.200.185 as the target IP

address, and then click the Ping Button.

4. The test result will be displayed in the Status field. In this case, “Node pinged

successfully” is displayed to confirm that PLC3 is connected to the Ethernet

network.

5-5
