Component - Parameter - Edit
The user can individually edit allocations for remote I/O communications and make
advanced settings, such as the communication cycle time and connection settings.
Possible setting items vary with the master model.
The following description provides information on editing individual parameters. Refer
to 6-8 Manual I/O Allocations and 6-9 Advanced Settings (Connection, Communication
Cycle Time, Slave Function Settings, Etc.) for further information on editing
parameters manually.
To edit the parameters, use the following procedure.
1. Select the device for which parameters are to be edited.
2. Select Component - Parameter -Edit.
3. The Edit Device Parameters Dialog Box will be displayed.

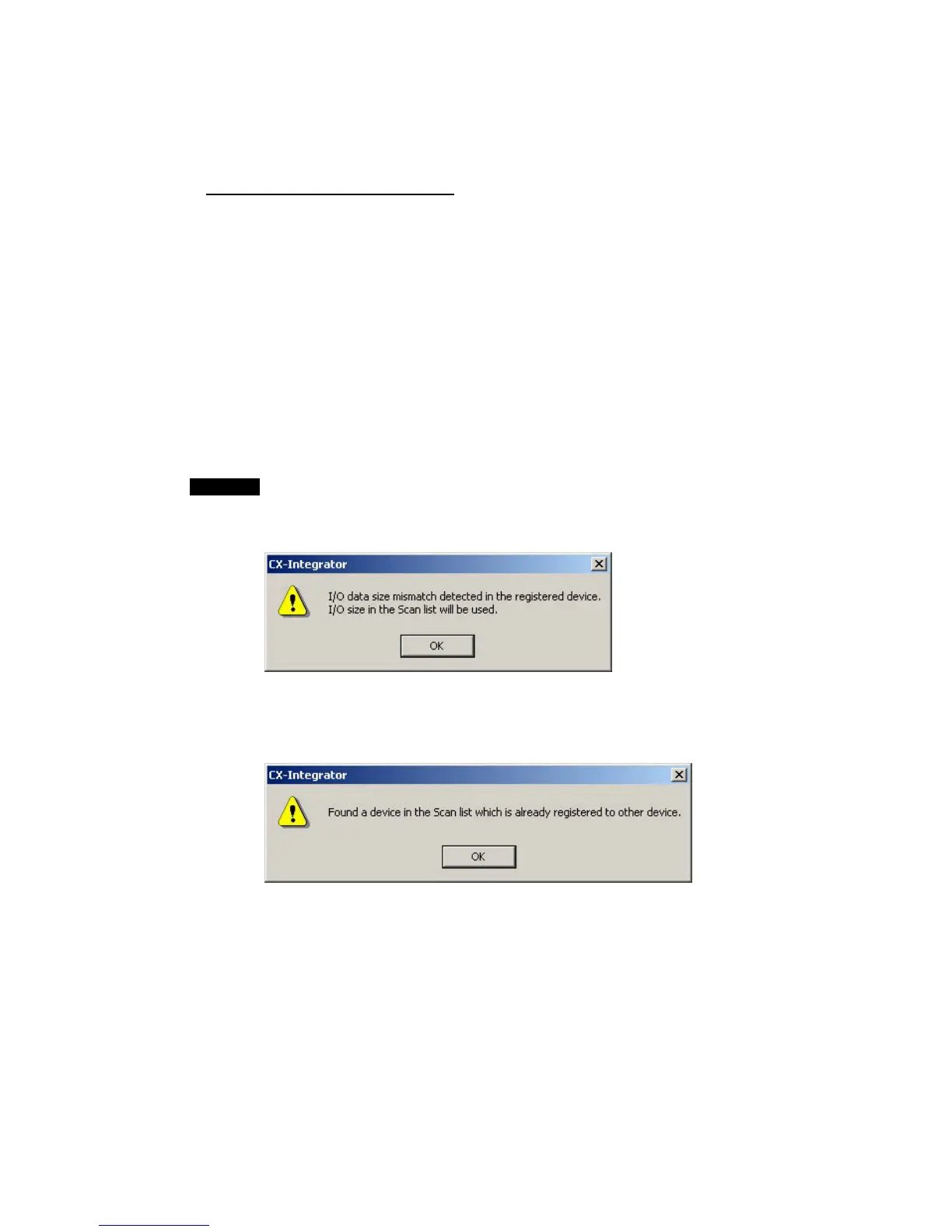

Note
• If the I/O size of the device displayed in the Network Configuration Window does not
coincide with the I/O data size of the device registered with the scan list, the following
warning dialog will be displayed along with the Edit Device Parameters Window. In this
case, the I/O size in the scan list will take priority.
If an EDS file has not been installed in the slave, obtain the EDS file and install it.
Also, set the correct I/O size in all slaves that require changes in the I/O size.
• If the slave device registered with the scan list has already been registered with
another master, the following warning will be displayed along with the Edit Device
Parameters Dialog Box.
Revise the slaves registered in the scan list.
6-21
