6-15 Using General-purpose Tools to Set Devices
6-15-1 Setting Device Parameters with Class Instances
6-15 Using General-purpose Tools to Set Devices
This section explains how to set the device parameters with no corresponding EDS
files or set the node addresses or baud rates through the network.
6-15-1 Setting Device Parameters with Class Instances
Tools - DeviceNet Tool - Setup Parameters
Device parameters for devices that have no corresponding EDS files can be set by
specifying the following items.
• Service code
•
Class (object class), instance (class instance) and attribute (instance attribute)
Before setting the device parameters, it is also necessary to obtain the data setting
information on attributes other than the above from the manufacturer of the device.
Unless all the information is known, the device parameters cannot be set.
Use the following procedure to set the device parameters.
1. Place the CX-Integrator online.
2. Select Tools - DeviceNet Tool - Setup Parameters.

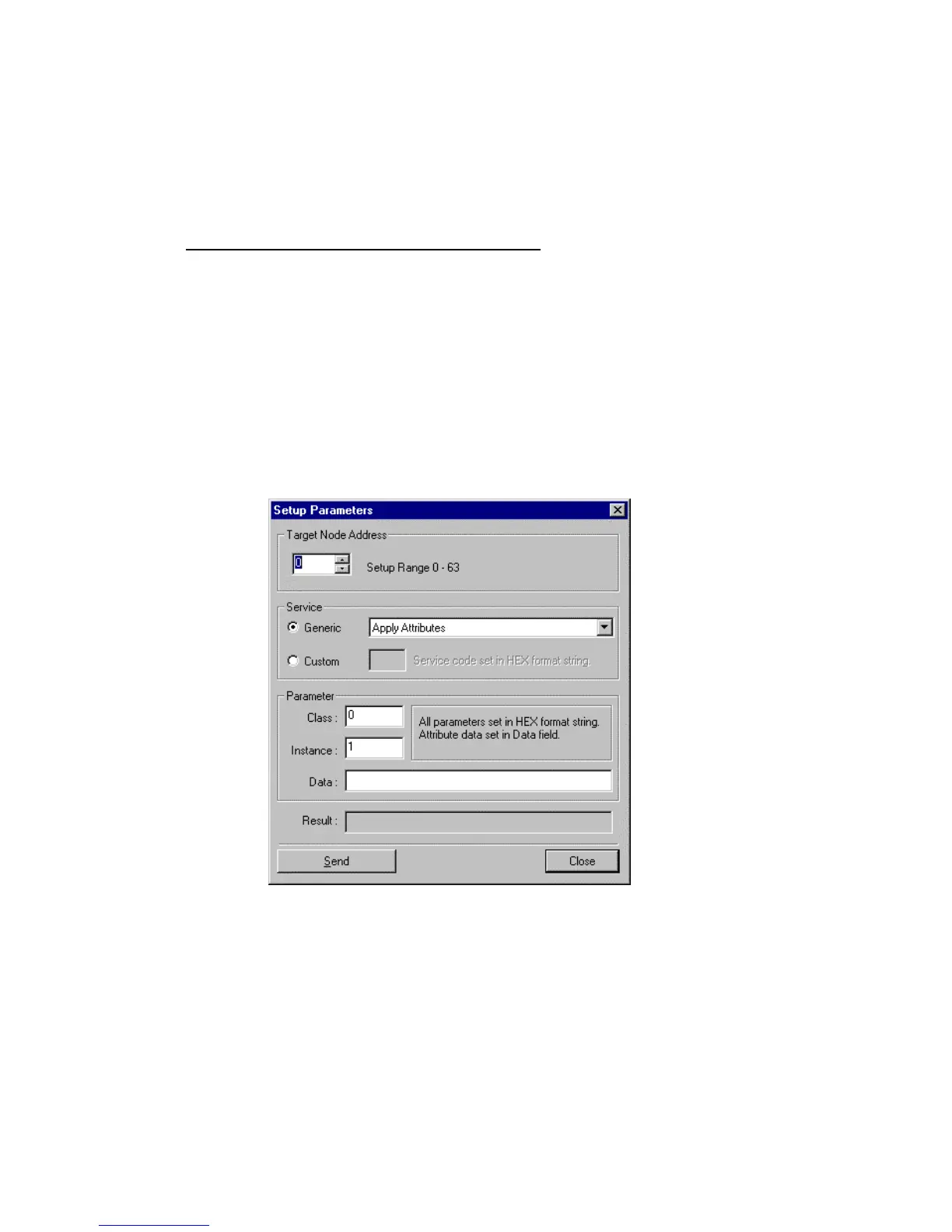

The following dialog box will be displayed.
3. Set the Target Node Address to the node address of the device.
6-70
