6-4 Setting Master Properties
6-4-1 CS1W-DRM21(-V1) and CJ1W-DRM21
6-4 Setting Master Properties
This section describes how to set properties for OMRON masters. The Master Unit is
right-clicked and Property is selected from the popup menu.
6-4-1 CS1W-DRM21(-V1) and CJ1W-DRM21
To set the master and slave functions, use the following procedure.

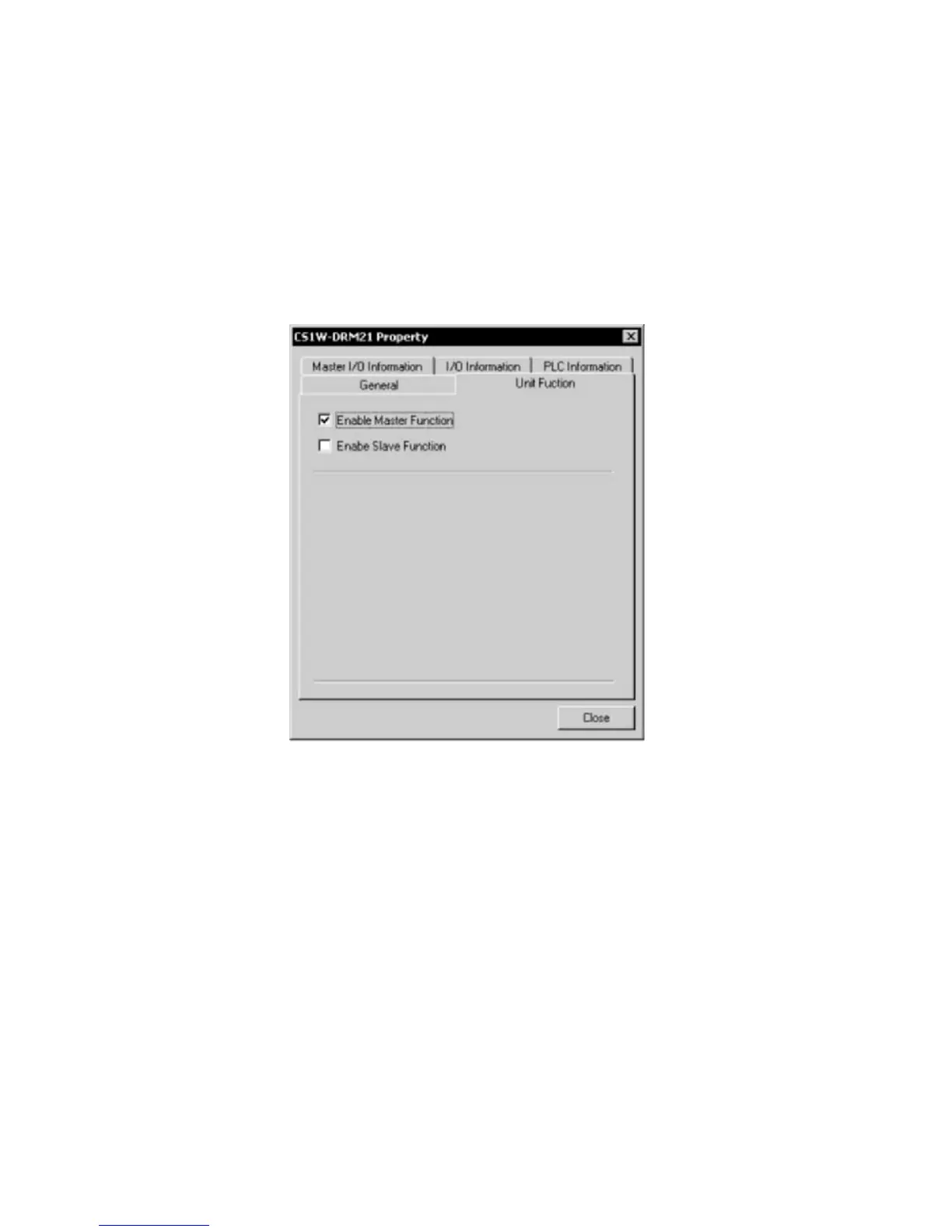

1. Right-click the master from the Network Configuration Window on the right and
select View - Property from the popup menu. The following dialog box will be
displayed.
2. Click the Unit Function Tab.
3. Select Enable Master Function and/or Enable Slave Function.
6-13
