6-6 Parameter Wizard
6-6 Parameter Wizard
Component - Parameter - Wizard
• The Parameter Wizard is an interactive function making it possible to allocate I/O with
ease.
• This function ensures easy I/O allocations in order of node addresses beginning with
block 1.
When block 1 is full, the remaining I/O will be allocated to block 2. Each block consists
of a maximum of 100 words.
Note
After I/O allocations are made with the Parameter Wizard, node addresses or I/O
allocations can be changed by editing the parameters individually.
The following procedure uses the Parameter Wizard with the
CS1W-DRM21(-V1)/CJ1W-DRM21 as an example. The same method can be used for
the CVM1-DRM21-V1 and C200HW-DRM21-V1.
Specify the first address of each block (fixed to 100 words in size), the allocation
method (i.e., allocation in blocks of words or minimum required number of words), and
the registration or deletion of slaves.
Note
• To make allocations in excess of 100 words per block, use Parameter - Edit.
• To allocate I/O of slave devices to the master with the Parameter Wizard, use the
following procedure.
1. Select the master.
2. Select Component - Parameter - Wizard.

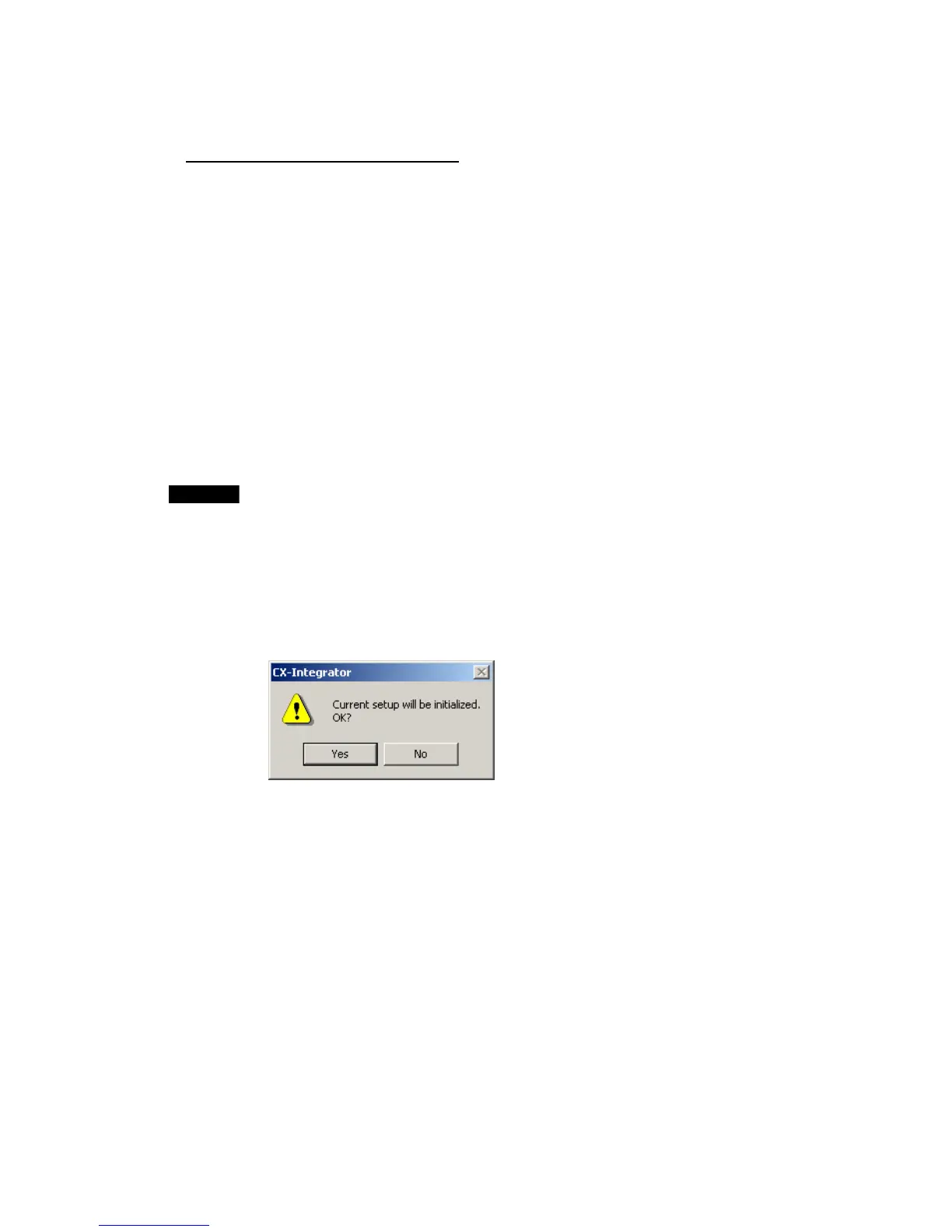

3. When settings are made with the Parameter Wizard, the present settings will be
cleared and default values will be set. The following confirmation dialog box will be
displayed. Click the Yes Button.
4. The following Scan List Wizard-Set Memory Block’s Start Word Dialog Box will be
displayed.
Set the memory area to be used and the start word and click the Next Button. I/O
will be automatically allocated to block 1. When block 1 is full, I/O will be allocated
to block 2. Each block consists of a maximum of 100 words.
Note It is not possible to go to the next step if there is any duplication between blocks or
the first word is not within the permissible set range.
6-16
