3-3 Maintenance after Network Configuration
3-3-1 FINS Network Routing Tables
3-3 Maintenance after Network Configuration
3-3-1 FINS Network Routing Tables
When the routing tables have been set and transferred to the nodes (CPU Units of the
PLCs) in the network, it is possible to connect online to the PLCs through the network
from the CX-Integrator and read the network configuration.
This capability allows the FINS local routing table set in each PLC to be read and
edited through the network.
In addition, the FINS local network tables set in each PLC can be saved together in a
FINS network routing table file.
These operations are performed in the FINS Network Routing Table Window.
3-3-2 Editing the FINS Local Network Tables
The following procedure explains how to read the FINS local routing tables set in each
PLC. The computer must be directly connected to PLC1 and online.
1. Verify that the PLC is connected directly to the computer (CX-Integrator) and select
Tools – Start Routing Table from the PLC Routing Table Window's menu.

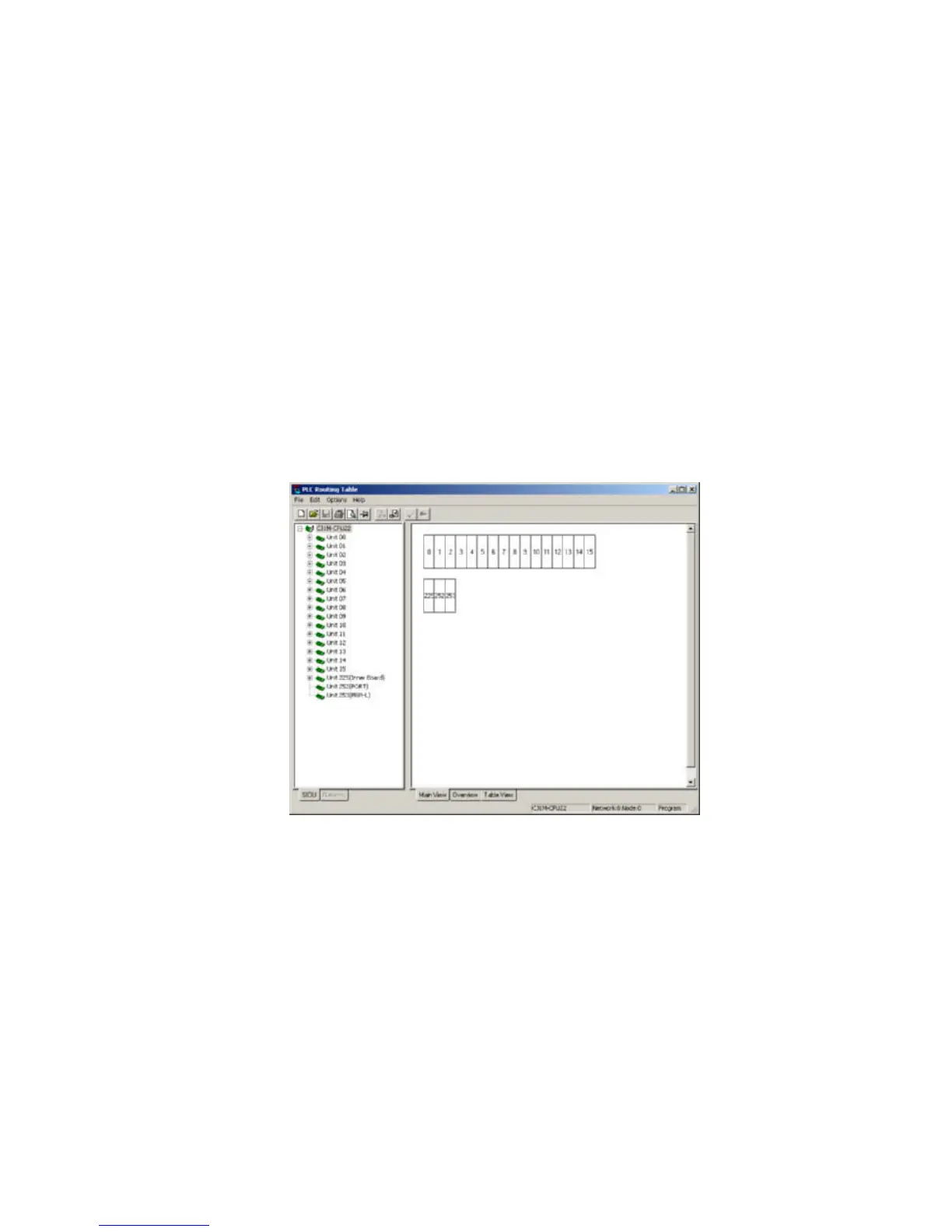

2. The PLC Routing Table Window will be displayed.
