6-9 Advanced Settings (Connection, Communication Cycle Time, Slave Function
Settings, Etc.)
6-9-1 Advanced Settings
6-9 Advanced Settings (Connection,
Communication Cycle Time, Slave Function
Settings, Etc.)
The following description provides information on the connection, device information
display and check, communication cycle time, message timer, and slave function
settings.
6-9-1 Advanced Settings
Select Component - Parameter - Edit, and click the General Tab. Select the
slave and click the Advanced Setup Button.
Make advanced setup settings (such as device information display/compare and
connections settings) for remote I/O communications.
Note: These settings are supported for the CS1W-DRM21(-V1) and CJ1W-DRM21 only.
Device Information Display/Compare Settings
Device Information Tab Page
The following settings make it possible to display or compare device information on
slaves.
Use the following procedure.
1. Select the slave from the Registered Device List.
2. Click the Advanced Setup Button.

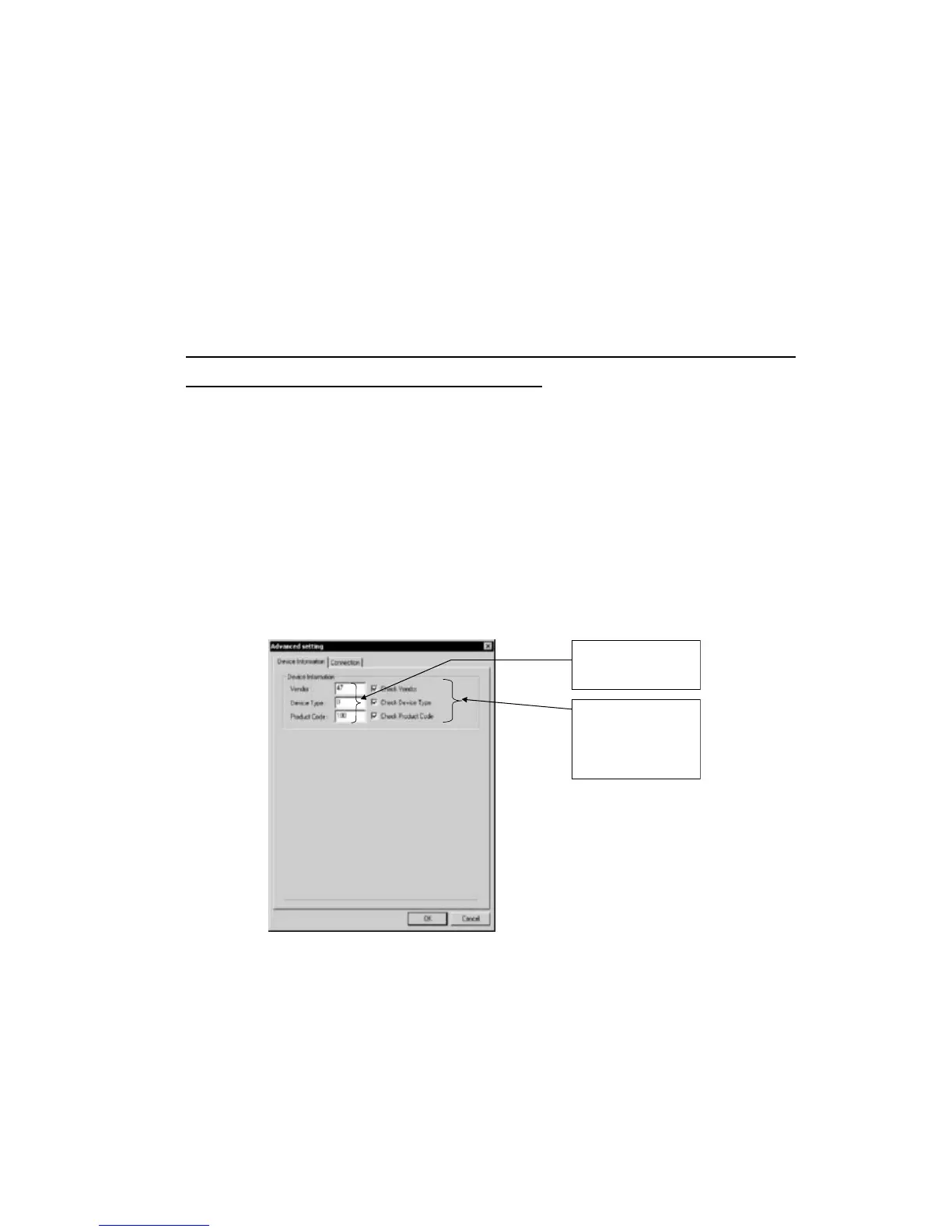

3. The following dialog box will be displayed.
Click the Device Information Tab.
If these boxes are checked, the
device information will be
compared with the correspondin
remote
I/O communication. If the
information does not coincide with
the data, a verify error will result.
The device information on the
selected slave will be displayed.
The device information (consisting of vendor, device type, and product code data)
on the selected slave is displayed.
By checking the above boxes, the device information will be compared with the
corresponding data in the scan list when I/O communication connections are
established.
