6-8 Manual I/O Allocations
6-8-4 Slave Information
6-8-4 Slave Information
I/O Allocation Tab - Information Button
Device information on registered slaves, such as I/O comments, can be checked with
the I/O Allocation Tab Page. The I/O comment is set to the I/O data of a slave by
selecting Edit I/O Comment from the Device Menu.
To display information on the slave, use the following procedure.
1. Select the device.
2. Click the Information Button.

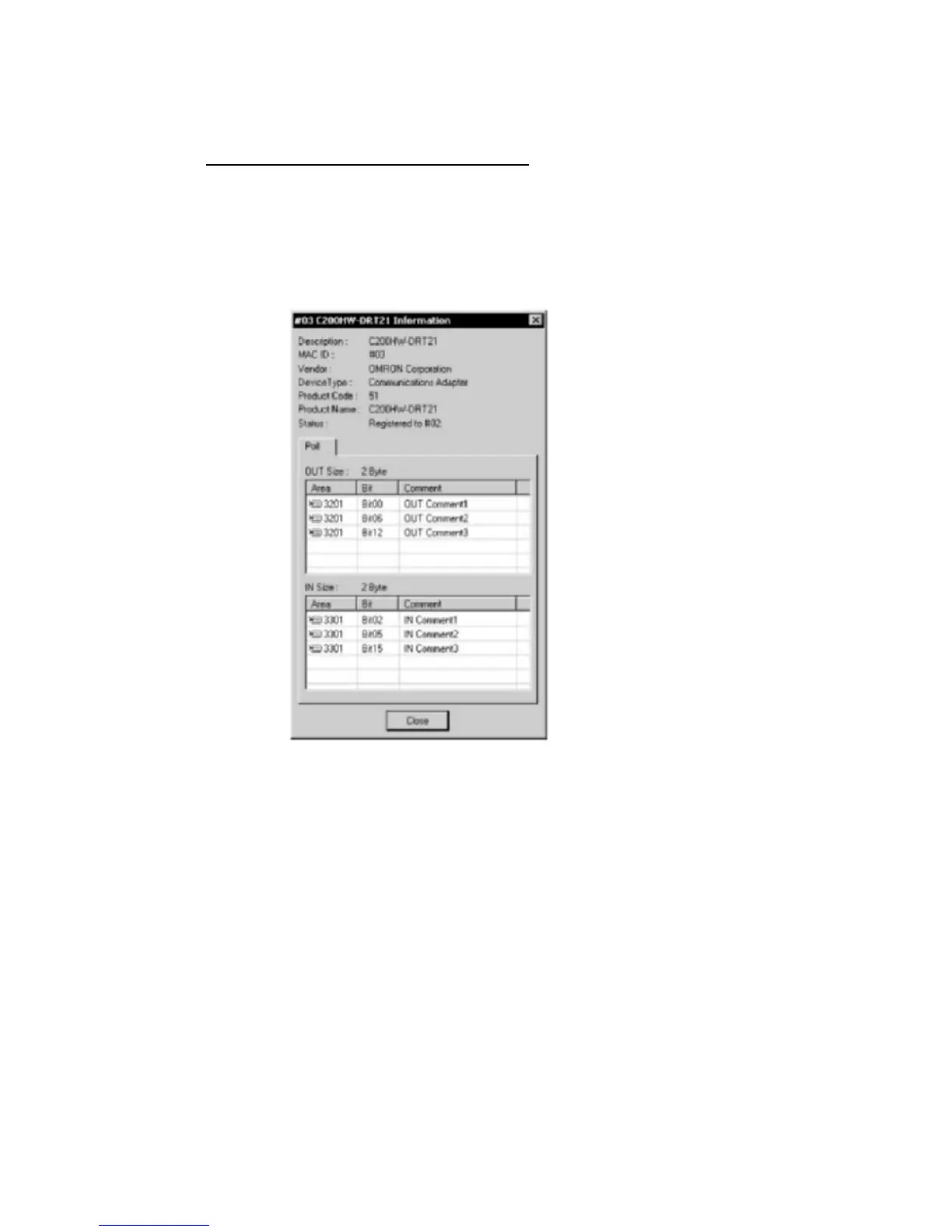

The following dialog box will be displayed.
When the registered device is selected in the above dialog box, the slave information
will be refreshed to information on the selected device.
6-35
