6-8 Manual I/O Allocations
6-8-3 Allocating I/O
Drag and Drop
Drag and Drop on I/O Allocation Tab Page
1. Display the Memory Block List.
2. Select the slave from the Registered Device List.
3. Drag the slave to the first byte of the desired position.

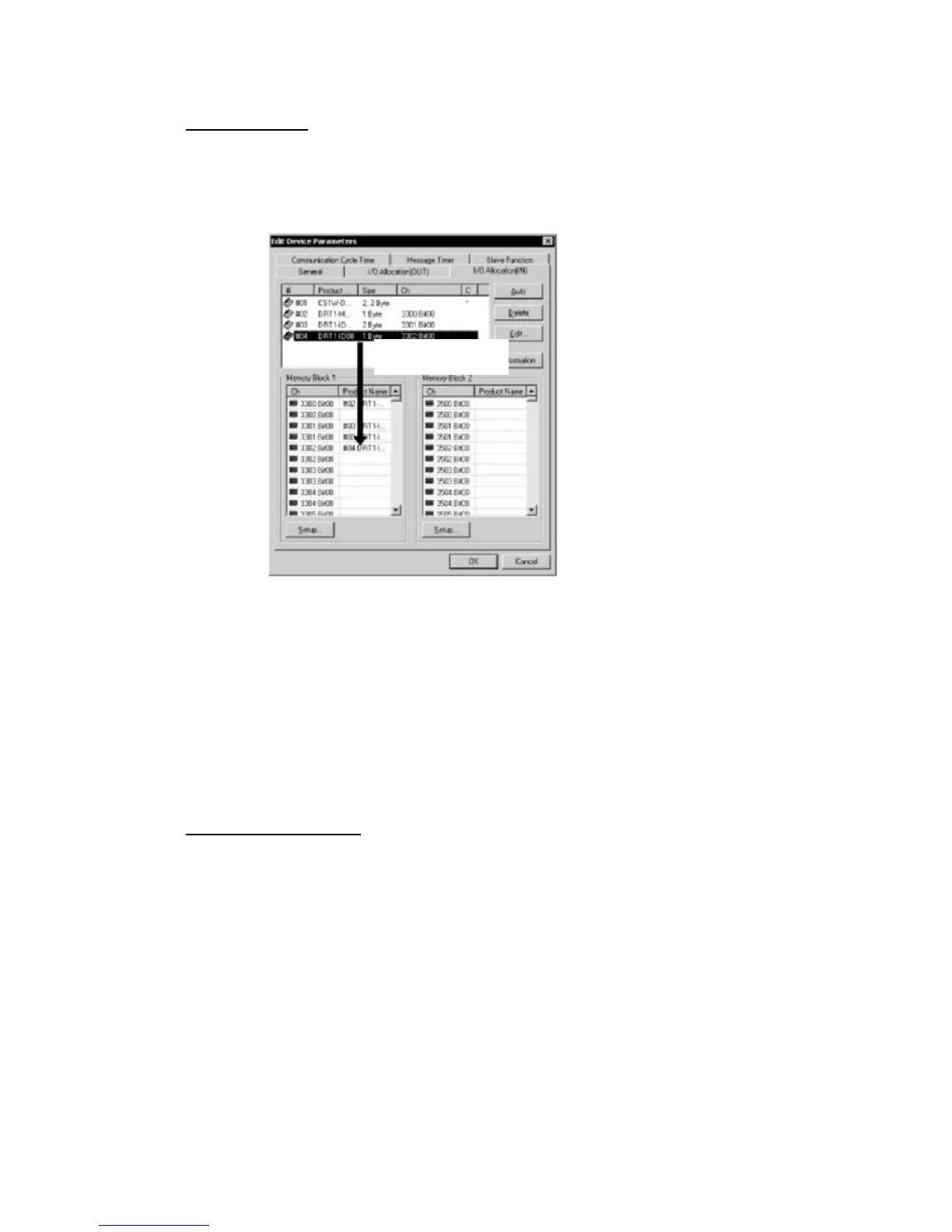

Allocation by dragging
and dropping.
•Memory Block List
In the Memory Block List, the Ch column displays each byte address (the word
and first bit addresses). The Product Name column displays the product name for
the slave.
•Registered Device List
The # column of the Registered Device List displays the node address, the
Product Name column displays the product name of the slave, and the Size
column displays the number of allocated bytes for the slave. The Ch column
displays the first byte (the word and first bit addresses) of the slave allocated.
To unregister the allocations of slaves, select the slaves in the Registered Device
List, and click the Delete Button.
Note To register in units of words the slaves in the order of earlier addresses, select the
slaves in the Registered Device List, and click the Auto Button.
Automatic Allocation
I/O Allocation Tab - Register/Unregistered (Allocate/Unallocated) Button
Note This procedure is the same for the CS1W-DRM21(-V1),
CJ1W-DRM21, CVM1-DRM21-V1, and C200HW-DRM21-V1.
• To allocate in units of words the selected slaves to an unoccupied area in the order of
earlier addresses, click the
Auto Button.
• To unregister the allocations of the selected slaves, click the
Delete Button.
The advanced setup function (to be explained later) is not possible while automatic
allocation is specified.
