6-11 Displaying Device Properties
6-11-1 Property Dialog Box Common to All Devices
6-11 Displaying Device Properties
Component - Property
This section explains device information on network devices.
Device properties are classified into those common to all devices and those inherent to
each device.
To display the device properties, use the following procedure.
1. Select the device.
2. Select Component - Property.
3. The Property Dialog Box will be displayed.
6-11-1 Property Dialog Box Common to All Devices

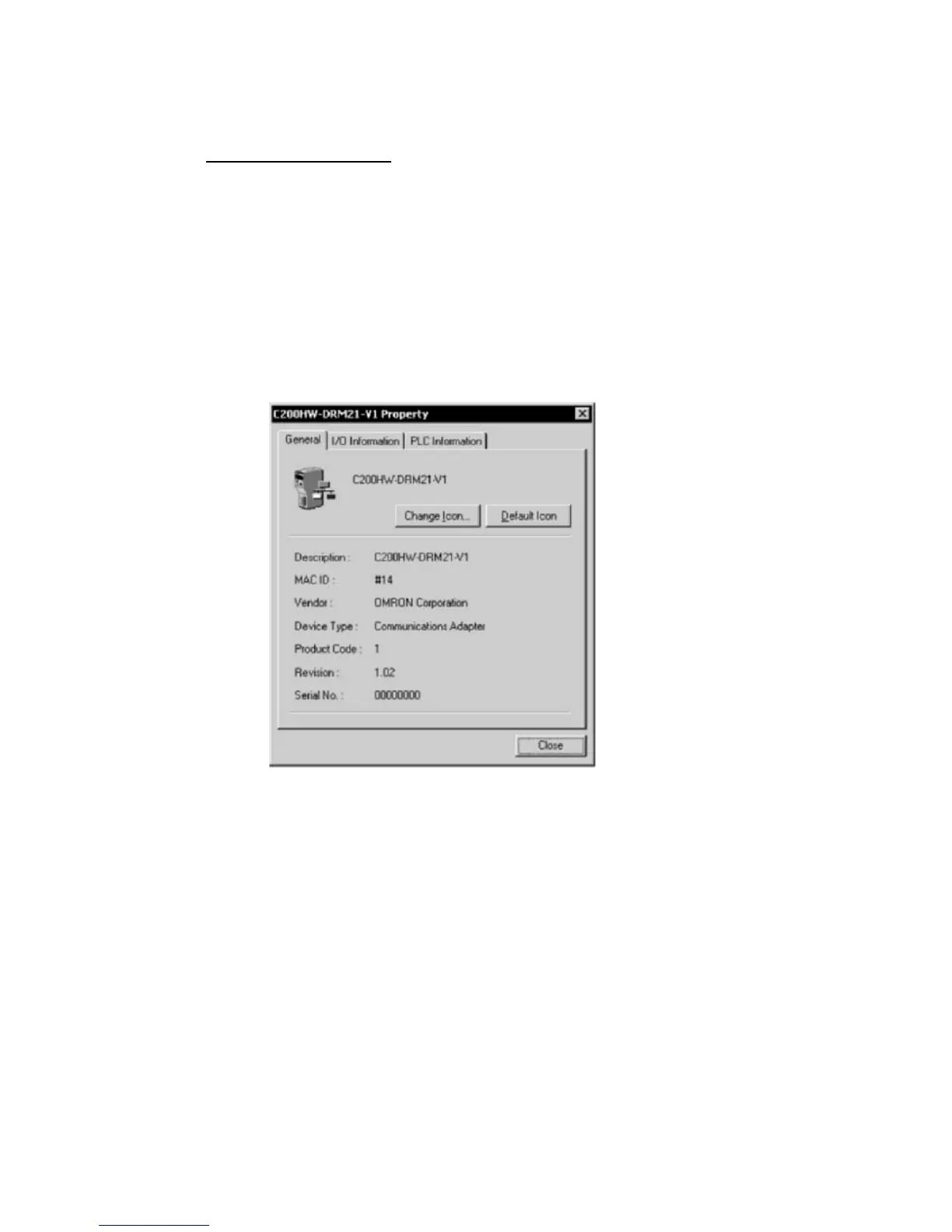

The following window will be displayed for device properties.
This dialog box has the name of the vendor of the device and the device type.
By clicking the Change Icon Button, the icons displayed by the CX-Integrator can be
customized.
To change the icon to standard ones, click the Default Icon Button.
6-45
