7-1 CompoWay/F System Configuration
7-1-1 Overview
7-1 CompoWay/F System Configuration
7-1-1 Overview

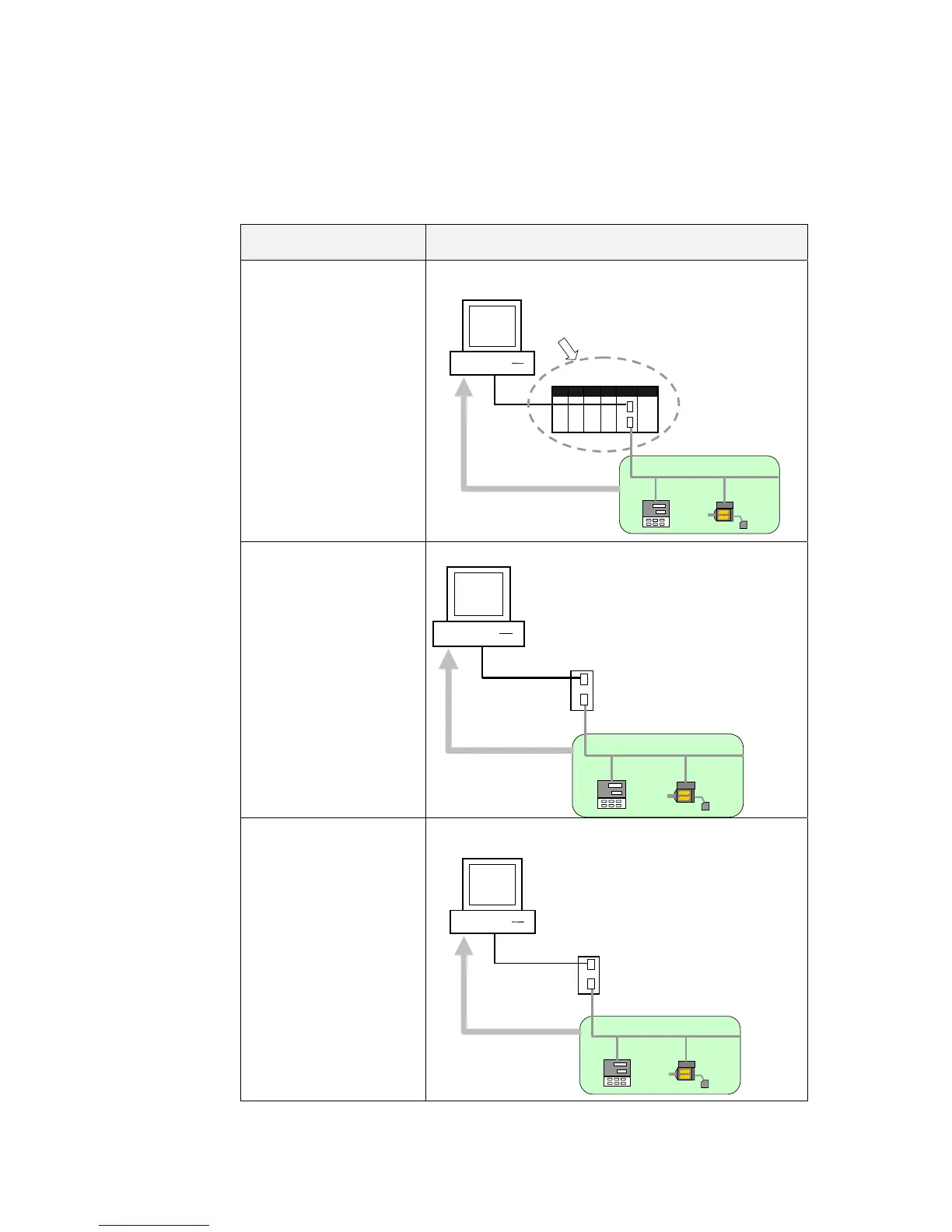

The CompoWay/F communications configuration (including slave parameters) can be
uploaded using any one of the following three system configurations.
CompoWay/F Slaves that
are uploaded
Communications configuration
1) CompoWay/F Slaves
connected to a CS/CJ-series
PLC (CPU Unit or Serial
Communication Board/Unit)
or serial port C on the
Controller Section of an
NSJ-series NSJ Controller
Computer (CX-Integrator)
CS/CJ-series PLC
Network
connection or
serial connection
(Toolbus or host link)
Relay PLC (and target PLC)
CompoWay/F
Upload
2) CompoWay/F Slaves
directly connected to a
computer (CX-Integrator)
Computer (CX-Integrator)
RS-232C Cable
Serial connection
(CompoWay/F)
CompoWay/F
RS-232C to RS-485
Serial Converter (K3SC Series)
RS-485
• Relay PLC model: CompoWay/F
• Network type: CompoWay/F
Upload
3) CompoWay/F Slaves
directly connected to a
computer (CX-Integrator) by
a USB cable
Computer (CX-Integrator)
USB Cable
Serial connection
(CompoWay/F)
CompoWay/F
USB to RS-485
Serial Converter (K3SC Series)
RS-485
•
Relay PLC model: CompoWay/F
•Network type: CompoWay/F
Upload
7-2
