6-9 Advanced Settings (Connection, Communication Cycle Time, Slave Function
Settings, Etc.)
6-9-1 Advanced Settings
Connections
Connection Tab Page
When the user specifies the connections for remote I/O communications, up to two
connections can be set for each slave.
Use the following procedure.
1. Select the slave in the Registered Device List.
2. Click the Advanced Setup Button.

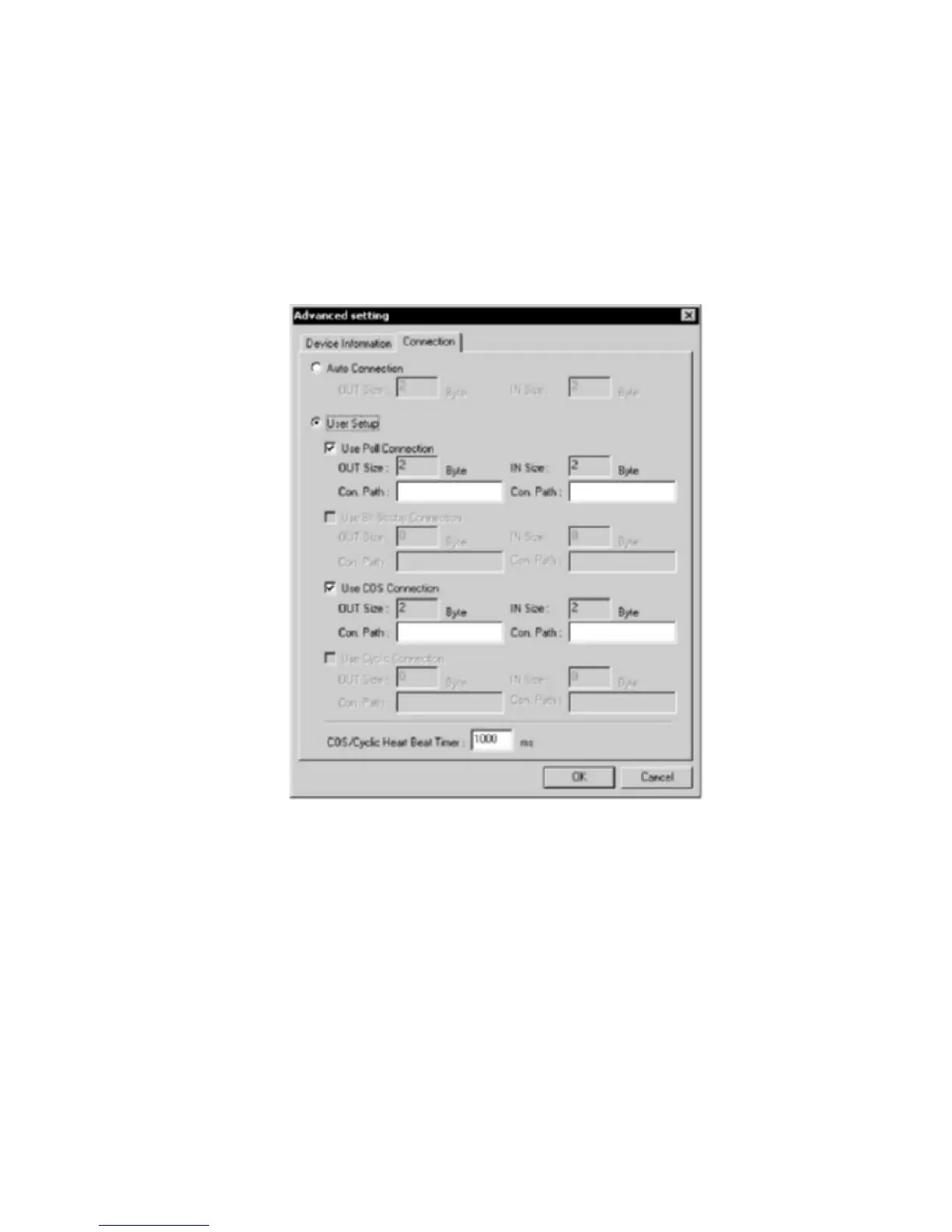

3. The following dialog box will be displayed.
Click the Connection Tab.
Automatic connections are set by default. To specify the connections, use the following
procedures.
1. Select User Setup.
Possible connections are ready for selection.
2. Select the connections.
Up to two connections can be selected.
Note Both COS and Cyclic cannot be specified at the same time.
3. Set the connection path as needed.
4. Set the COS/Cyclic heart beat timer.
5. Click the OK Button.
An asterisk (*) will be displayed in the C column at the right edge of the Registered
Device List. If the connections of a device already allocated with I/O are changed,
the previous I/O allocations will be canceled. Make the I/O allocations again.
