4-4 Automatically Set Data Links
4-4-3 SYSMAC LINK Automatic Setup
4-4-3 SYSMAC LINK Automatic Setup
1 Before executing the following operations, connect online to the PLC that is serving
as the startup node (making it the target PLC).
Select Network - Work Online or Network - Auto Online from the menu bar.

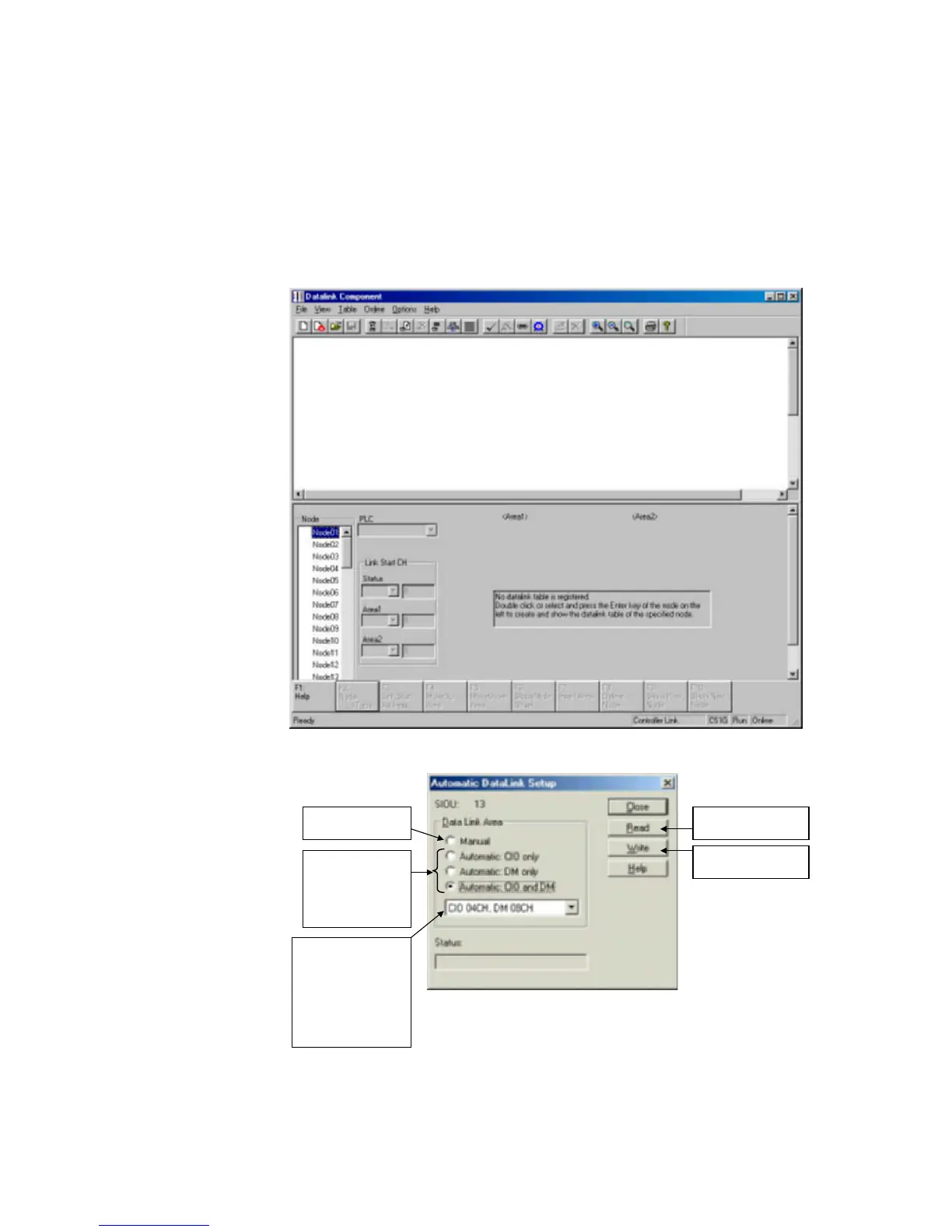

2 Right-click the SYSMAC LINK Unit in the Online Connection Information Window
and select Start Data Link from the popup menu. The SYSMAC LINK Datalink
Component Window will be displayed.
Note: Start Data Link cannot be selected if there is not a Controller Link Unit or SYSMAC
LINK Unit mounted in the PLC that is connected online.
3 Select Online - Automatic Datalink Setup from the menu bar.
The Automatic Datalink (SYSMAC LINK) Dialog Box will be displayed.
Reads settings data from
the PLC.
Transfers settings data to
the PLC.
Select for manual setup.
For automatic setup,
select CIO only, DM only,
or CIO and DM.
For automatic setup, select
from among the following
areas and words.
•
CIO 04CH, DM 08CH
•
CIO 08CH, DM 16CH
•
CIO 16CH, DM 32CH
•
CIO 32CH, DM 64CH
4 Select the memory area for automatic setup (CIO Area only, DM Area only, or CIO
and DM Areas), and select the area and word settings from the following list.
4-47
