4-4 Automatically Set Data Links
4-4-5 Monitoring Data Link Status
4-4-5 Monitoring Data Link Status
Monitoring Data Link Status, Such as Communications Cycle Time

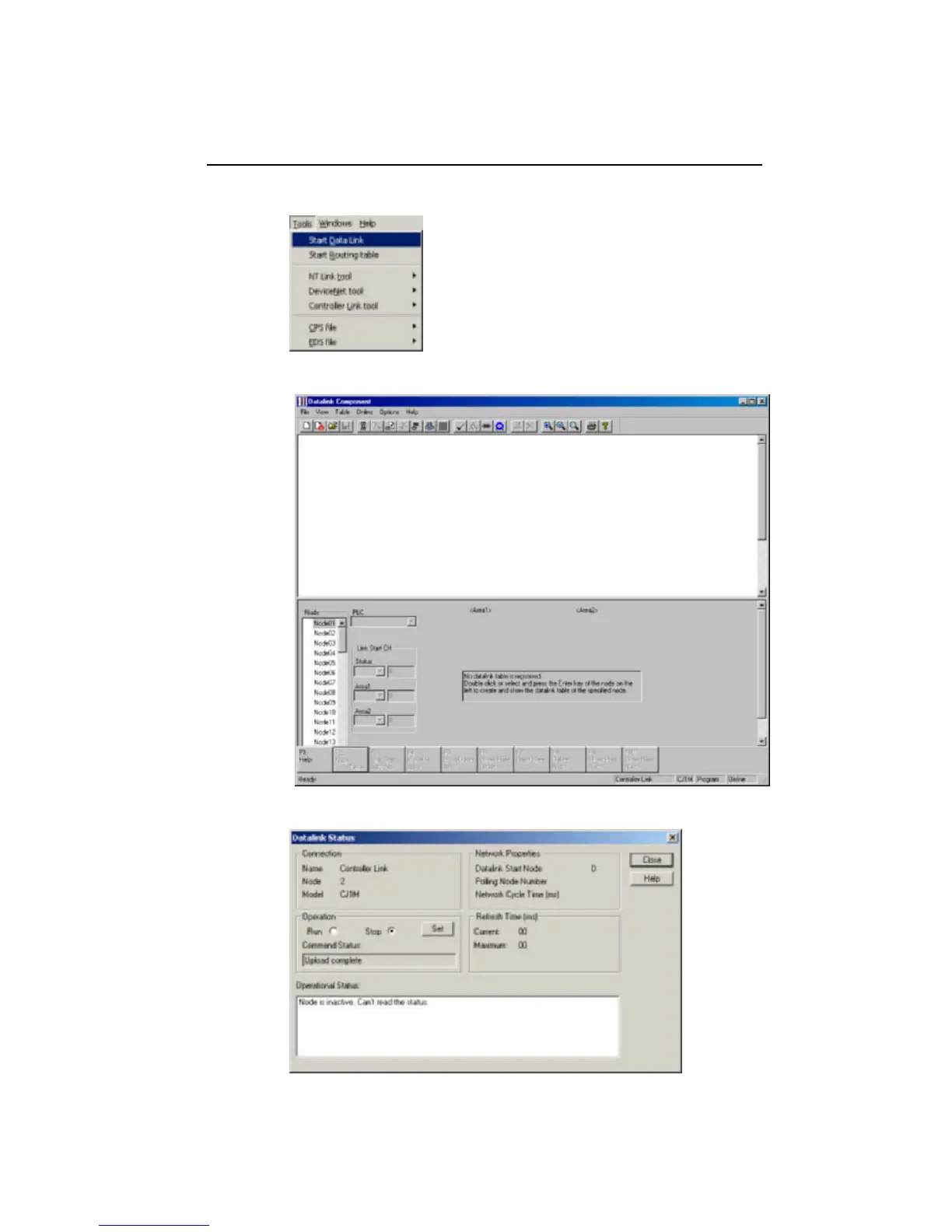

1 Select Network - Work Online from the menu bar to connect online.
2 Select Tools - Start Data Link.
3 Select Controller Link or SYSMAC LINK, and then click the OK Button. The
Datalink Component Dialog Box will be displayed.
4 Select Online – Datalink Operation/Status. The Data Link Status Dialog Box will
be displayed.
4-50
To Next Page
