1-1 The CX-Integrator
1-1-1 Overview

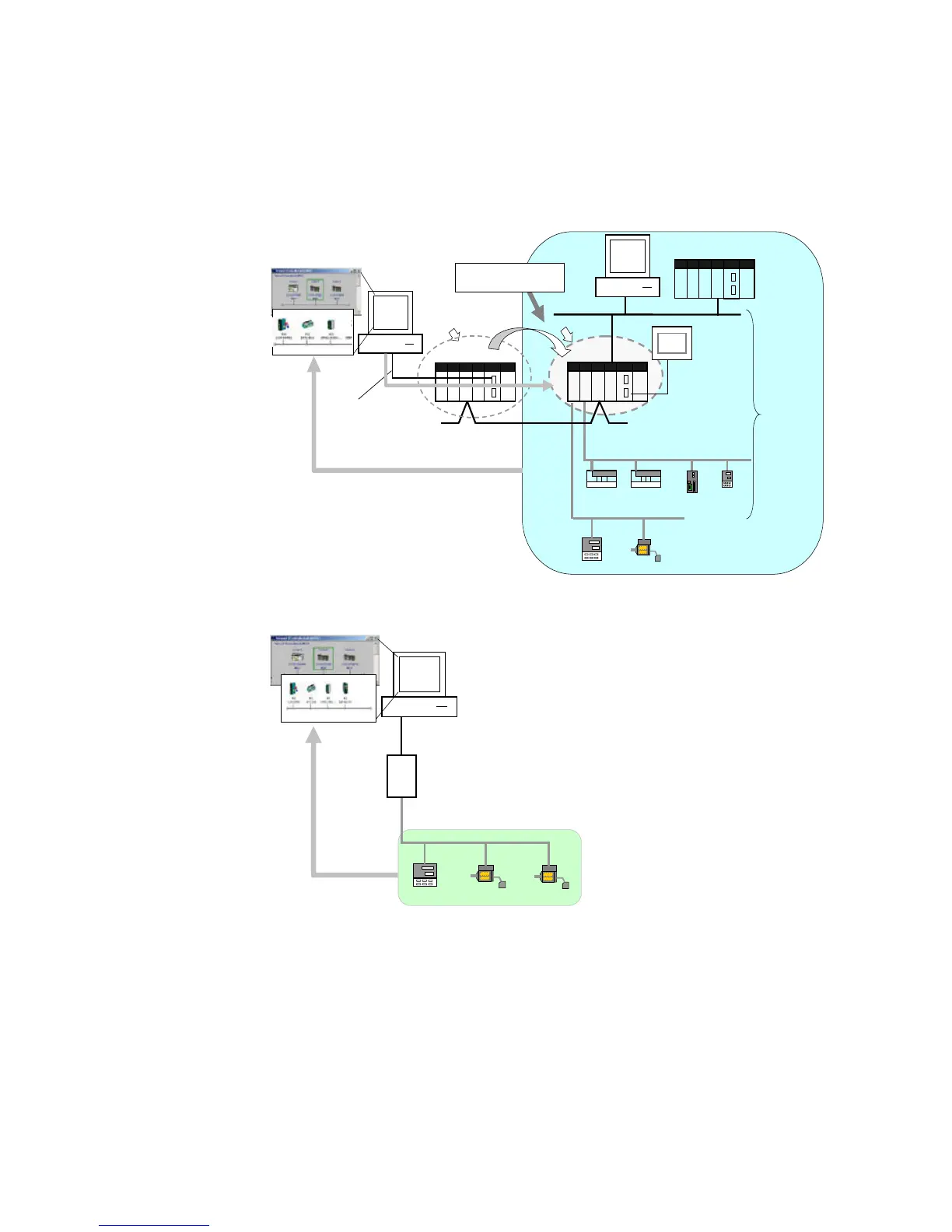

The network/serial communications configuration of a PLC other than the one originally
connected to online to can be set as the target. The PLC that was originally connected to
online (called the relay PLC, see note 1), is relayed through to connect to another PLC
(called the target PLC, see note 2) to switch the online connection.
Note 1: The relay PLC is the PLC to which an online connection was first made from the computer
through a network or serial connection.
Note 2: The target PLC is the PLC from which the network configuration can be uploaded.
Controller Link
CS/CJ-series PLC
Computer running
CX-Integrator
Direct serial connection
(Toolbus or Host Link) or
network connection
Relay PLC
General-purpose slaves,
such as I/O Terminals
PL
et PLC for each
network
CS/CJ-series PLC
Serial connection
(NT Link)
Ethernet
Target PLC
Uploaded to computer
Access
A PLC other than the relay PLC
can be set as the target.
Online
connection
Serial
communications/net
works that can be
accessed
Direction connection from the CX-Integrator to serial communications using the
CompoWay/F protocol is also possible using RS-232C or RS-485 communications without
going through a PLC. The CompoWay/F network configuration can also be uploaded.
CompoWay/F protocol
Temperature
Controller
Smart Sensor
K3SC RS-232C to RS-485 Interface
Converter
Standard RS-232C cable (female-female)
Uploaded to computer
Smart Sensor
RS-485 cable connection
Computer running
CX-Integrator
1-3
