6-7 Master Parameter Editing Details (Tab Descriptions)
6-7-3 Editing Device Parameters on 3G8F7-DRM21 DeviceNet PCI Board Scanner
6-7-3 Editing Device Parameters on 3G8F7-DRM21 DeviceNet PCI
Board Scanner

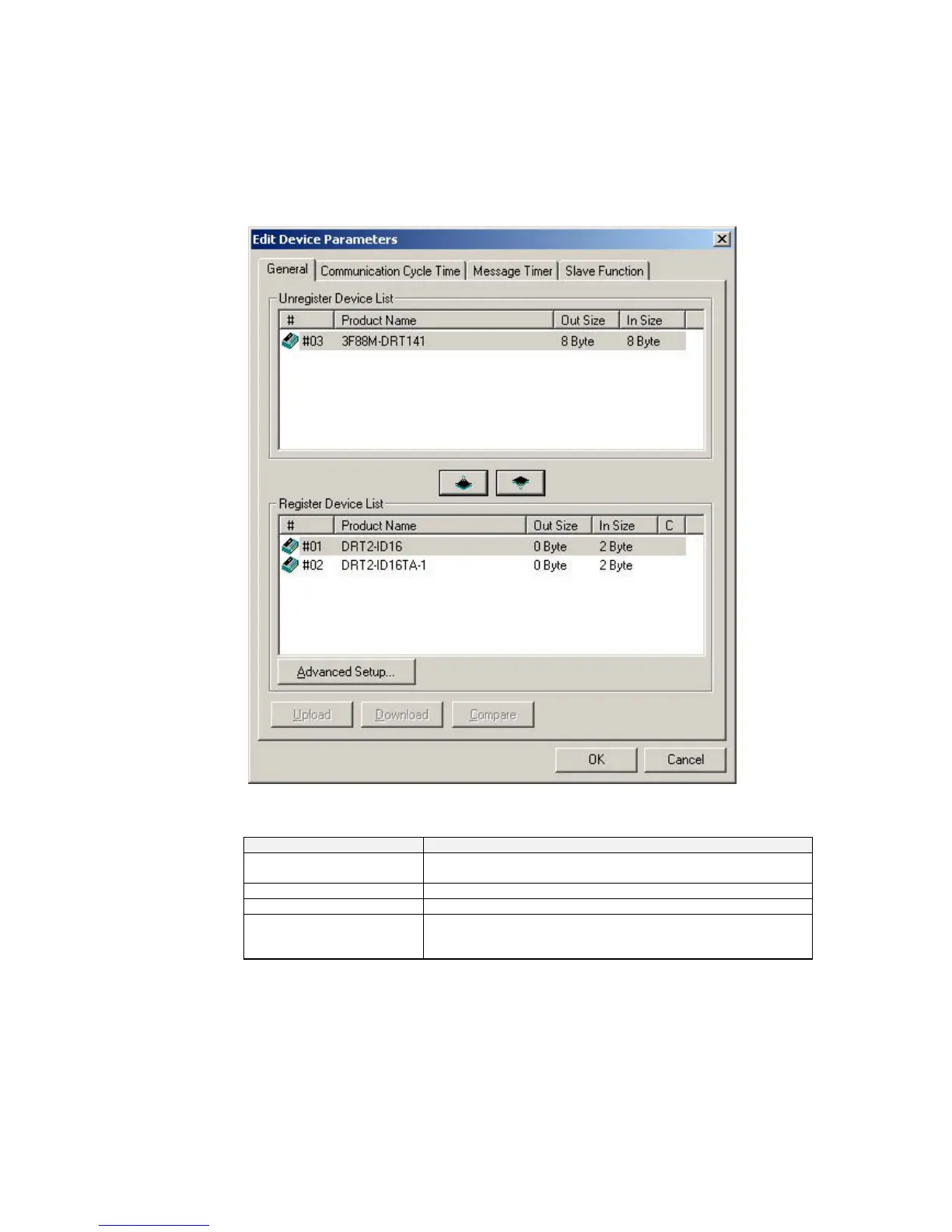

The following dialog box will be displayed when the 3G8F7-DRM21 DeviceNet PCI
Board Scanner is selected.
The Edit Device Parameters Dialog Box consists of the following four tab pages.
Tab Description
General Registers the device with the scan list and makes I/O allocations
automatically.
Communication Cycle Time Sets the communication cycle time.
Slave Function Makes necessary settings that enable the slave function.
Message Timer Makes monitor timer settings for message communications (both
explicit and FINS message
communications).
