6-11 Displaying Device Properties
6-11-3 Information for Master
6-11-3 Information for Master
OMRON’s CVM1-DRM21-V1, C200HW-DRM21-V1, CS1W-DRM21(-V1) and
CJ1W-DRM21 have an Master I/O Information Tab Page and PLC Information Tab
Page.
CS1W-DRM21(-V1) and CJ1W-DRM21 DeviceNet Unit

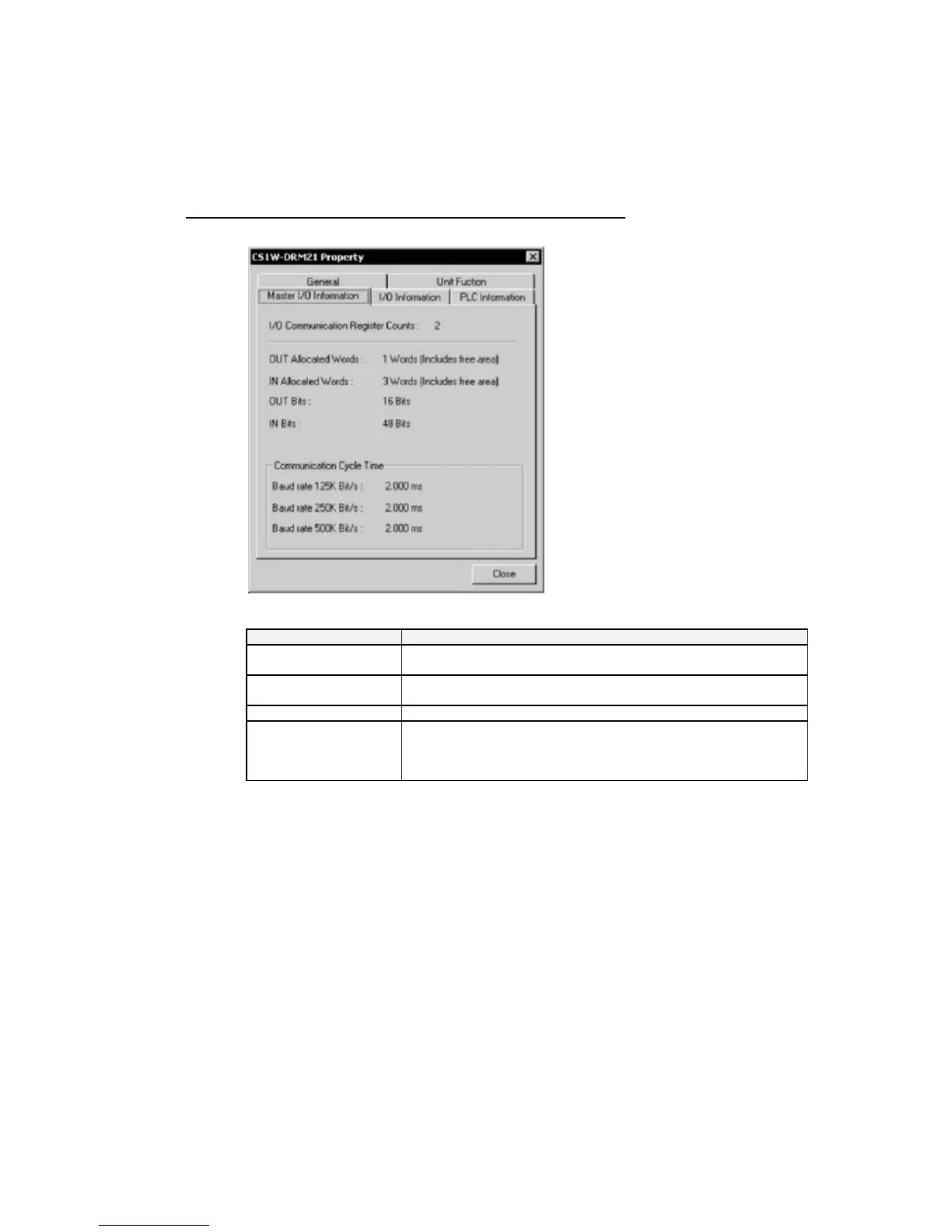

• Master I/O Information
The following master I/O information will be displayed.
Item Description
I/O Communication
Register Counts
The number of devices registered as remote I/O communications
devices in the scan list.
OUT/IN Allocated Words The number of allocated words including the unused words from the
first memory block set in the scan list.
OUT/IN Bits The number of actual I/O bits for remote I/O communications devices.
Communication Cycle
Time
The communication cycle time based on the device information in the
scan list. If the user has set the communication cycle time, the user’s
set value will be
displayed.
