7-2 CompoWay/F Slaves Connected to a PLC
7-2-1 Communications with CompoWay/F Slaves through a PLC

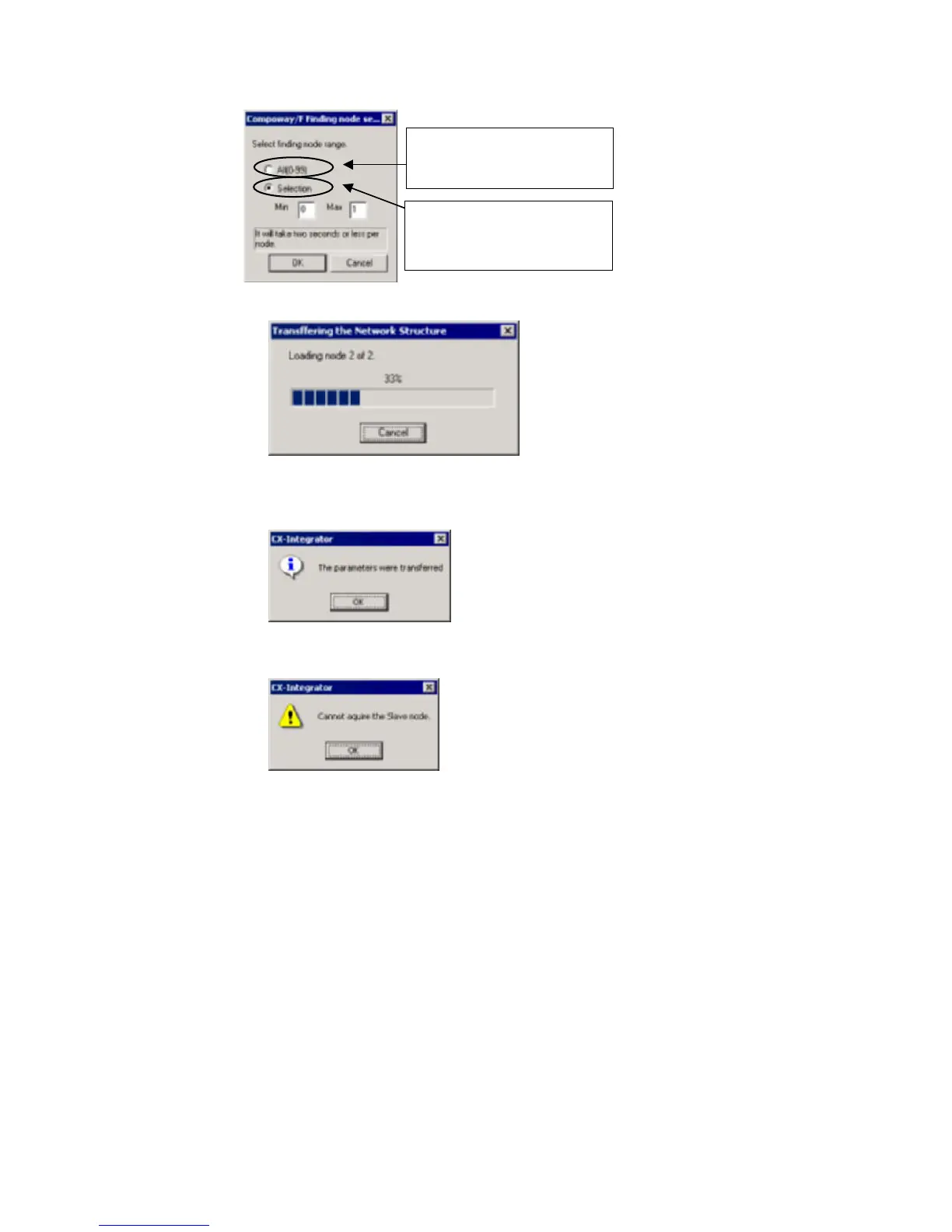

The CX-Integrator will check all 100
node addresses for nodes, so the
transfer will take about 35 minutes.
If you already know the node address
range, select the Selection Option,
specify the node search range, and start
the transfer.
The CompoWay/F Slave upload starts when the OK Button is clicked.
8. The following dialog box will be displayed when the CompoWay/F Slave transfer is
completed.
Click the OK Button.
The following dialog box will be displayed if no CompoWay/F Slaves could be
found.
Click the OK Button.
9. A CompoWay/F Slave (such as a Temperature Controller) connected directly to the
CPU Unit’s built-in RS-232C serial port is displayed in the Network Configuration
Window along with a PLC.
At the same time, a new CompoWay/F network is added in the Workspace
Window.
