A-1 CPS File Management
A-1-1 Description of CPS Files
Installing CPS Files

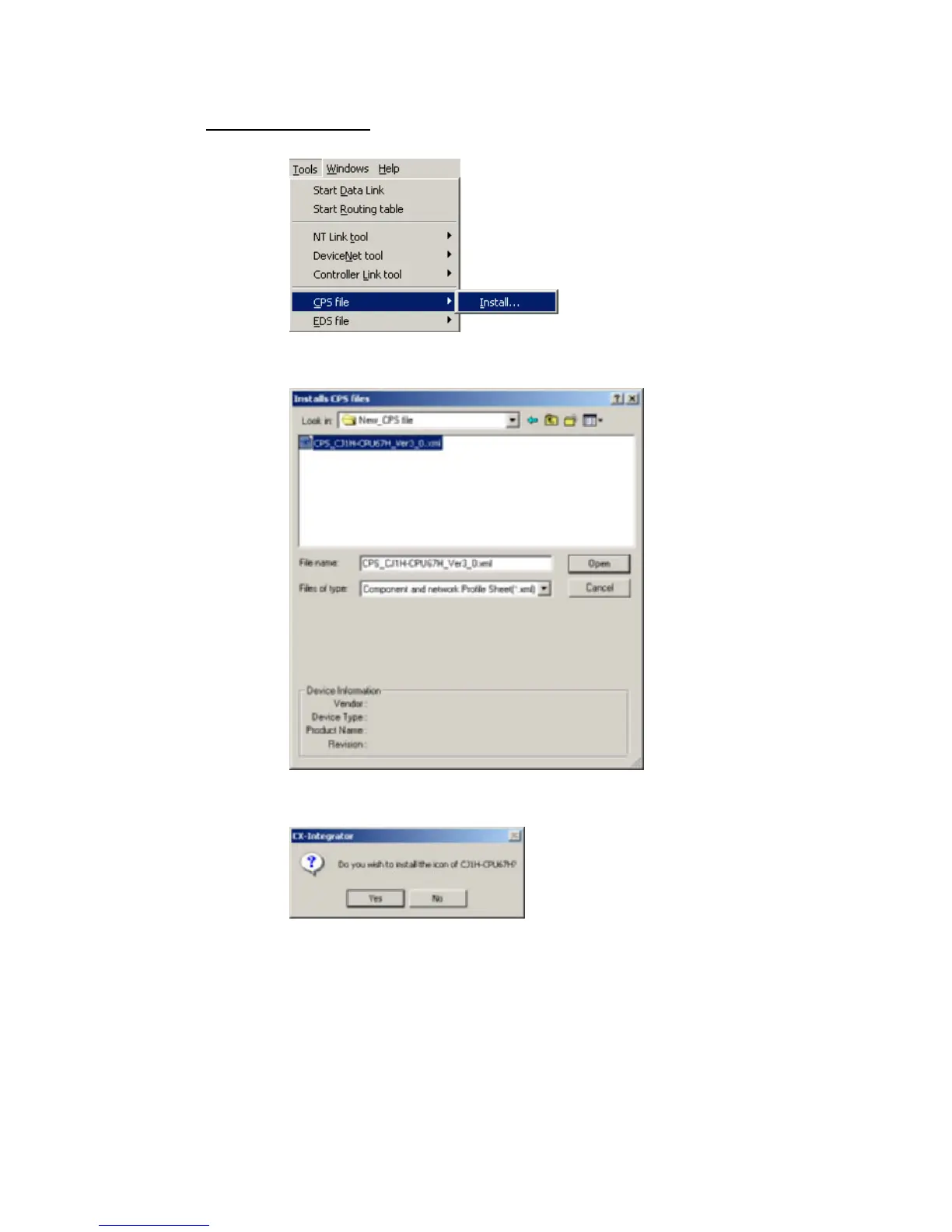

1. Select Tools – CPS File – Install from the menu bar.
2. The Install CPS files Dialog Box will be displayed.
Select the CPS file to install and click the Open Button.
3. The following dialog box will be displayed if the corresponding icon for the specified
Unit/component does not exist in the folder where the CPS file will be installed.
Click the Yes Button to install the icon.
The CPS file will be installed in the following directory:
Program Files\Common Files\Omron\Profiles\CPSFiles
A-3
