CHAPTER 1 INTRODUCTION
E5GN
1–2

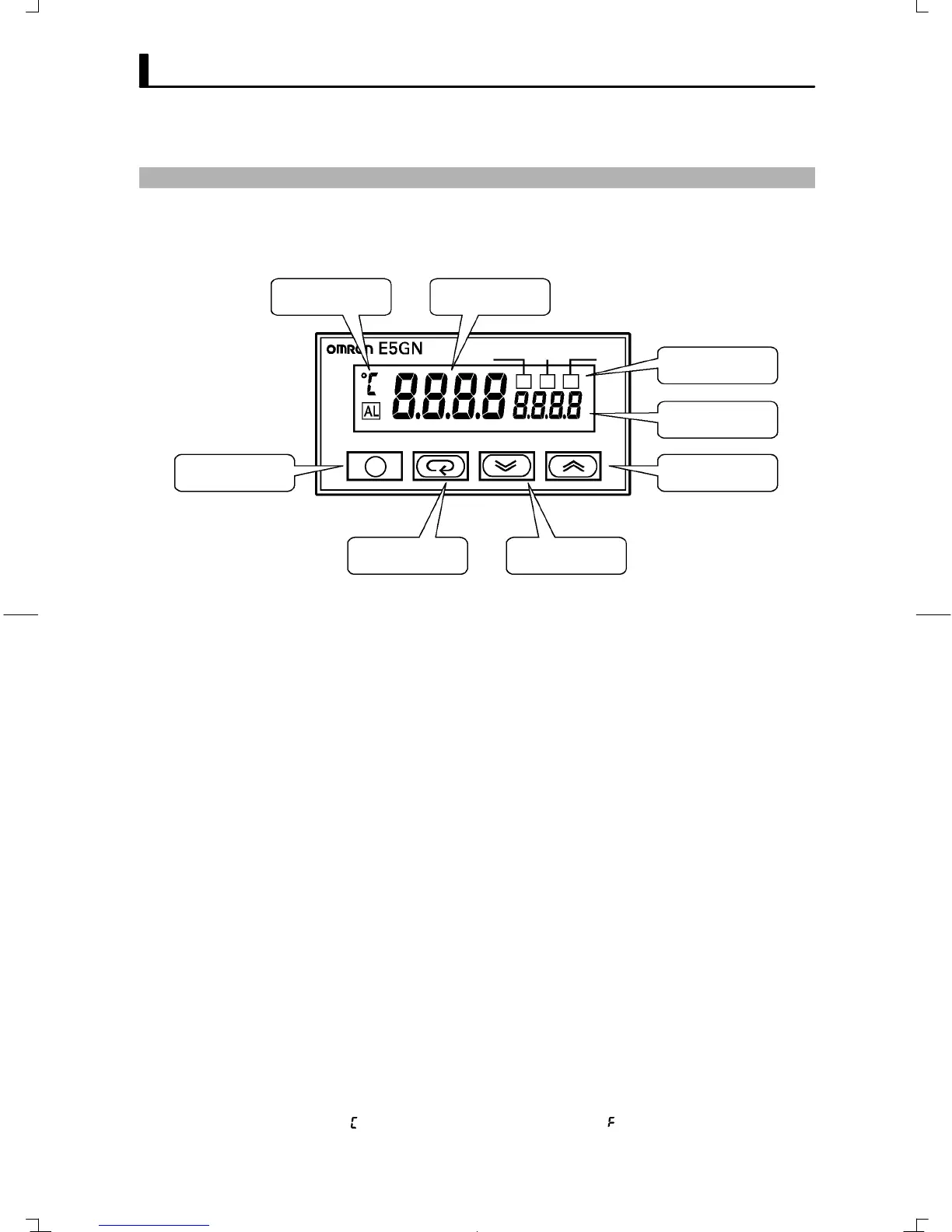

1.1 Names of Parts
JFront panel
CMW STP OUT
Temperature unit
No.1 display
Level key
Operation
indicators
No.2 display
Up key
Mode key Down key
JDisplay
Displays the process value or parameter type.
Displays the set point, manipulated variable or set value (setup) of the
parameter.
(1) AL (alarm)
Lights when alarm output is ON.
(2) CMW (communications writing control)
Lights when communications writing is enabled" and is out when it
is disabled."
(3) STP (stop)
Lights when control of the E5GN has been stopped.
During control, this indicator lights when the run/stop function has
been stopped.
(4) OUT (control output 1, control output 2)
Lights when control output 1, or control output 2 is ON.
The temperature unit is displayed when the display unit parameter is set
to a temperature. Indication is determined by the currently selected temĆ
perature unit" parameter set value. When this parameter is set to _C",
 " is displayed, and when set to _F",  " is displayed.
F No.1 display
F No.2 display
F Operation
indicators
F Temperature unit
