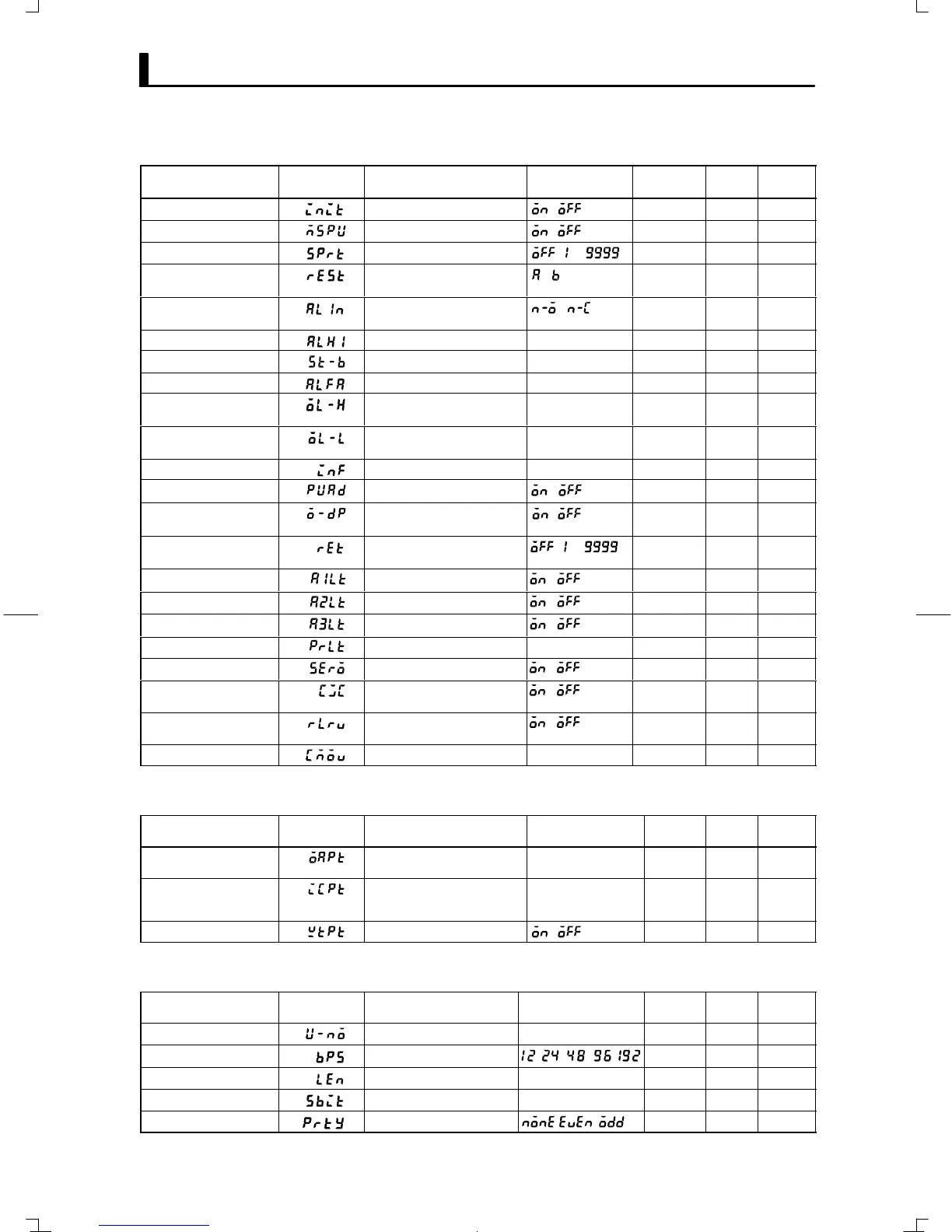

Omron E5GN User Manual

APPENDIX
E5GN
A–8
Advanced function setting level
Parameter Name Symbol Setting (monitor) Value Display Default Unit
Setting
Value
Parameter initialize ON, OFF
,
OFF None
Multi-SP uses ON, OFF
,
OFF None
SP ramp set value OFF, 1 to 9999
,to
OFF EU
Standby sequence reset
method
Condition A, Condition B
,
Condition A None
Alarm 1 open in alarm Open in alarm/Close in alarm
,
Close in
alarm
None
Alarm 1 hysteresis 0.1 to 999.9 0.2 EU
ST stable range 0.1 to 999.9 15.0 _C or _F
α 0.00 to 1.00 0.65 None
MV upper limit MV lower limit +0.1 to 105.0
(standard)
105.0 %
MV lower limit -5.0 to MV upper limit -0.1
(standard)
-5.0 %
Input digital filter 0.1 to 999.9 0.0 Second
Additional PV display ON, OFF
,
OFF None
Manipulated variable dis-
play
ON, OFF
,
OFF None
Automatic return of dis-
play mode
OFF, 1 to 9999
,to
OFF Second
Alarm 1 latch ON, OFF , OFF None
Alarm 2 latch ON, OFF , OFF None
Alarm 3 latch ON, OFF , OFF None
Protect level move time 1 to 30 3 Second
Output input error ON, OFF , OFF None
Cold junction compensa-
tion method
ON, OFF , ON None
MB command logic
switching
ON, OFF , OFF None
Move to calibration level -1999 to 9999 0 None
Protect level
Parameter Name Symbol Setting (monitor) Value Display Default Unit
Setting
Value
Operation/adjustment
protection
0 to 3 0 None
Initial setting/
communications
protection
0 to 2 1 None
Setup change protection ON, OFF
,
OFF None
Communications setting level
Parameter Name Symbol Setting (monitor) Value Display Default Unit
Setting
Value
Communication unit No. 0 to 99 1 None
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2
... . .,,,,
9.6 kbps
Data bit 7, 8 7 bit
Stop bit 1, 2 2 bit
Parity None, Even, Odd
,,
Even None
