2.1Installation
E5GN
2–3

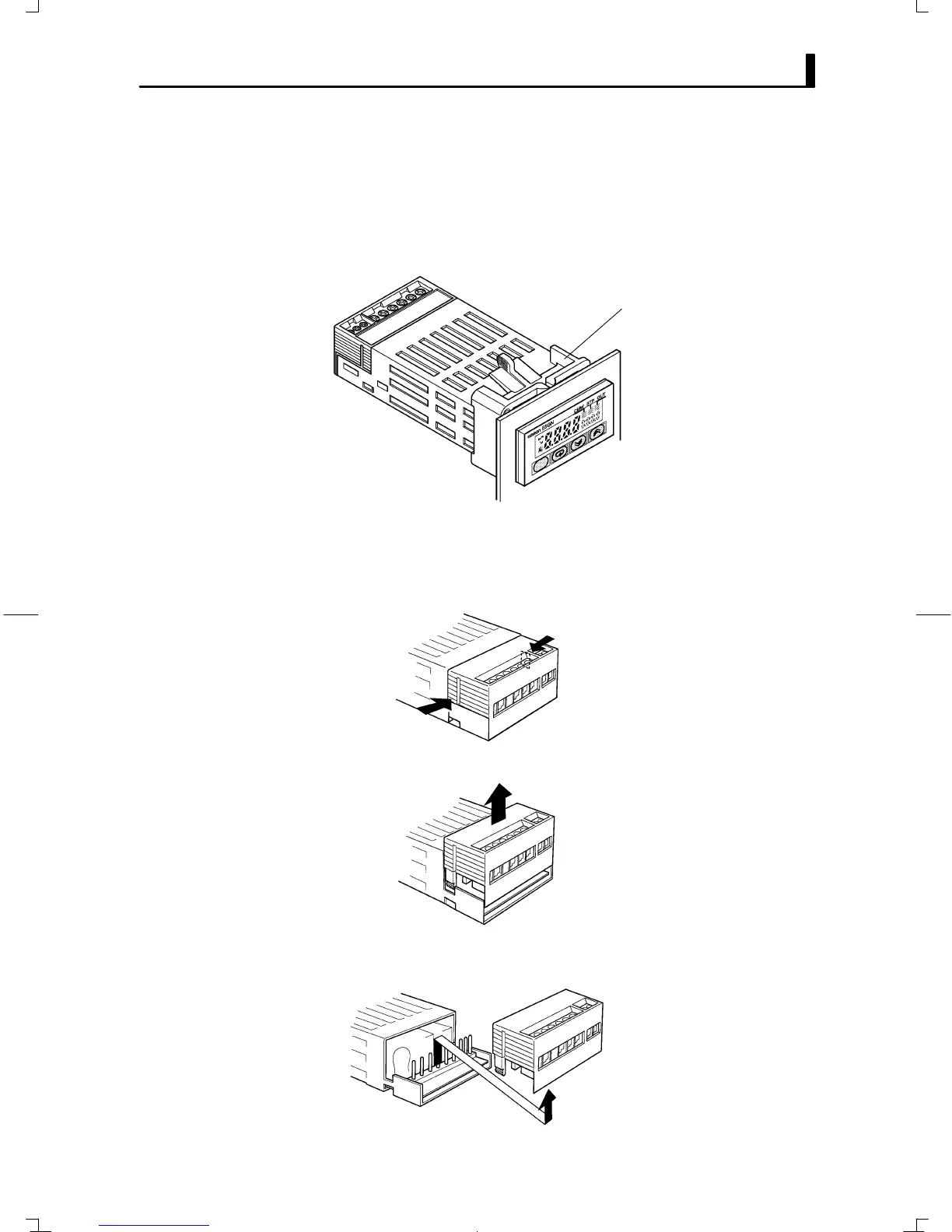

(1) Insert the E5GN into the mounting hole in the panel from the front.
(2) Push the adapter along the E5GN body from the terminals up to the
panel, and fasten temporarily.
(3) Tighten the two fixing screws on the adapter. When tightening
screws, tighten the two screws alternately keeping the torque to
within approximately 0.29 to 0.39 Nm (2.9 to 3.9 kgfcm).
Adapter
The E5GN can be replaced by removing the terminal plate.
(1) Press down hard on the fasteners on both sides of the terminals to
unlock the terminal plate and pull upwards.
(2) Draw out the terminal plate as it is.
(3) Before you insert the terminal plate again, make sure that the pins
match the positions of the holes in the terminal plate.
JMounting
JRemoving and
attaching the
terminal plate
