Omron E5GN User Manual

CHAPTER 3 BASIC OPERATION
E5GN
3–4

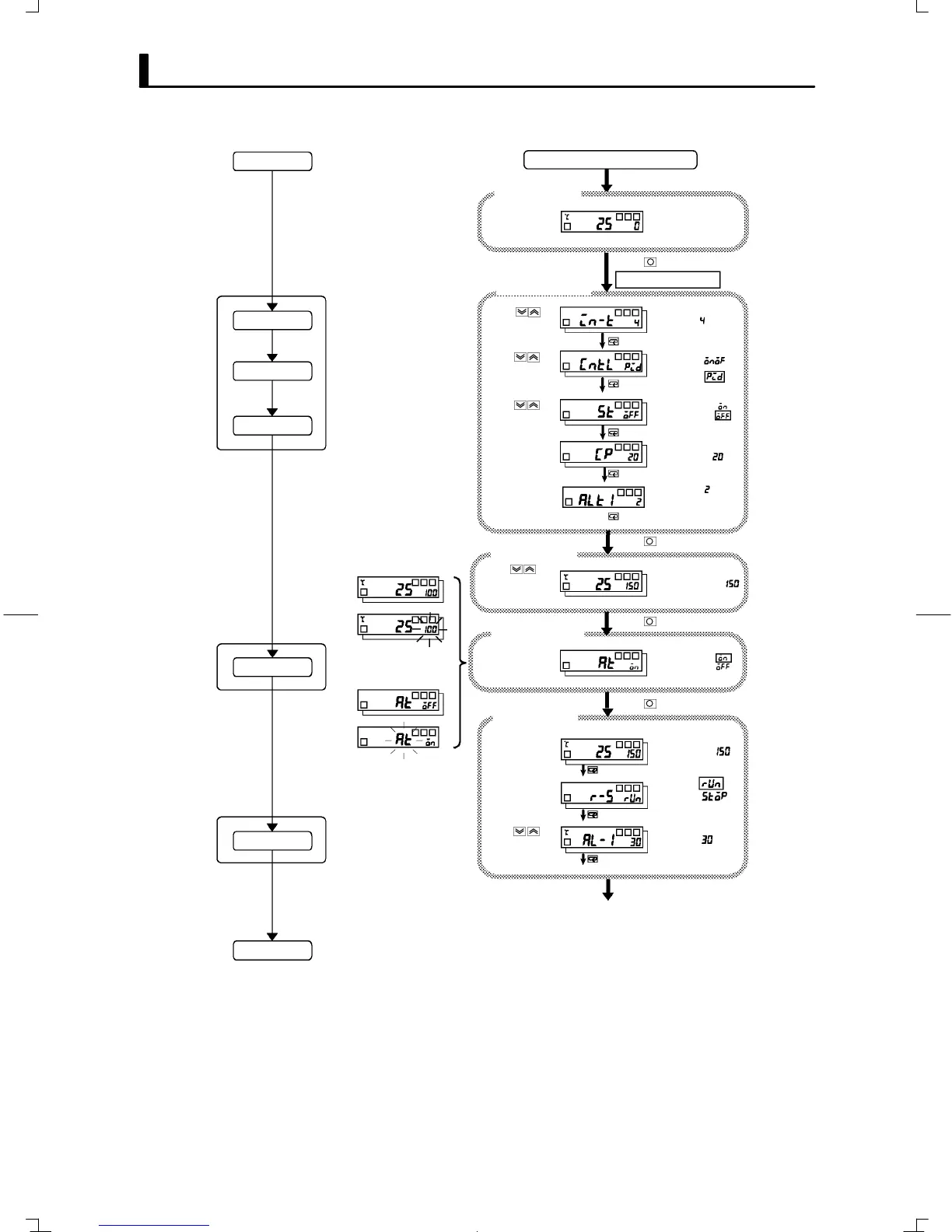

Setup procedure
Power ON
Initial setting level
Set input specifications
Set control
specifications
Set alarm type
AT execution
Set alarm values
Adjustment level
Operation level
(when PID con-
trol is selected)
Start operation
Power ON
Initial setting level
Operation level
Process value/set
point
Input type
In ON/OFF
control
In PID con-
trol
To execute ST
To cancel ST
Check the
control
period.
Check alarm
type.
Press key for at least three seconds.
Control stops.
During AT execution
Press key for at least one second.
Press
keys to set set
point to
“150_C”.
Execute AT
(auto-tun-
ing).
Press
keys to select
input type.
Press
keys to select
PID control.
Press
keys to set ST
to OFF.
Control period (heat)
(unit: seconds)
Alarm 1 type
Process val-
ue/set point
Press key for less than 1 second.
After AT execution
Adjustment level
Operation level
To execute
AT
To cancel AT
Press key for less than 1 second.
Make sure that
set point is
“150_C”.
Make sure that
control is run-
ning.
Press
keys to set alarm
value to “30_C”.
Process val-
ue/set point
During run
During stop
Alarm value 1
Start program execution
Operation level
During AT execu-
tion
After AT execution
