3.2Setting the Input Type
E5GN
3–5

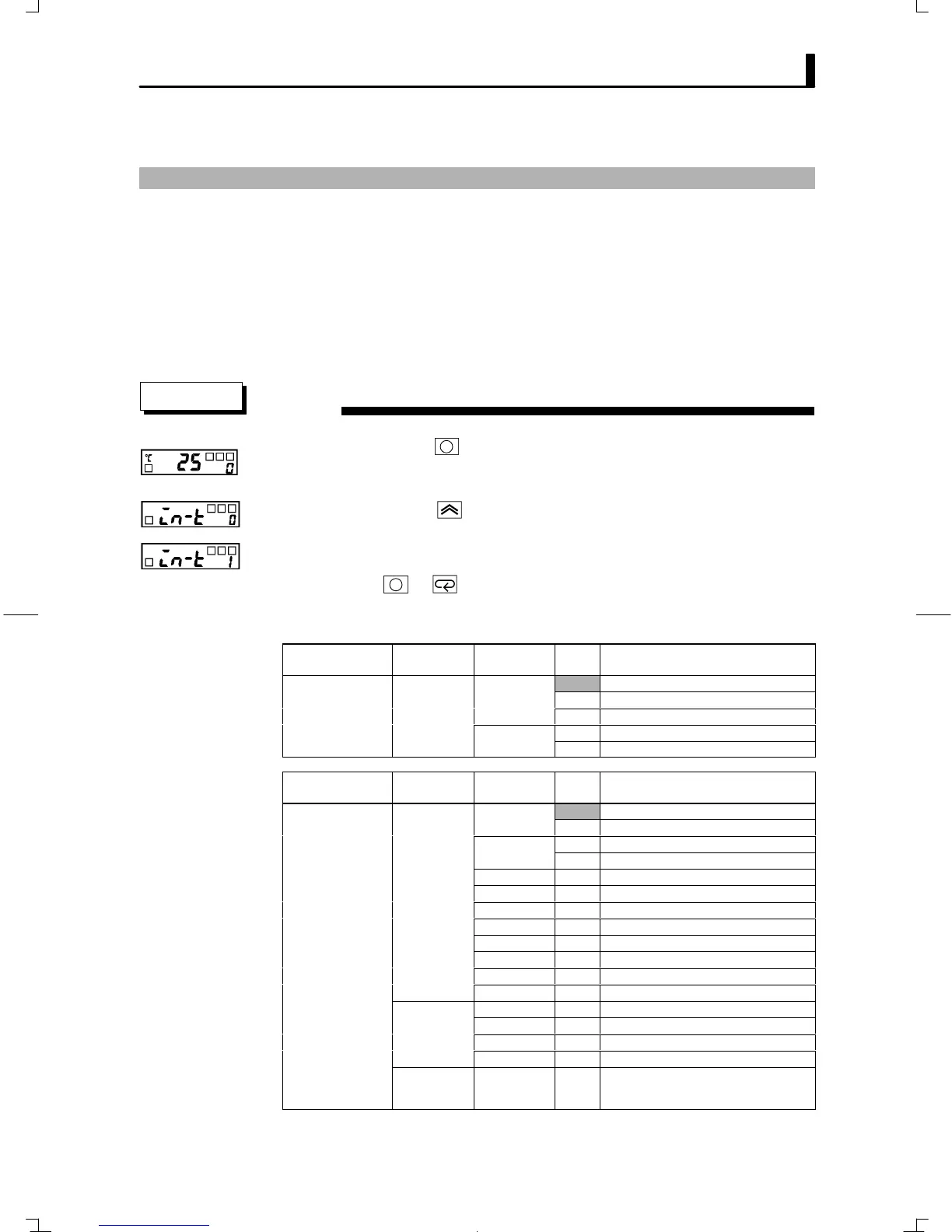

3.2 Setting the Input Type
The E5GN supports four input types: platinum resistance, thermocouple,
nonĆcontact temperature sensor and analog inputs. Set the input type
matched to the sensor connected to the E5GN in the input type" parameter.
The E5GN specifications support two types of inputs, platinum resistance
thermometer and nonĆcontact temperature sensor, thermocouple and anaĆ
log input," whose set values differ. Check the type of E5GN at purchase.
JInput type
Setting the input type thermocouple KĆ20.0 to 500.0_C".
(1) Press the key for at least three seconds to move from the operaĆ
tion level" to the initial setting level".
(2) Press the key to enter the set value of the desired sensor. When
you use K thermocouple (Ć20.0 to 500.0_C), enter 1" as the set value.
Hint: The set value is fixed if you do not operate the keys on the front panel
for two seconds after changing the parameter, or by pressing the
or keys.
List of Input Types
Input type Name
Set
Value
Input Temperature Setup Range
Platinum resistance Platinum Pt100 0 -200 to 850 (_C) / -300 to 1500 (_F)
thermometer resistance
1 -199.9 to 500.0 (_C) / -199.9 to 900.0 (_F)
input type thermometer
2 0.0 to 100.0 (_C) / 0.0 to 210.0 (_F)
JPt100 3 -199.9 to 500.0 (_C) / -199.9 to 900.0 (_F)
4 0.0 to 100.0 (_C) / 0.0 to 210.0 (_F)
Input type Name
Set
Value
Input Temperature Setup Range
Thermocouple Thermocouple K 0 -200 to 1300 (_C) / -300 to 2300 (_F)
input type
1 -20.0 to 500.0 (_C) / 0.0 to 900.0 (_F)
J 2 -100 to 850 (_C) / -100 to 1500 (_F)
3 -20 to 400.0 (_C) / 0.0 to 750.0 (_F)
T 4 -200 to 400 (_C) / -300 to 700 (_F)
E 5 0 to 600 (_C) / 0 to 1100 (_F)
L 6 -100 to 850 (_C) / -100 to 1500 (_F)
U 7 -200 to 400 (_C) / -300 to 700 (_F)
N 8 -200 to 1300 (_C) / -300 to 2300 (_F)
R 9 0 to 1700 (_C) / 0 to 3000 (_F)
S 10 0 to 1700 (_C) / 0 to 3000 (_F)
B 11 100 to 1800 (_C) / 300 to 3200 (_F)
Non-contact 10 to 70_C 12 0 to 90 (_C) / 0 to 190 (_F)
temperature
60 to 120_C 13 0 to 120 (_C) / 0 to 240 (_F)
sensor
115 to 165_C 14 0 to 165 (_C) / 0 to 320 (_F)
ES1A
160 to 260_C 15 0 to 260 (_C) / 0 to 500 (_F)
Analog input 0 to 50mV 16 One of the following ranges depending on
the results of scaling:
-1999 to 9999, -199.9 to 999.9
Shaded ranges indicate default settings.
Operation Procedure
Operation level
Input type
Initial setting level
