Omron FHV7 series User Manual

4-12

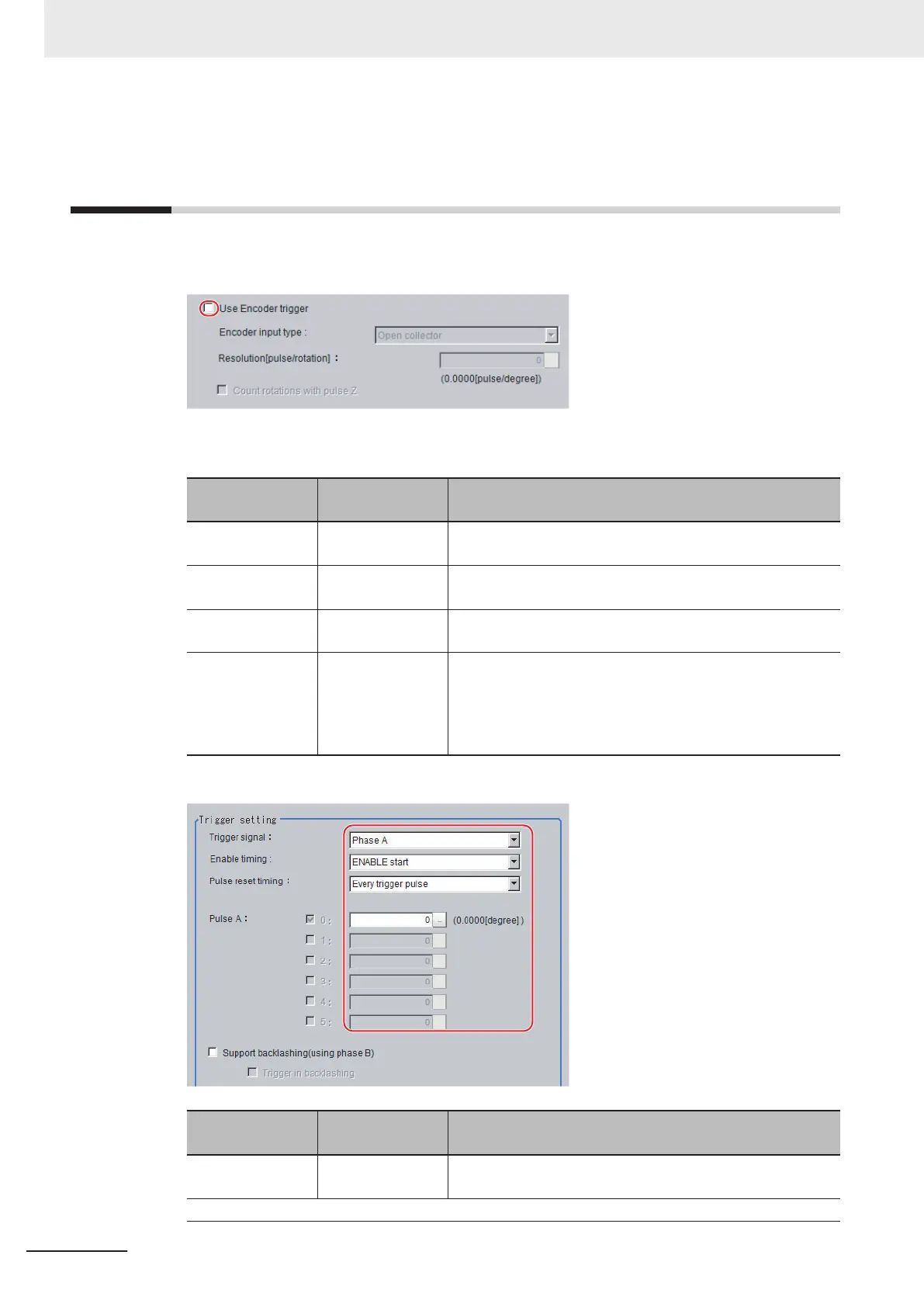

Setting Encoder Trigger [Encoder
Trigger Setting]
1 In the Main Window, select System settings - Other - Encoder trigger setting from the Tool
menu.
2 Set the target encoder.
Item
Set value
[Factory default]
Description
Use encoder trig-
ger
• Checked
• [Unchecked]
Set whether to use an encoder trigger.
Encoder input type
• [Open collector]
• Line driver
Select the output format of the encoder to be connected.
Resolution [pulse/
rotation]
[1] to 65535 Set how many pulses equal one rotation. Set this parameter
according to the resolution of the encoder.
Count rotations
with pulse Z
• Checked
• [Unchecked]
When this is checked, pulse Z is used to determine whether
a full rotation is made.
When this is unchecked, a full rotation is determined by
whether the number of pulses on phase A has reached the
resolution of phase A.
3 Set the advanced settings for the trigger as necessary.
Item
Set value
[Factory default]
Description
Trigger signal
• [Phase A]
• Phase Z
Set the phase to use as the trigger signal.
Phase A
4 Setting the Controller
4 - 50
FH/FHV Series Vision System User’s Manual (Z365-E1)
