Precautions for Correct Use
Extended window parts have the following restrictions.
• You can not place multiple extended window parts with the same name within a single layout.
• Extended window parts can only be used in standard mode and multi-line random trigger
mode. These will not operate during double speed multi-input mode and non-stop
adjustment.
For details, refer to4-4-1 Setting the Operation Mode on page 4 - 11.
Extended window parts that can placed are as follows. You can place the following panes anywhere
on a single layout.
Pane Name displayed when a pane is added
Data grid window MDI_DataGrid.dll
Login account display window MDI_DispLoginUser.dll
Settings dialog box display button window MDI_DispSetupBtn.dll
Text display window MDI_DispText.dll
Custom dialog display button window MDI_ExecuteBtn.dll
Macro trigger window MDI_McrTrigger.dll
Message box display window MDI_MsgBox.dll
Numerical value input window MDI_NumBox.dll
Data settings button window MDI_SetDataBtn.dll
Simple data grid window MID_SimpleDataGrid.dll
8-3-15

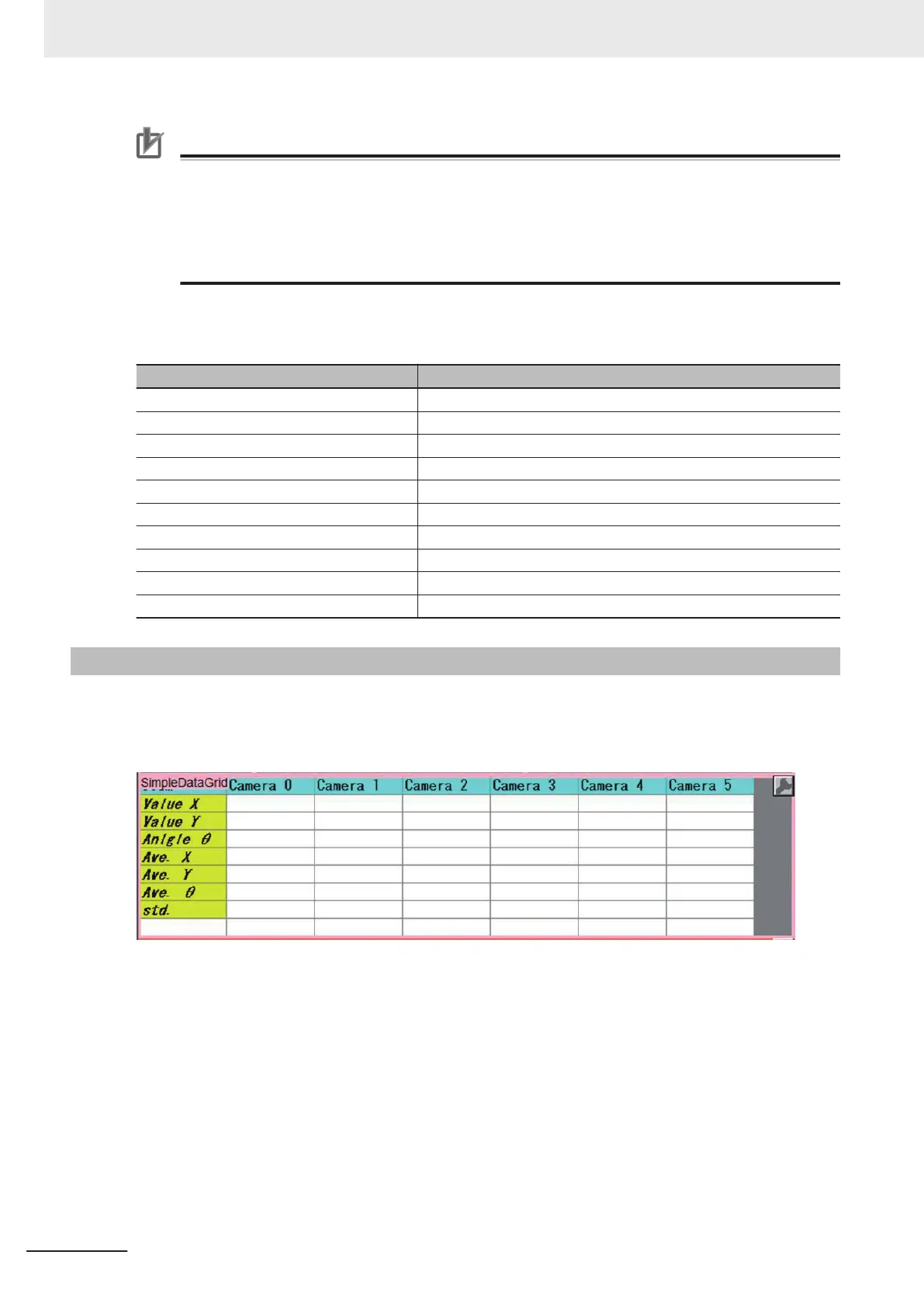

Data Grid Window (MDI_DataGrid.dll)
This function can not be used with the FHV series.
Window part that is displayed on the main screen as a table using a macro, such as measurement
results of a processing unit.
This comprises the following elements.
• Data grid:
Details that can be set are as follows.
8 Setting Windows
8 - 38
FH/FHV Series Vision System User’s Manual (Z365-E1)
