Example of a Scene
The processing items registered to a scene are called processing units. In the edit flow window where
you create scenes, select the processing items required for measurement and add them to the flow.
The number at the top of the processing unit is called the unit number. When the measurement trigger
is input, processing is executed in the order of the processing unit numbers.
Processing unit
numbers

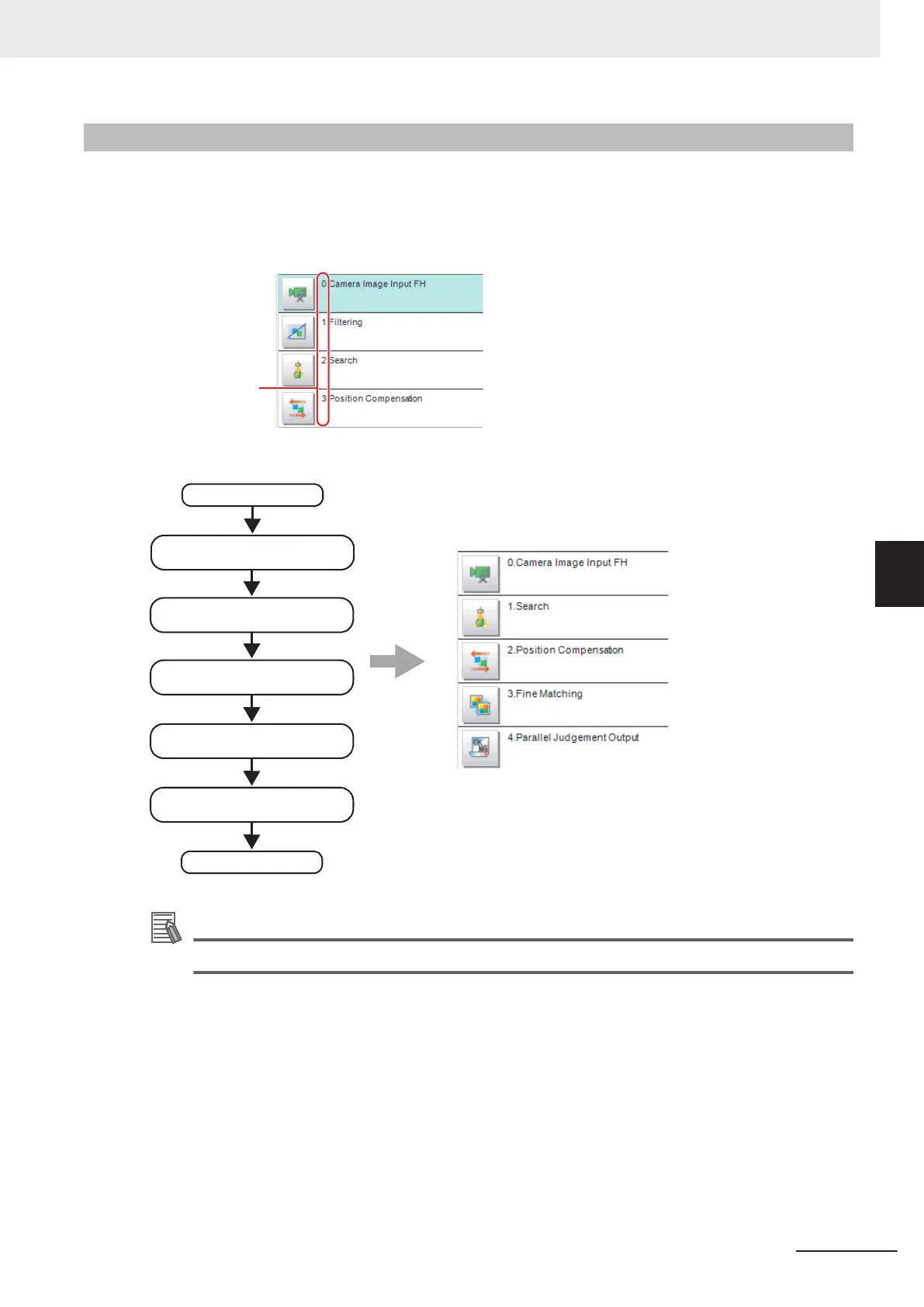

Example: Normal Measurement
Capture image from Camera.
Perform position compensation.
Check for defects.
Output measurement results to external device.
START
END
0
2
3
4
Identify the shape.
1
Visual Representation
Additional Information
By default, a Camera Image Input or Camera Image Input FH processing item is set for unit 0.
5 Creating Measurement Scenes
5 - 3
FH/FHV Series Vision System User’s Manual (Z365-E1)
5-1 What Is a Scene?
5
5-1-1 Example of a Scene
