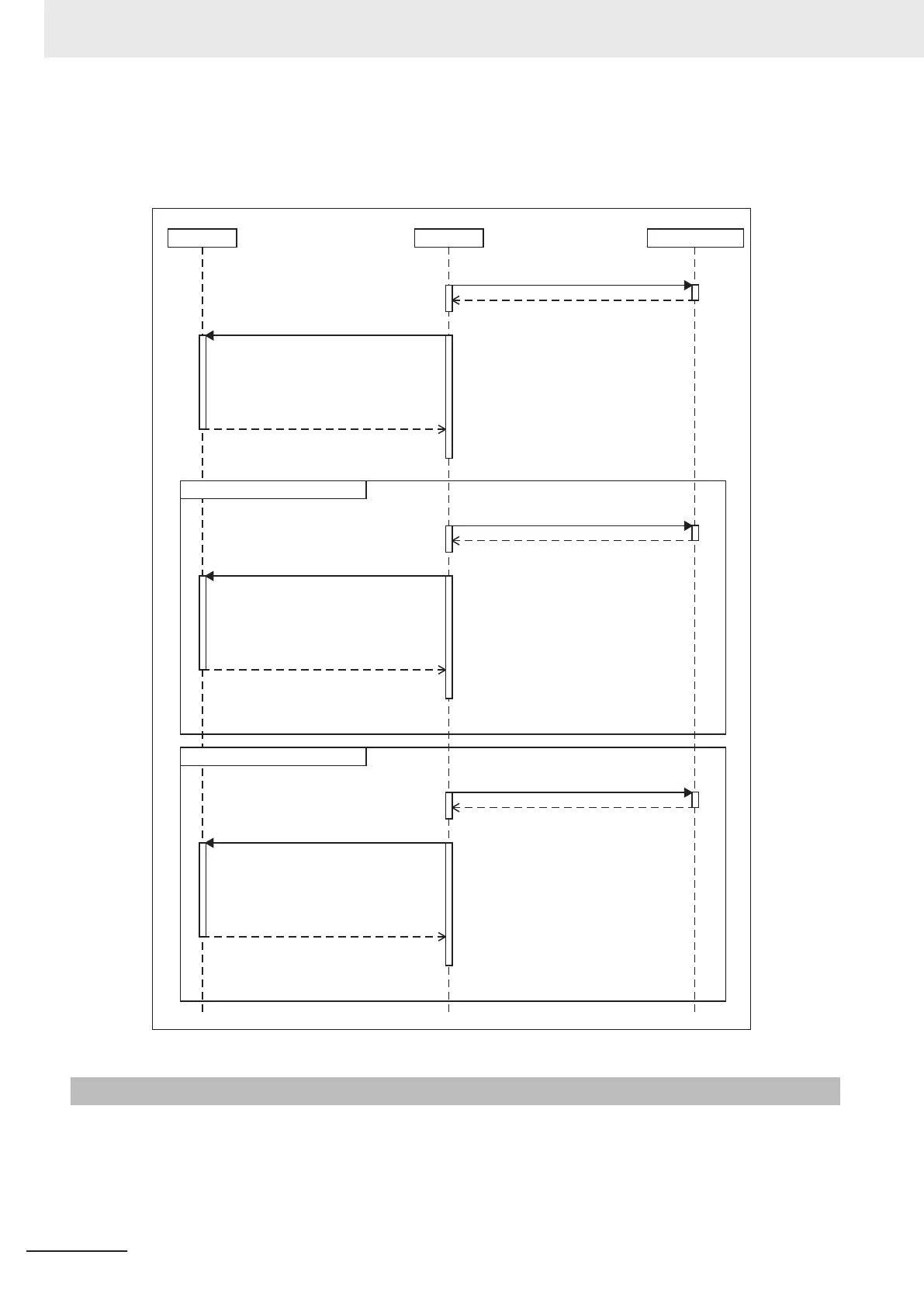

• Easy Mode:
The Calibration Execution Flag and movement in actual coordinates must be set in advance in the
PLC Master Calibration settings dialog box.
FH/FHV PLC External device
2: Execution of the measurement command
Loop (Iterations ≤ Number of parallel movements)
4: Execution of the measurement command
Loop (Iterations ≤ Number of rotations)
6: Execution of the measurement command
1: An origin return is performed, and the calibration
workpiece is moved to the reference position.
3: Perform a parallel move of the calibra-
tion workpiece by the required amount.
5: Rotate calibration workpiece the
required amount.
10-9-3
Troubleshooting
10 Advanced Usage
10 - 60
FH/FHV Series Vision System User’s Manual (Z365-E1)
