Omron FHV7 series User Manual

l

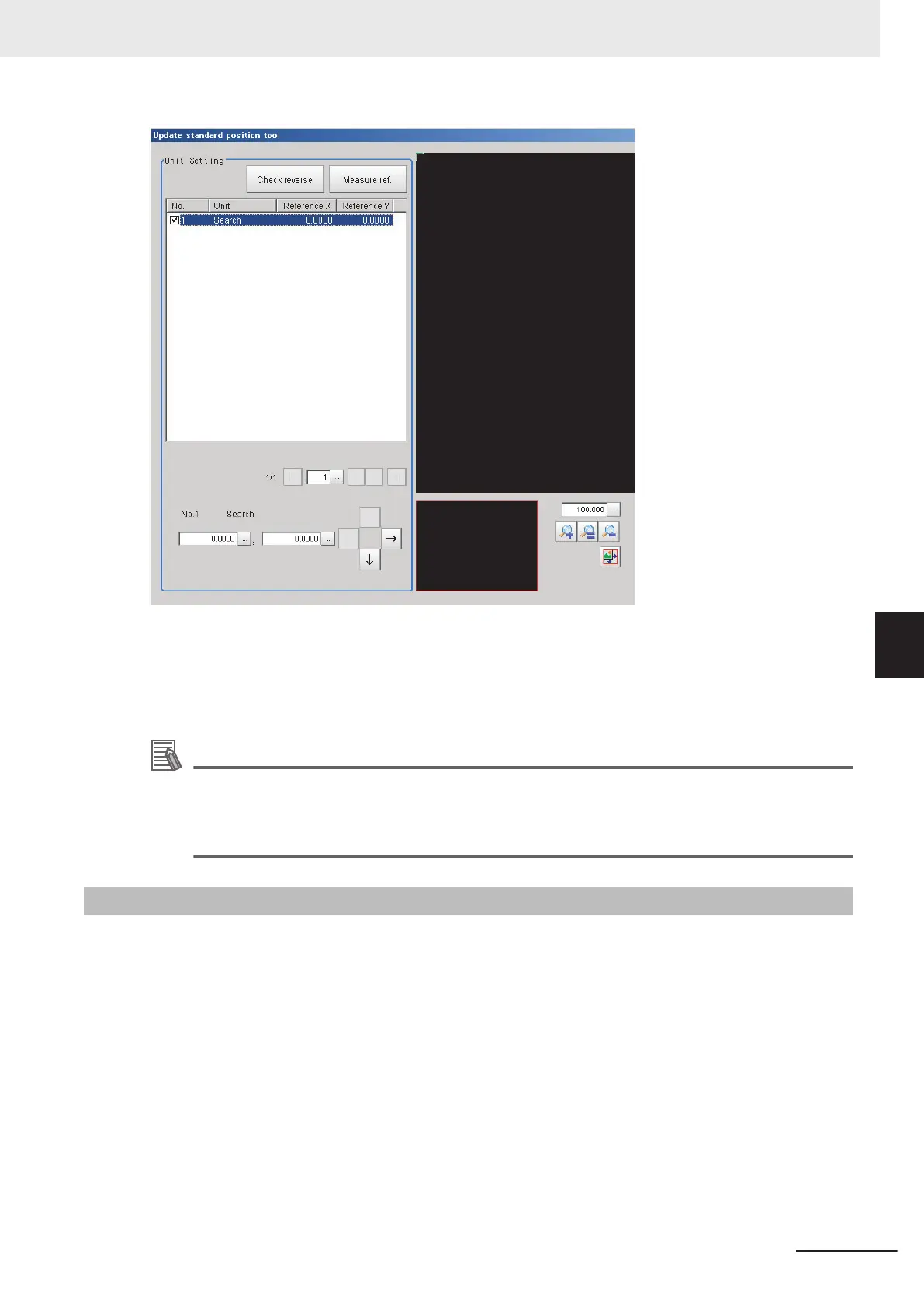

To Cancel Updating
Click the Cancel button. You can return the reference positions to the values that were in effect
before you opened this tool.
Additional Information
Most of the measurement items automatically update their reference positions when the model
or measurement area is changed. If you need to change the reference position after it is updat-
ed, place the workpiece in the desired position, and then update the reference positions for all
measurement units that you wish to change in the measurement flow.
6-5-1
Monitoring Measurement Value Trends [Trend Monitor]
By monitoring the trends in measurement values, the occurrence of defects can be prevented in ad-
vance and this information can also be helpful in NG error occurrence cause analysis. Use the Trend
Monitor processing item to monitor the measurement values.
Refer to Trend Monitor in the Vision System FH/FHV Series Processing Item Function Reference
Manual (Cat. No. Z341).
6 Performing Measurement and Adjustment
6 - 35
FH/FHV Series Vision System User’s Manual (Z365-E1)
6-5 Updating the Reference Position Data for a Unit in the Measurement Flow [Update Stand-
ard Position Tool]
6
6-5-1 Monitoring Measurement Value Trends [Trend Monitor]
