5-2

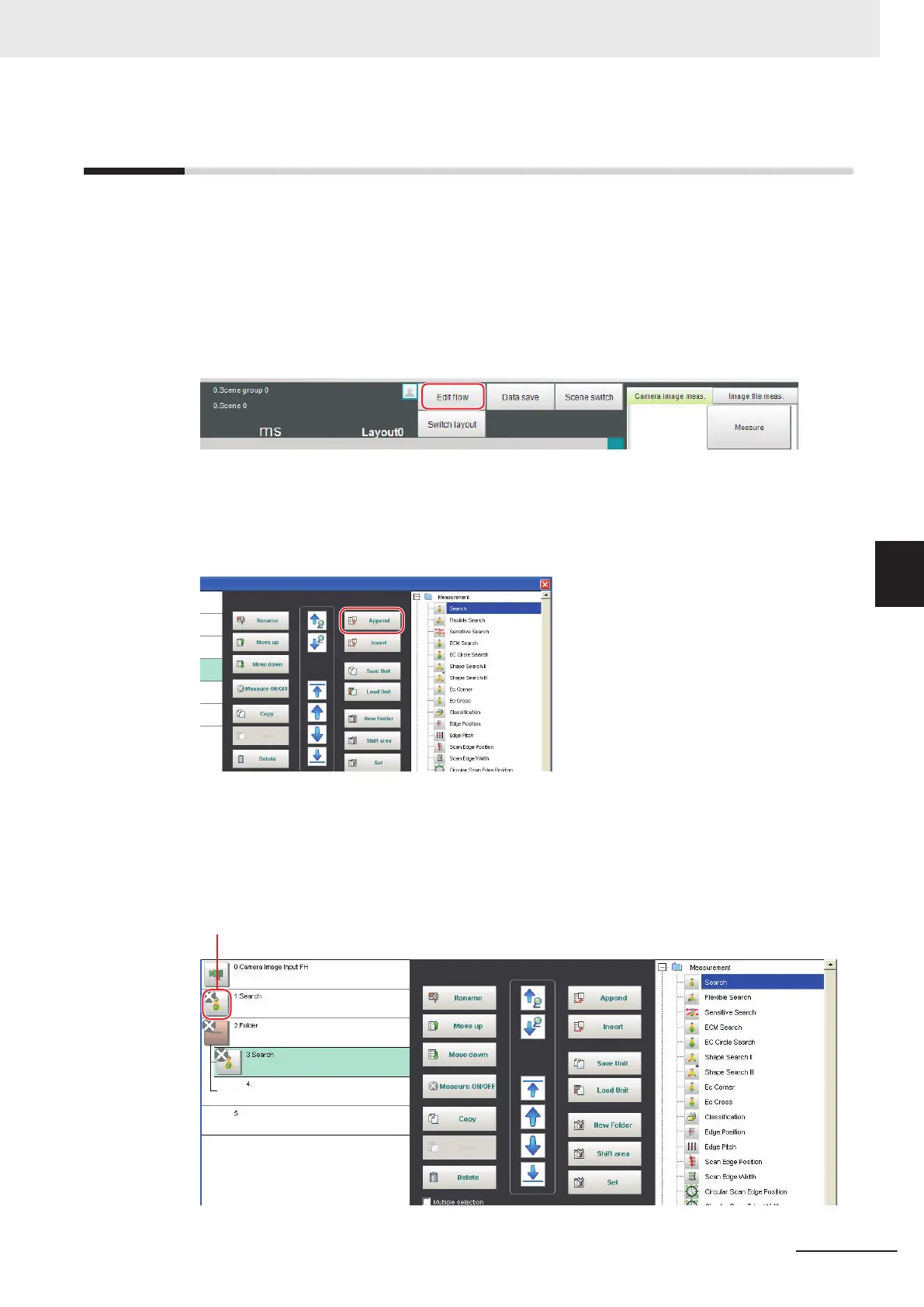

Creating a Scene
This section explains how to add processing units to a scene.
1 In the Main Window (layout 0), display the scene to edit.
Refer to 7-2 Switching the Scene or Scene Group on page 7 - 3.
2 Click the Edit flow button.
The edit flow window is displayed
3 Select the processing item to add from the processing item tree.
4
Click the Append button.
The selected processing item is added at the bottom of the unit list (flow).
5
Add another processing unit if necessary. Repeat the steps after 3.
6
Either click the icon of the processing unit to be set or click the Set button.
Property setting buttons
5 Creating Measurement Scenes
5 - 5
FH/FHV Series Vision System User’s Manual (Z365-E1)
5-2 Creating a Scene
5
