9-9

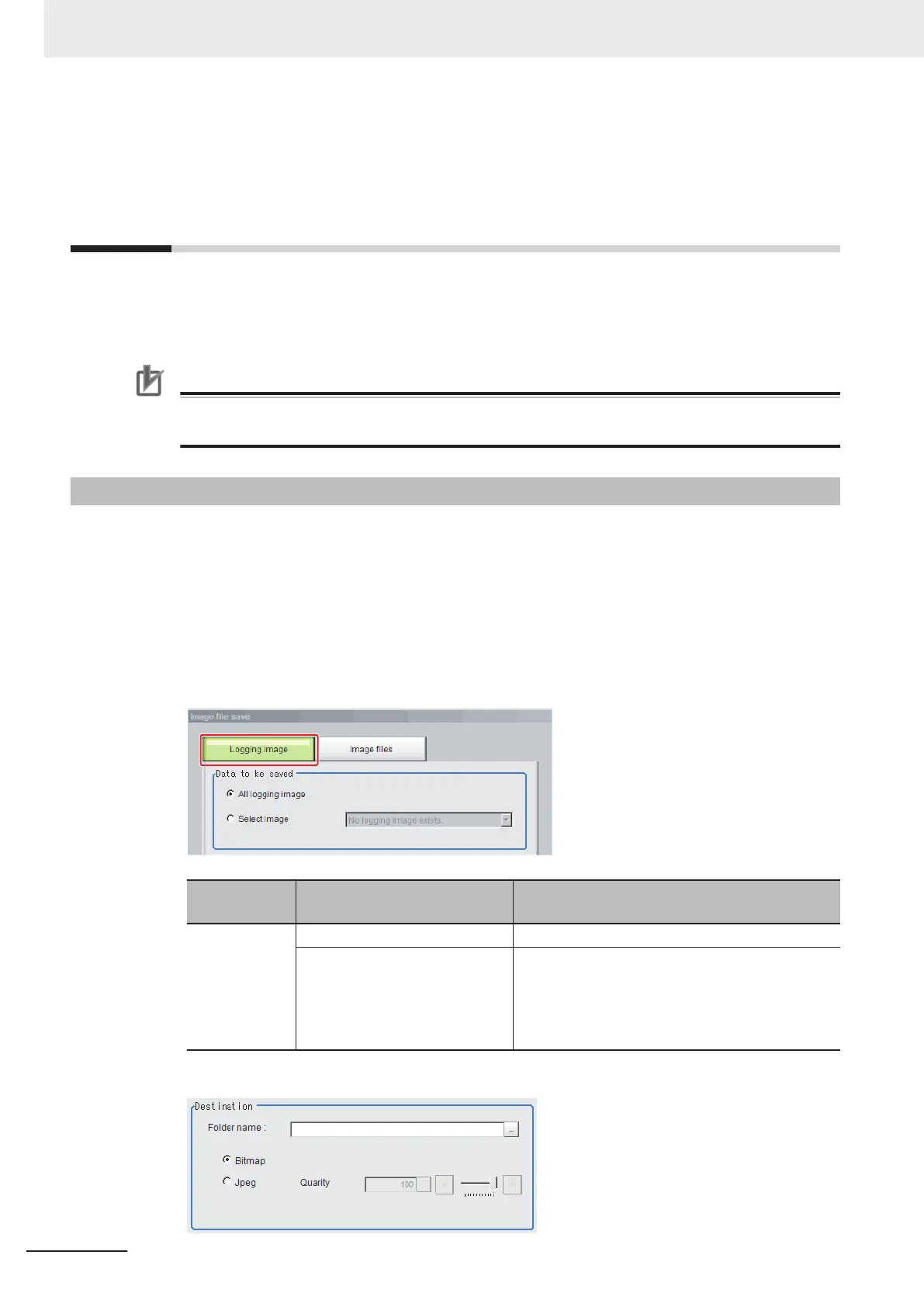

Saving Image Files to a RAMDisk or
an External Storage Device [Image
File Save]
This section describes how to save logged images and image files that are saved in the Controller to a
RAM disk or external memory device in the Controller. The storage format (bitmap or Jpeg) can be
specified when the images are saved.
Precautions for Correct Use
During saving, do not restart, turn OFF the power supply, or remove the external storage de-
vice. The data may be corrupted.
9-9-1
Saving Logging Images
1 When saving data to external storage, insert the external storage device into the Sensor Con-
troller.
2
In the Main Window, select Image file save from the Tool menu.
The Image file save dialog box is displayed.
3
Click Logging image and select the file to save.
Item
Setting value
[Factory default]
Description
Data to be
saved
[All logging image] All logged images are saved.
Select image The selected logged images are saved.
Click ▼ to select the image to save.
When Latest measurement - logging image is
selected, the save file name will be
LoggingImage000.ifz.
4 Specify the destination folder name and file type.
9 Saving/Loading Data
9 - 46
FH/FHV Series Vision System User’s Manual (Z365-E1)
