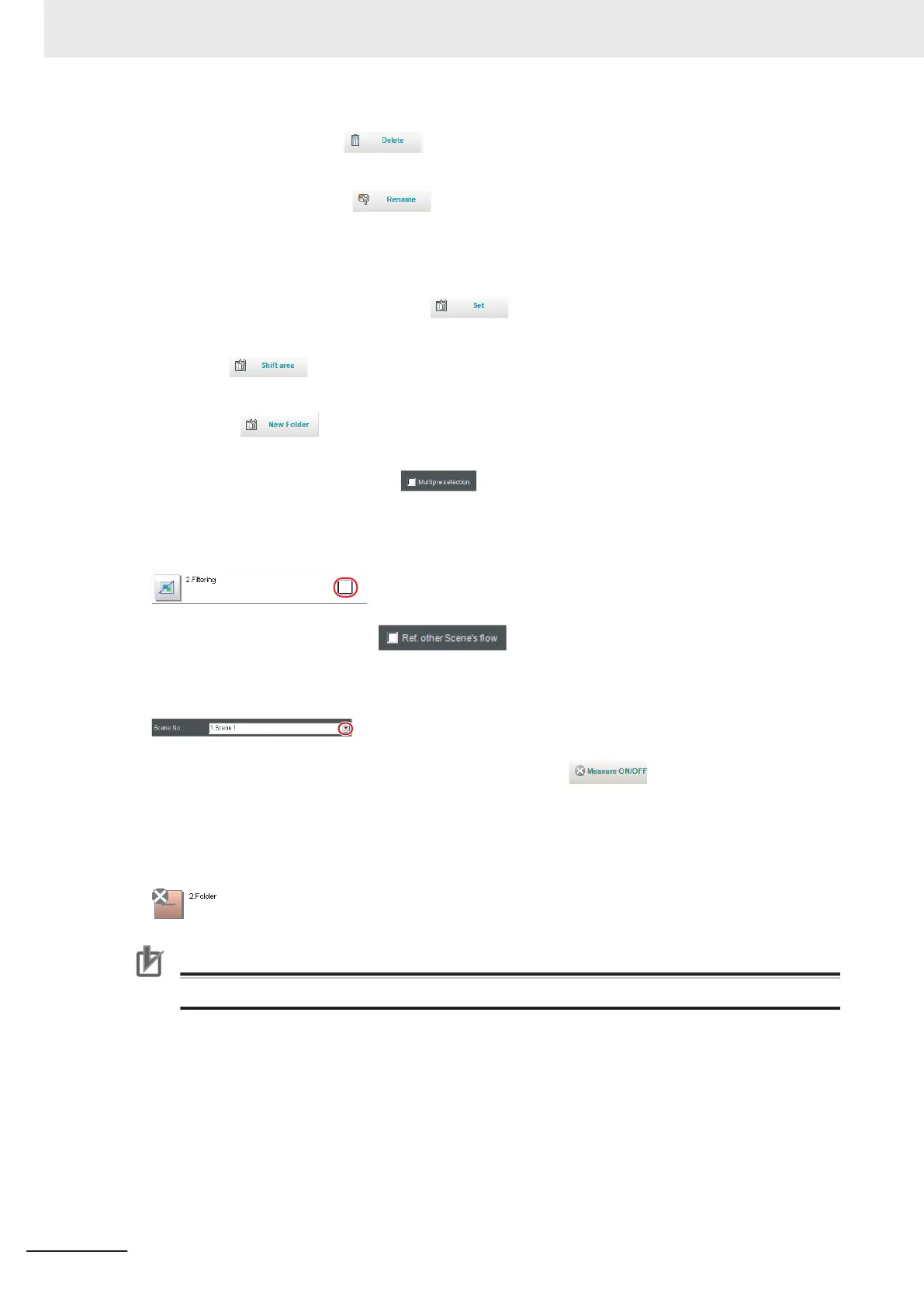

• Deleting a Processing Unit ( )
Deletes a processing unit from the scene.
• Renaming Processing Units ( )
Renames a processing unit in the scene. Unit names must begin with a character other than ° (sem-
ivoiced sound symbol) and  (voiced sound symbol). Also, unit names cannot consist of only a single-
byte number, only a "+", or only a ".".
• Setting the Details of a Processing Unit ( )
Sets the properties of a processing unit in the scene.
•
Shift Area (
)
Changes the related figure data in one batch.
• New Folder ( )
Used when multiple processing units are managed as a group.
• Handling Multiple Processing Units ( )
Used when processing units are copied or deleted together. Click the Multiple selection button to
display the check boxes for the processing items. The selected processing units can be manipulated
as a group.
•
• Referring to Other Scene Flows ( )
Units in other scenes can be referred to and added to the current scene flow.
Selecting a scene to refer to displays the flow for that scene.
• Switching processing unit measurement execution ON/OFF ( )
You can switch off the processing unit within a scene so that measurement is not executed for indi-
vidual processing units. The processing unit that has been switched off cannot execute measure-
ment until switched on. Clicking the button toggles the measurement execution setting between ON
and OFF.
Precautions for Correct Use
Make sure to enable Measure for the image input processing unit for unit 0 before use.
5 Creating Measurement Scenes
5 - 8
FH/FHV Series Vision System User’s Manual (Z365-E1)
