2 Click a scene data to read.

3 Click OK.

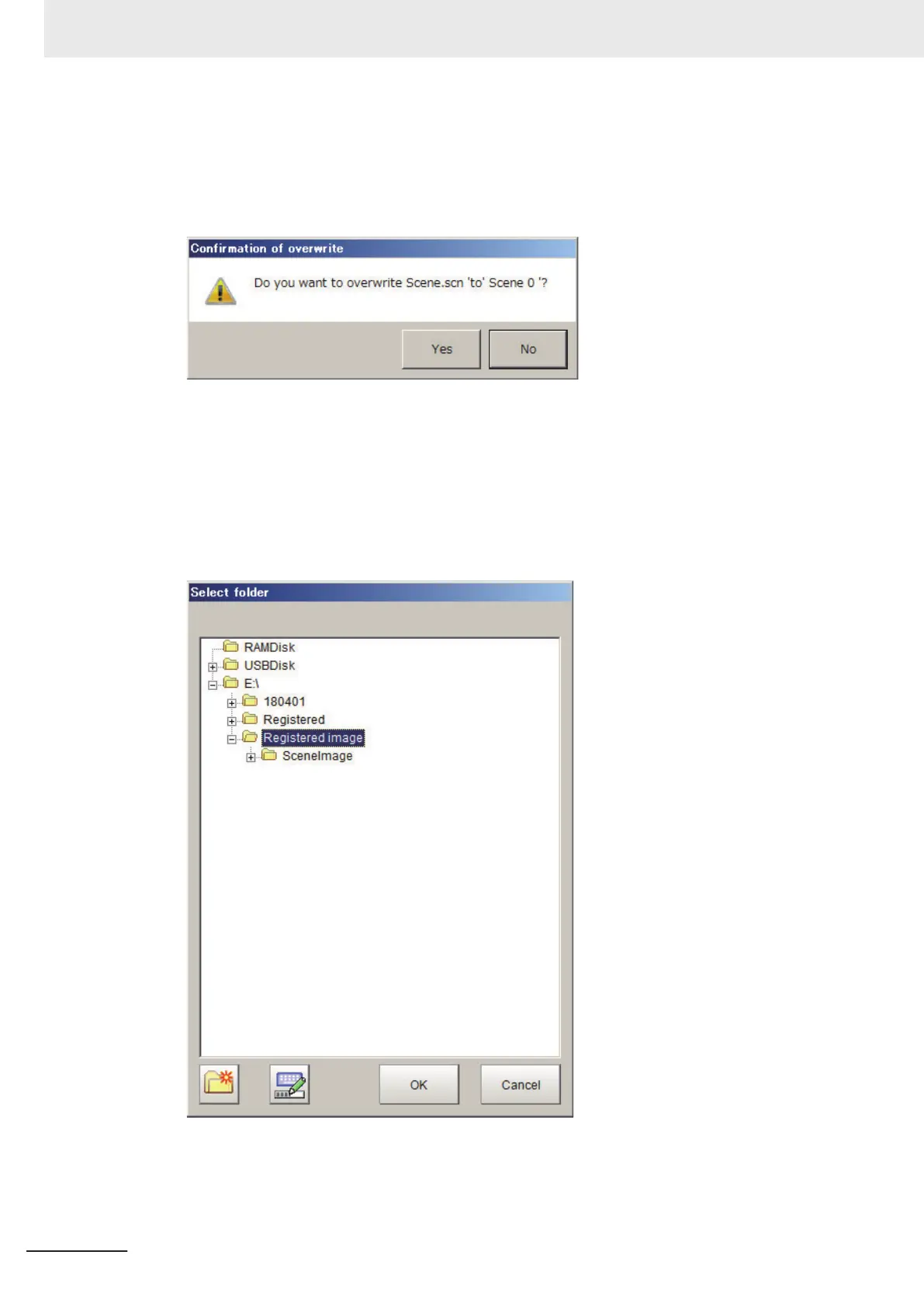

Confirmation of overwrite dialog box is displayed.

Click Yes.

Loading a scene data + registration image

1 Click Scene data + registration image.

Select folder dialog box is displayed.

2 Select a folder containing a scene data and registered images to load.

3 Click OK.

5 Creating Measurement Scenes

5 - 36

FH/FHV Series Vision System User’s Manual (Z365-E1)
