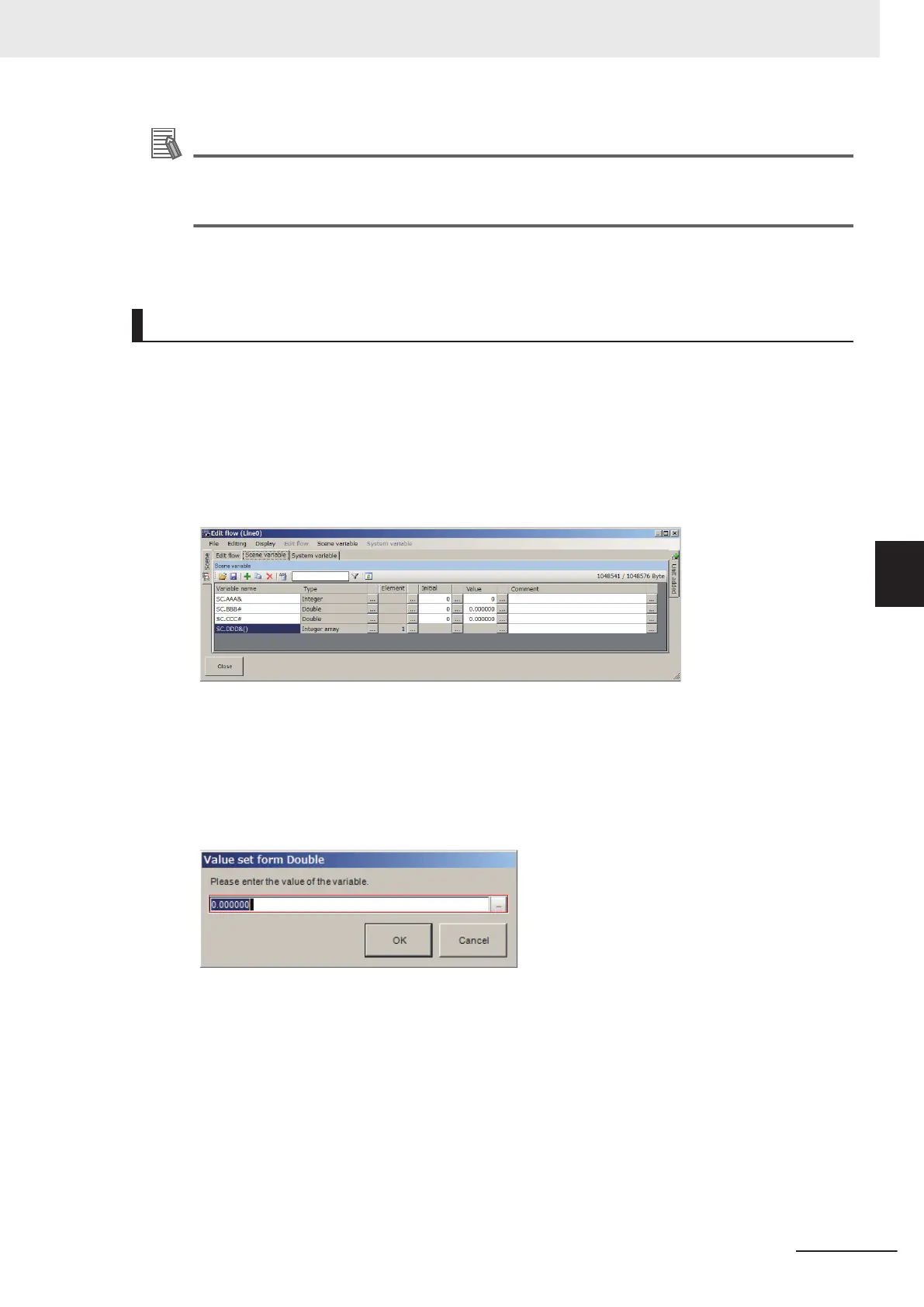

Additional Information
The following operation also enables initial values to enter into cells in the Value column.
• Drag the scroll bar of the Initial value set form dialog box for the three- or more dimensional
array type to find a cell to set the initial value. Click the cell to enter the initial value.
5 Click OK to end the input.
Editing Values
l
Non-array Type Variables:
1 On the Edit item tab area in the Edit flow tab screen, click Scene variable tab or System
variable tab.
The Scene variable tab screen or the System variable tab screen is displayed.
The following is an example of the Scene variable tab screen.
2 On the Variable list area, select a variable name to edit.
3 Click ... at the right of the Value column for the selected variable.
The Value set form dialog box is displayed. In the title bar, the type name currently set is dis-
played.
4 Directly enter a value into the input text box or click ... for it.
5 Click OK to end the input.
l
One- or Two-dimension Array Type Variables:
1 Click ... at the right of the Value column for the selected variable.
The Value set form dialog box is displayed. The following example is that the number of one-
dimensional elements is 2 and the number of two-dimensional elements is 5.
5 Creating Measurement Scenes
5 - 53
FH/FHV Series Vision System User’s Manual (Z365-E1)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-4 Using Variables
