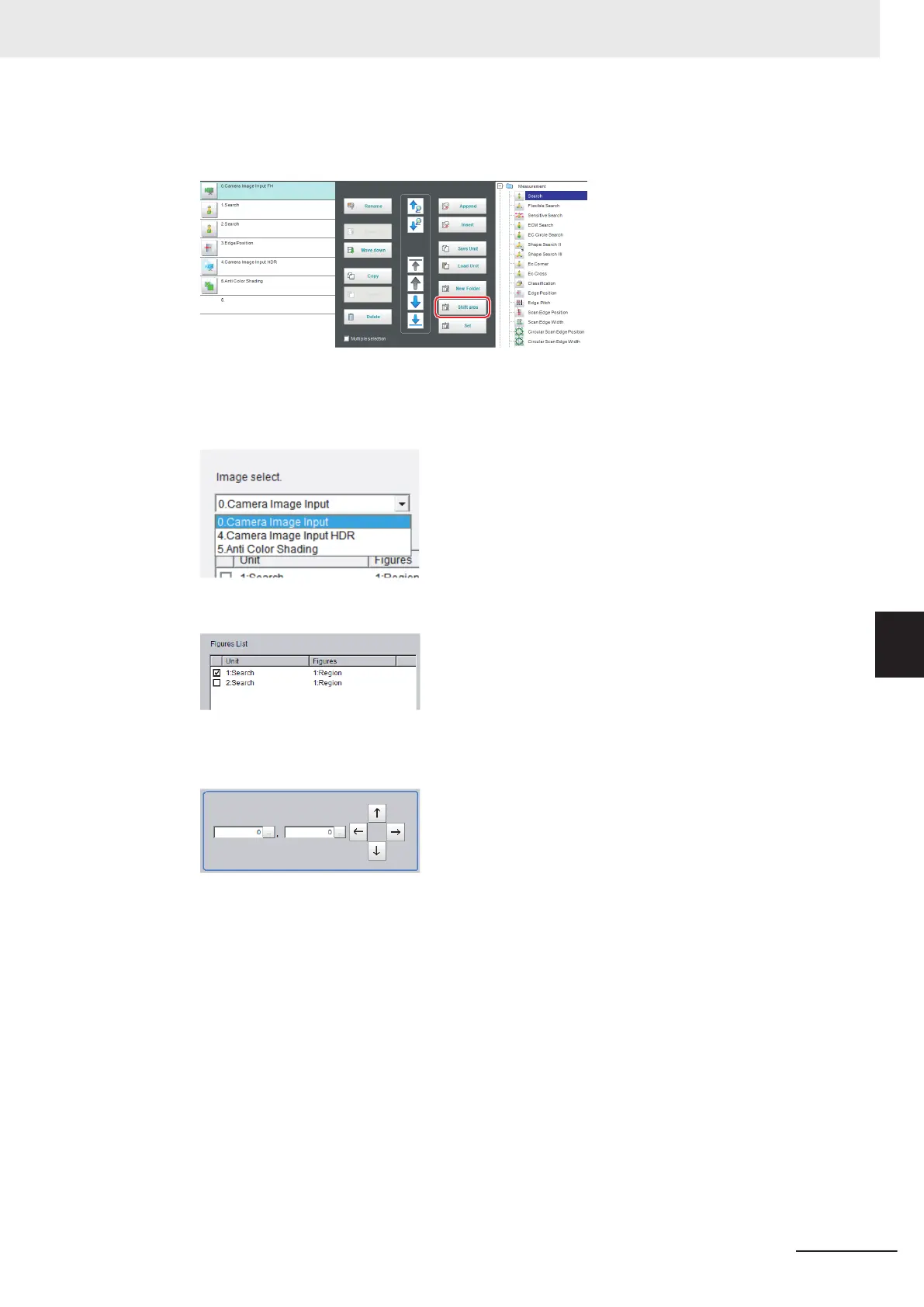

1 In the edit flow window, click the Shift area button.
The Shift area dialog box is displayed.
2 Select the processing item in which to change the region.
Only image setting processing items included in Input image and Compensate image are dis-
played.
3 Select the registration region to change.
4 Click Move and input the value or click the arrows to move the image.
Images can also be directly dragged to move them.
5
Click OK.
The change is registered
