Omron FHV7 series User Manual

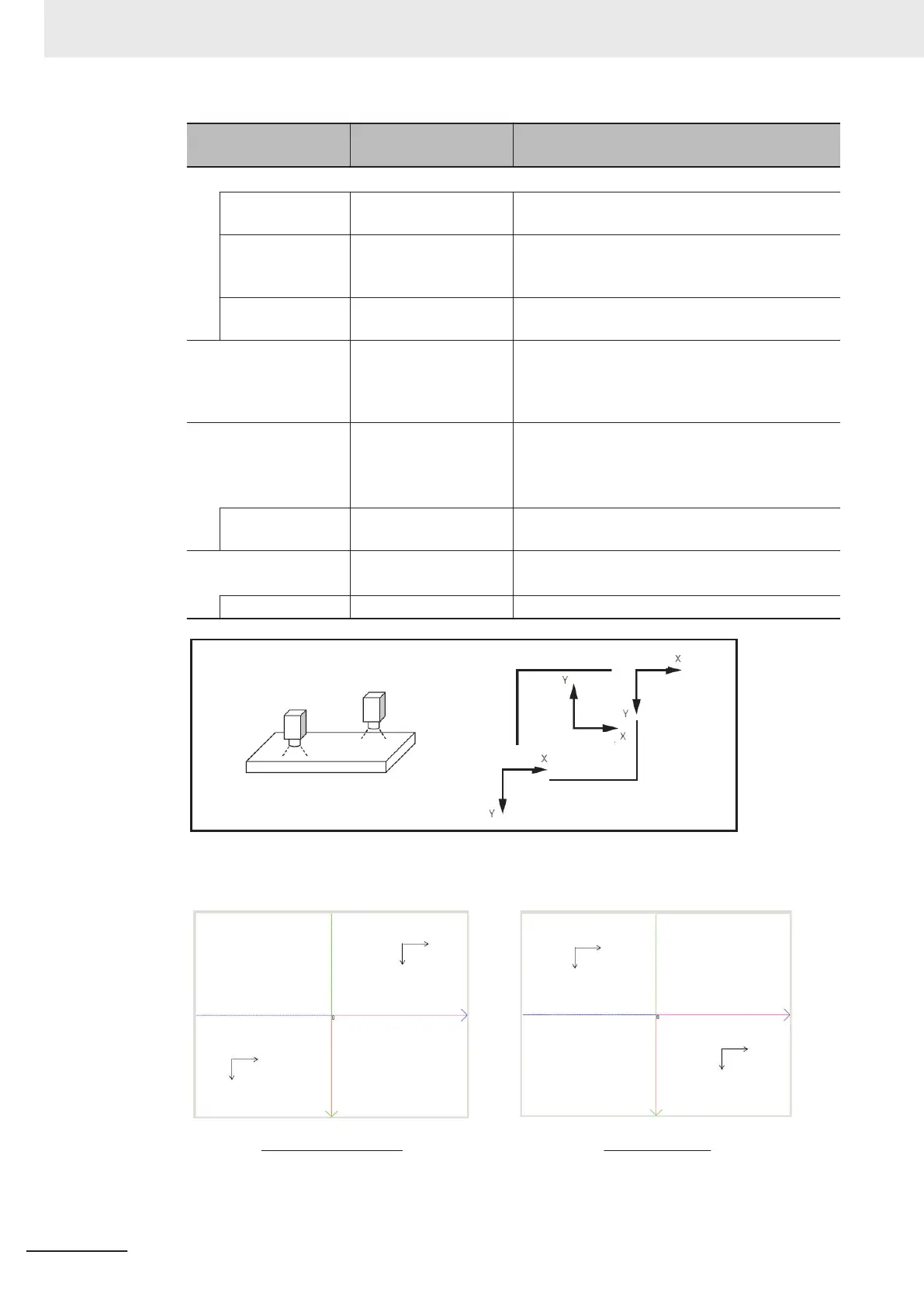

Item
Setting value
[Factory default]
Description
Calib. Data setting
Unit No. [None] Sets a processing unit number that holds the cali-
bration data.
Data No. 0 to the number of data
that the selected unit is
held.
Sets a calibration data number to display.
Calibration data Displays calibration data for graphical display tar-
get.
Graphic display area Graphically displays a camera coordinate system
and a real coordinate system. When the Point is
effective, the real coordinate X/Y is updated when
clicking the area.
Point
• Checked
• [Unchecked]
Displays the real coordinate data by pointing a
point on the area.
When the Point is checked, the point coordinate
setting is effective.
Calib. X/Y-axi -99999.9999 to
99999.9999
Sets X/Y coordinates for the cursor to be dis-
played on the area.
Data Interval 0 to 7 Sets two data numbers to calculate the origin in-
terval distance between the data.
Origin interval [0.000000] Displays the calculated distance above.
Camera 1
Camera 0
Stage
Camera 0
Camera 1
Stage coordinate
If cameras are arranged above, the position of the camera 0/1 are displayed on the area as
similar as the actual camera position. If not, then re-calibrate it.
Camera 1
Callibration succeeded
Camera 0
Callibration failed
Camera 0
Camera 1
6 Performing Measurement and Adjustment
6 - 44
FH/FHV Series Vision System User’s Manual (Z365-E1)
