Restoring a Layout to the Default Settings
1 Click Layout in the menu or right-click on the window part and select Layout 0 from the drop-
down menu or shortcut menu displayed.
2
Select the layout number to restore to its default settings
3
Click Layout in the menu or right-click on the window part and select Layout modification
from the dropdown menu or shortcut menu displayed.
Layout modification dialog box is displayed.
4

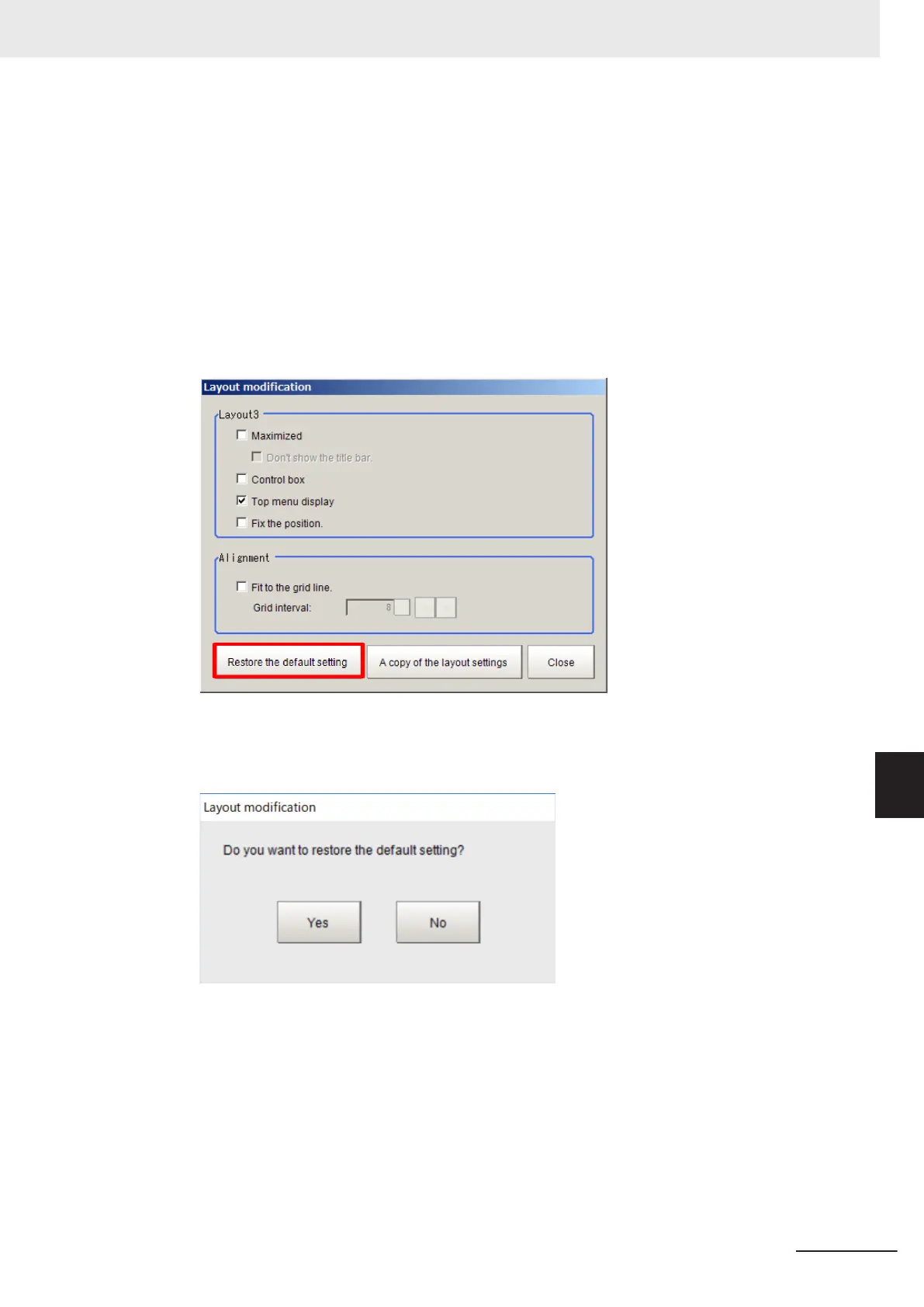

Click Restore the default setting.
Layout modification message box is displayed.
5
Click Yes.
The window with the selected layout number restores to the default settings.
l
Exiting Layout Modification Mode
1 Click Layout in the menu or right-click on the window part and select Layout ended from the
drop down menu or shortcut menu displayed.
Close Layout Modification Window and return to the Main Window.
