(a)
(h)
(b) (c) (B) (d)
(e)
(f)
(g)
(A) (C)

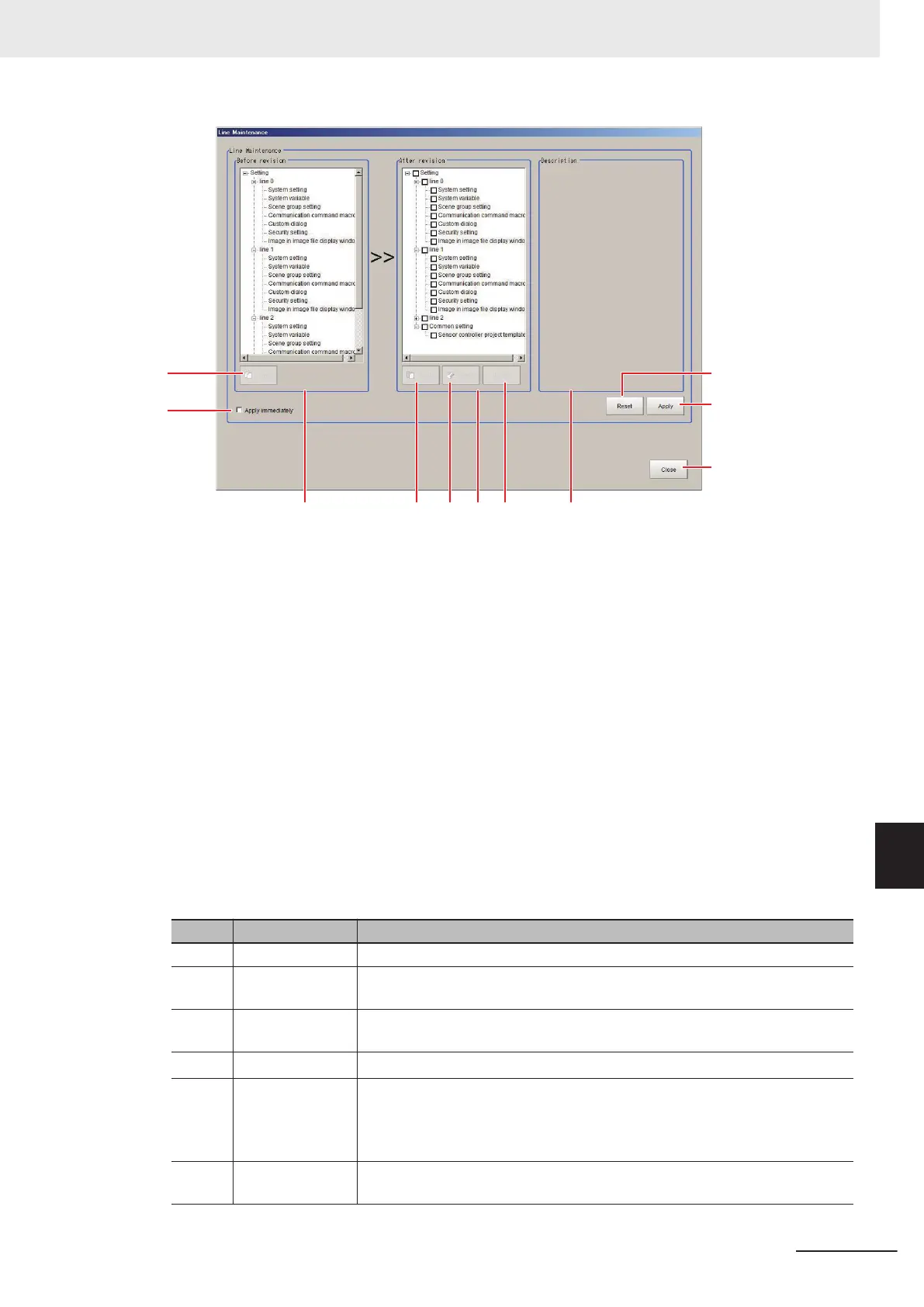

• (A) Before revision area:
The area for selecting setting data to copy. Display line settings data for Multi-line random-trigger
mode.
• (B) After revision area:
Selection area for settings data to Paste/Clear. The line settings data for the lines set in Multi-line
random-trigger mode will display.
• (C) Description area:
The area where a description of the settings data is displayed. Clicking on the settings in either the
Before revision area, or the After revision area will display the settings data.
• (h) Apply immediately:
There are some functional limitations when Apply immediately is selected. The timing of when cop-
ied, or cleared settings data gets reflected in the sensor controller settings varies.
Refer to 9-8-3 Operating with Functional Limitations on page 9 - 41.
l
Button functions
An explanation of sensor controller button functions.
Buttons Description
(a) Copy The selected settings data in the Before revision area will be copied.
(b)
Paste
*1
The settings data copied from the Before revision area will overwrite the set-
tings data in the After revision area.
(c)
Clear
*2
The selected settings data in the After revision area will be re-initialized, or
deleted.
(d)
Undo
*2
All operations of Paste and Clear in After revision area are canceled.
(e)
Reset
*2
All operations executed in both the Before revision and After revision areas
will be erased. The settings will be restored to the time when the Line mainte-
nance tool was launched, or to the same as when the last Apply operation
was done.
(f)
Apply
*2
Copied, or cleared settings data will be applied immediately to the sensor con-
troller. Will not revert to the system state prior to applying the setting change.
