Precautions for Correct Use
• Use Data save for each line prior to launching Line Maintenance tool. Settings data for lines
which have not already had Data save performed can not be copied. The settings data for
line 1-7 will not be saved to sensor controller memory if Continue is selected.
• After loading a BKD file (System setting + Scene group 0 data), do not save the data. Launch
the Configuration copy function after restarting Sensor Controller without saving.
• After loading the change of system setting or INI file (system set data), save to the Sensor
Controller. restart the Sensor Controller, and then launch the Configuration copy function.
For details, refer to 9-6 Loading Settings Data from the Controller RAMDisk or an External
Storage Device to the Sensor Controller on page 9 - 13.
Additional Information
If you do not want to copy settings that have been modified, select Continue without save.
The pre-modified settings data will be copied.

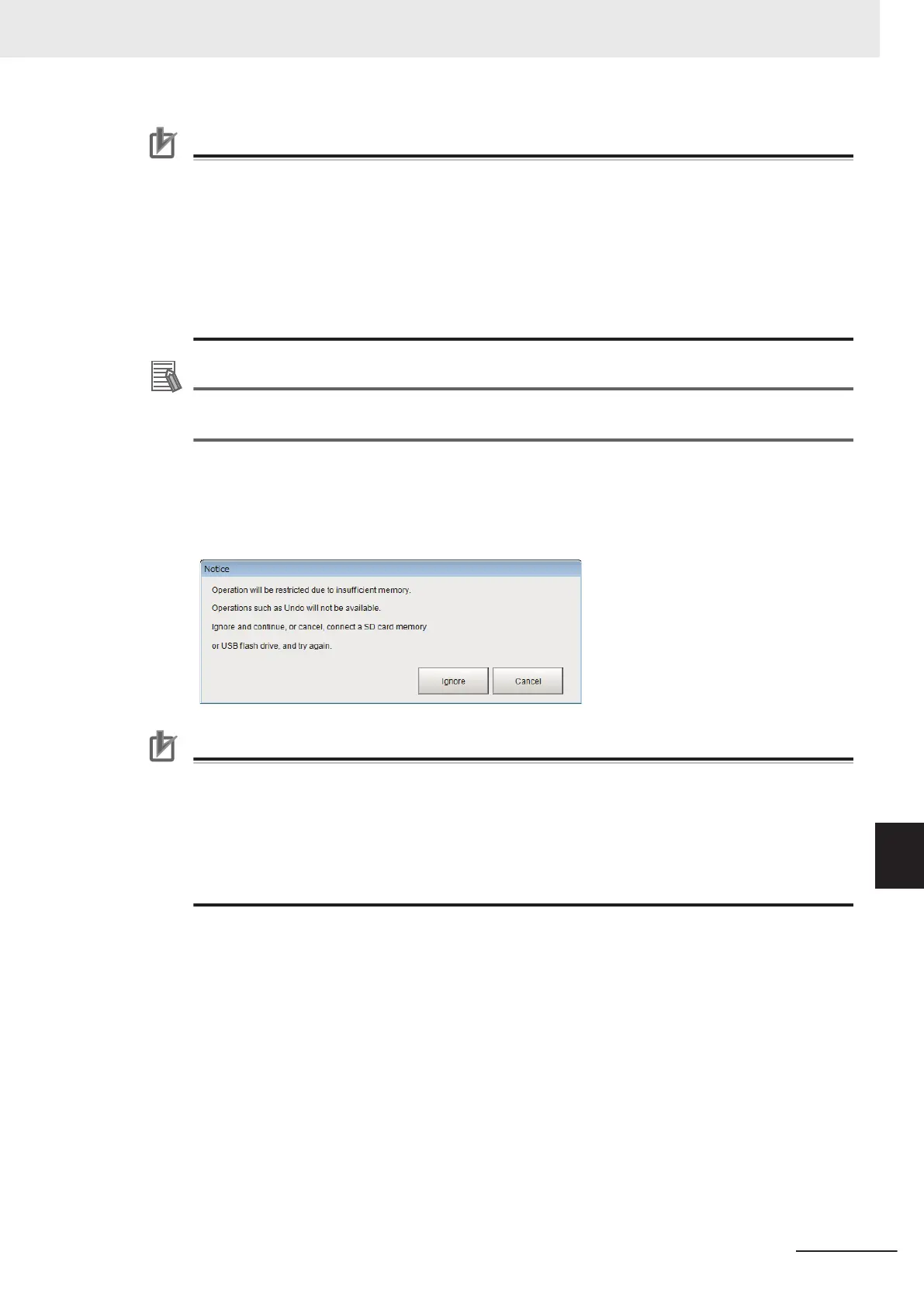

3 If there is insufficient sensor controller memory, the Caution screen will display.
If there is enough free memory, this screen will not display and you can proceed to Step 4.
Select Cancel and close the tool. Launch the Line Maintenance tool after connecting an exter-
nal memory device (2 GB, or higher recommended).
Precautions for Correct Use
• When copying, or clearing settings data that requires higher memory capacity, some func-
tions may be limited depending on the available sensor controller memory. It is recommended
that the sensor controller be connected to an external storage device prior to launching the
tool. (2 GB, or higher recommended)
• Do not disconnect the external storage device while using the Line Maintenance tool. Doing
so could corrupt the external storage device, or cause the sensor controller to not operate
normally.
If the Ignore button is selected, the Line Maintenance tool will be launched with the Apply
immediately check box checked. this will cause some function limitations. Be careful when
performing Clear, or Paste operations, as they will be applied immediately.
Refer to 9-8-3 Operating with Functional Limitations on page 9 - 41.
9 Saving/Loading Data
9 - 37
FH/FHV Series Vision System User’s Manual (Z365-E1)
9-8 Copying Settings for Each Line in Multi-line Random-trigger Mode [Line Maintenance]
9
9-8-2 Line Maintenance tool operations
