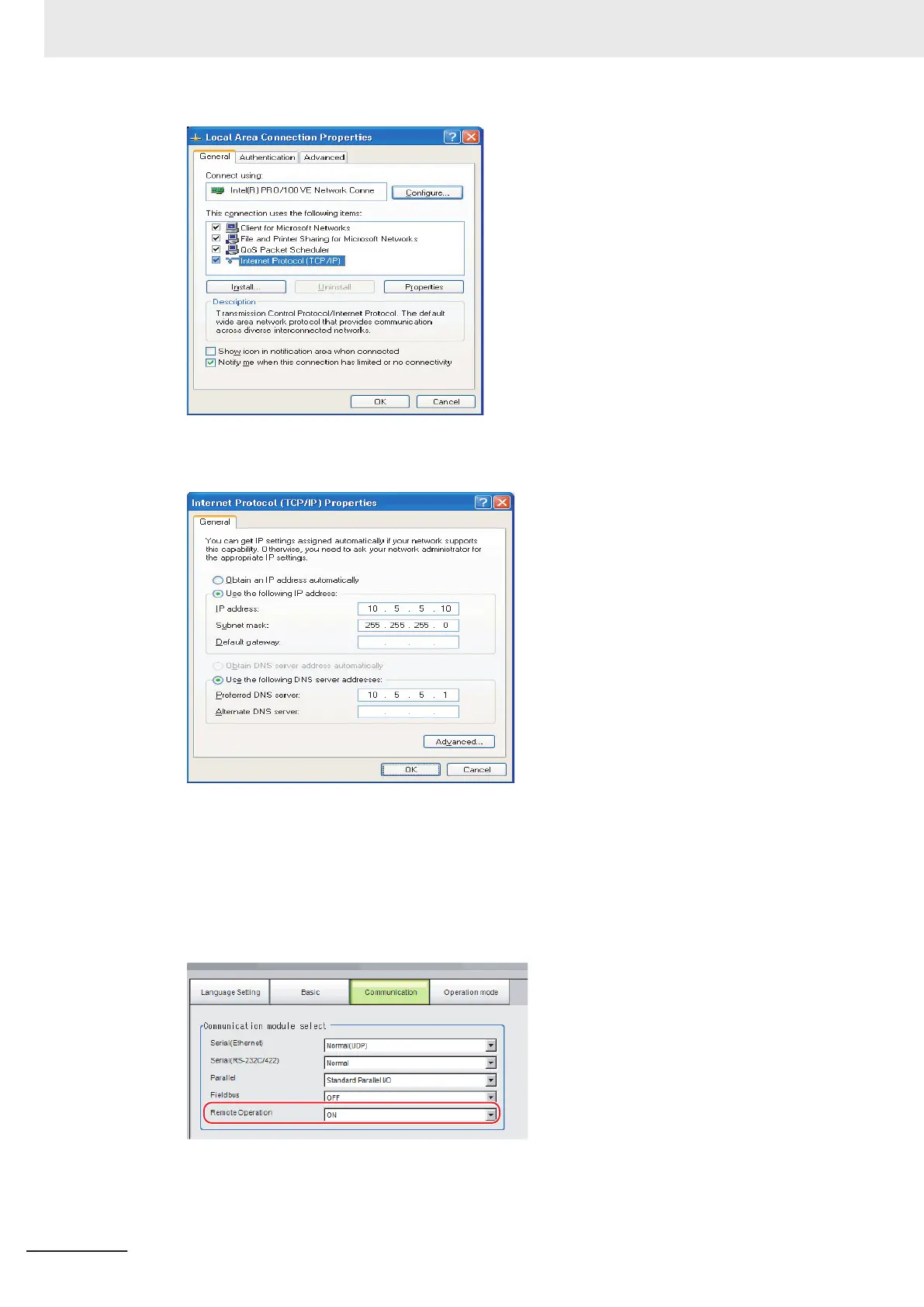

Input the IP address.

Network Settings for Sensor Controller (With Sensor Controller)

Enable the remote operation on the Communications Module Setting and input the IP address.

1 In the Main window, select System settings - Startup - Startup setting from the Tool menu.

Select ON for the Remote Operation in the Communication module select area.

10 Advanced Usage

10 - 6

FH/FHV Series Vision System User’s Manual (Z365-E1)
