5 Insert a processing item between two Multi-trigger Imaging Tasks.
Select a Multi-trigger Imaging Tasks that is placed just under the Multi-trigger Imaging Tasks to
which a processing item is added. Click a processing item to add, and then click the Insert
button.
Example: Inserting Search processing item

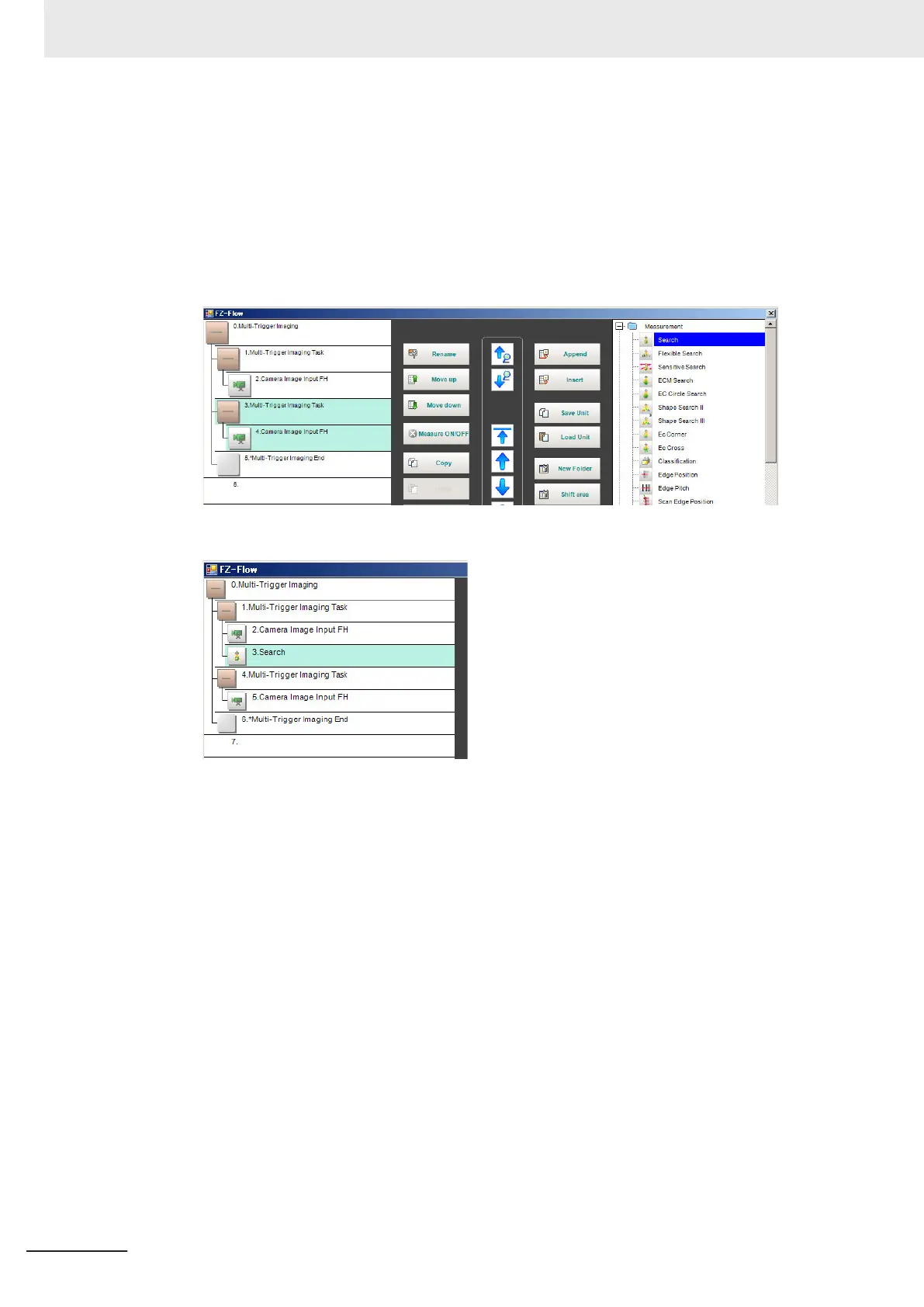

• Before clicking the Insert button:
• After clicking the Insert button:
The Multi-trigger Imaging processing item is the parent, and everything up to the Multi-trigger
Imaging End processing item is a child.
Additionally, the Multi-trigger Imaging Task processing item is the parent, and everything up
to the step just before the next Multi-trigger Imaging Task processing item or the Multi-trigger
Imaging End processing item is a child.
The Multi-trigger Imaging End processing item is not displayed in the list of items. (It is regis-
tered as a set with the Multi-trigger Imaging processing item).
l
Precautions on Flow Editing
• Editing operations on Multi-trigger Imaging blocks and task blocks, such as register, move, de-
lete, copy, and paste, and unit save and load operations, are performed on the Multi-trigger
Imaging block as a group.
• You cannot delete a Multi-trigger Imaging End processing item by itself. If it is deleted, an error
dialog will be displayed.
